Adhesive Mount GSM 3G/4G LTE Embedded Dipole PCB Antenna MCX Connector 65x15mm

SKU: AICP006 Categories: FPC Antennas, Internal Antennas Tags: 2G/3G LTE, 4G LTE, LPWAN, NB-IoT Brand: ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 60.63%
Cable: RG137 , L: 200 mm
Connector: MCX

Compact Embedded Design: Small 65x15x0.8 mm footprint and light weight 3 g PCB antenna for seamless integration in IoT devices, embedded modules, and industrial sensors.

High-Performance LTE/Cellular Connectivity: Supports LTE, 3G/4G cellular networks, providing stable communication for M2M, smart city, and smart agriculture applications.

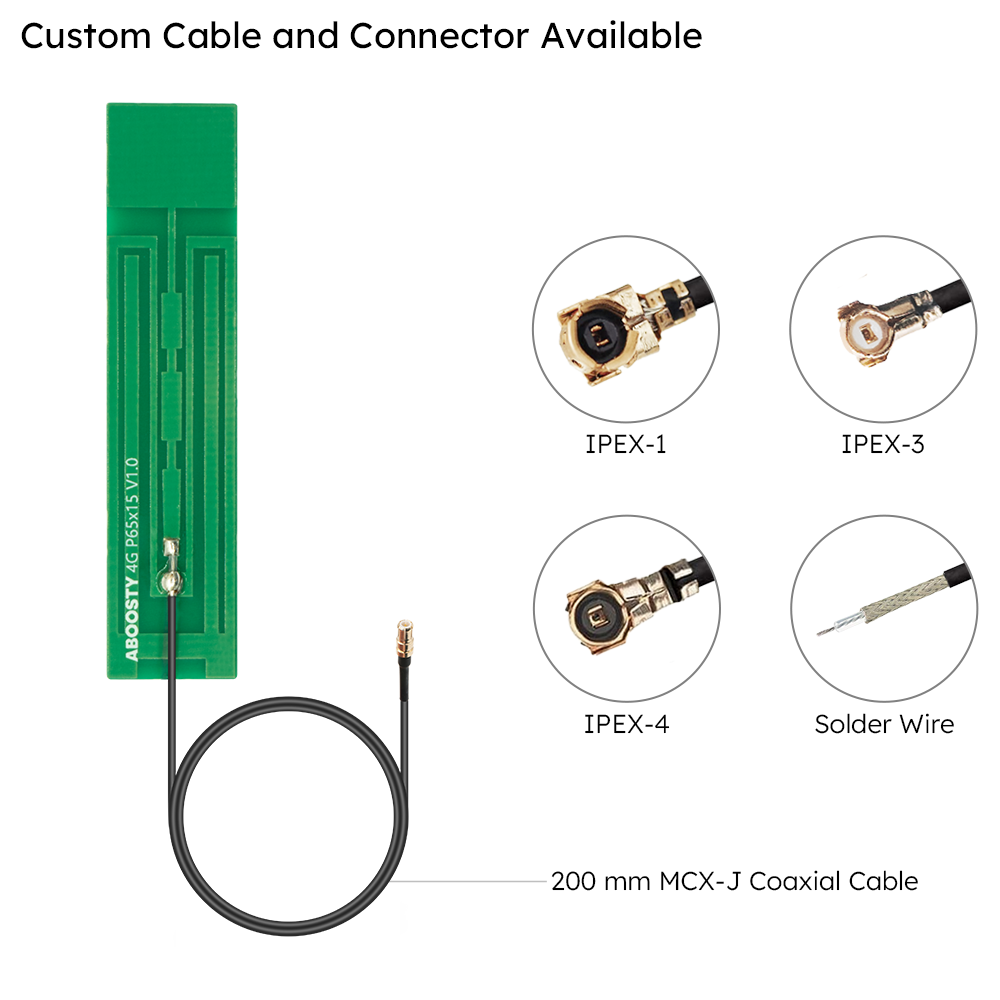

Pre-Attached MCX Connector: Comes with RG 1.37 black coaxial cable (200 mm), customizable for various IoT and industrial installations.

Flexible Mounting Options: Designed for non-conductive surfaces, perfect for PCB integration in consumer electronics and industrial equipment.

Customizable cable and connector options with RoHS compliant

Versatile Applications: Suitable for smart meters, environmental monitoring, industrial automation, asset tracking, and embedded communication modules.

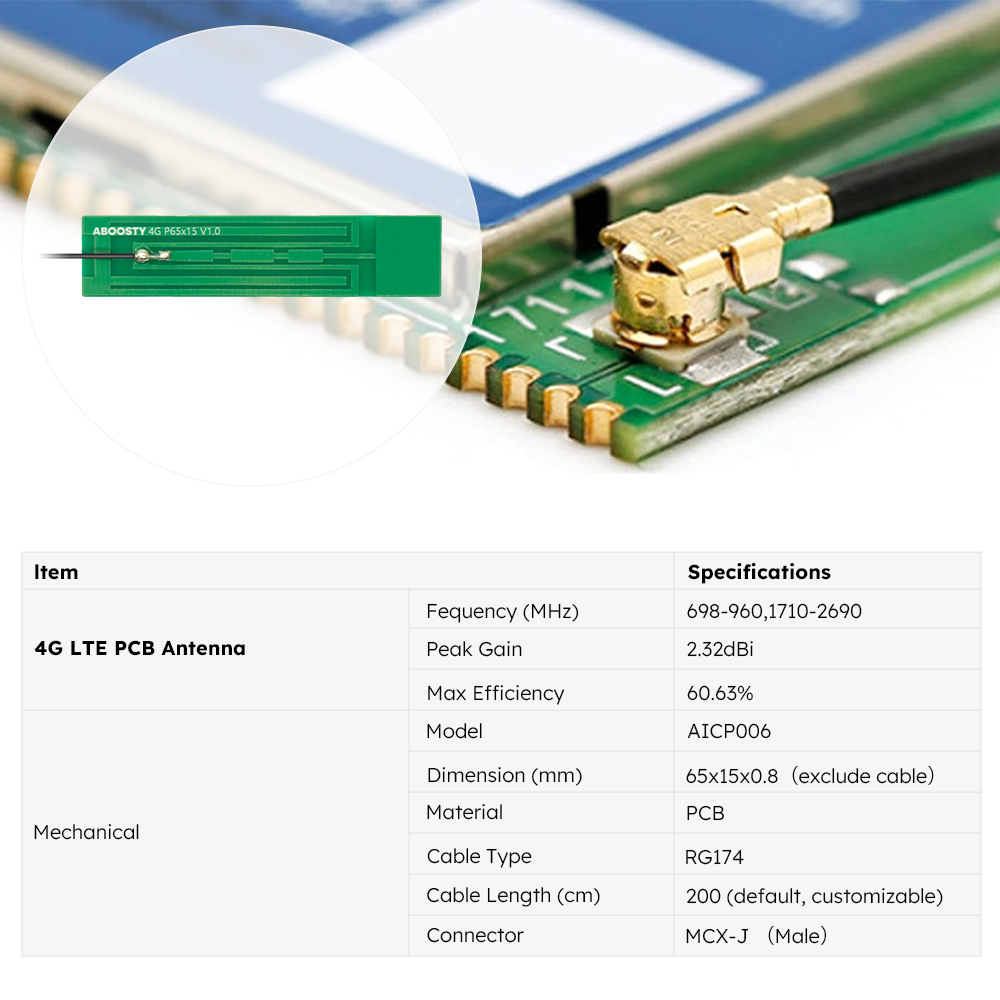

Operating Frequency: 700-960 MHz | 1710-2690 MHz
Dimensions: 65x15x0.8mm

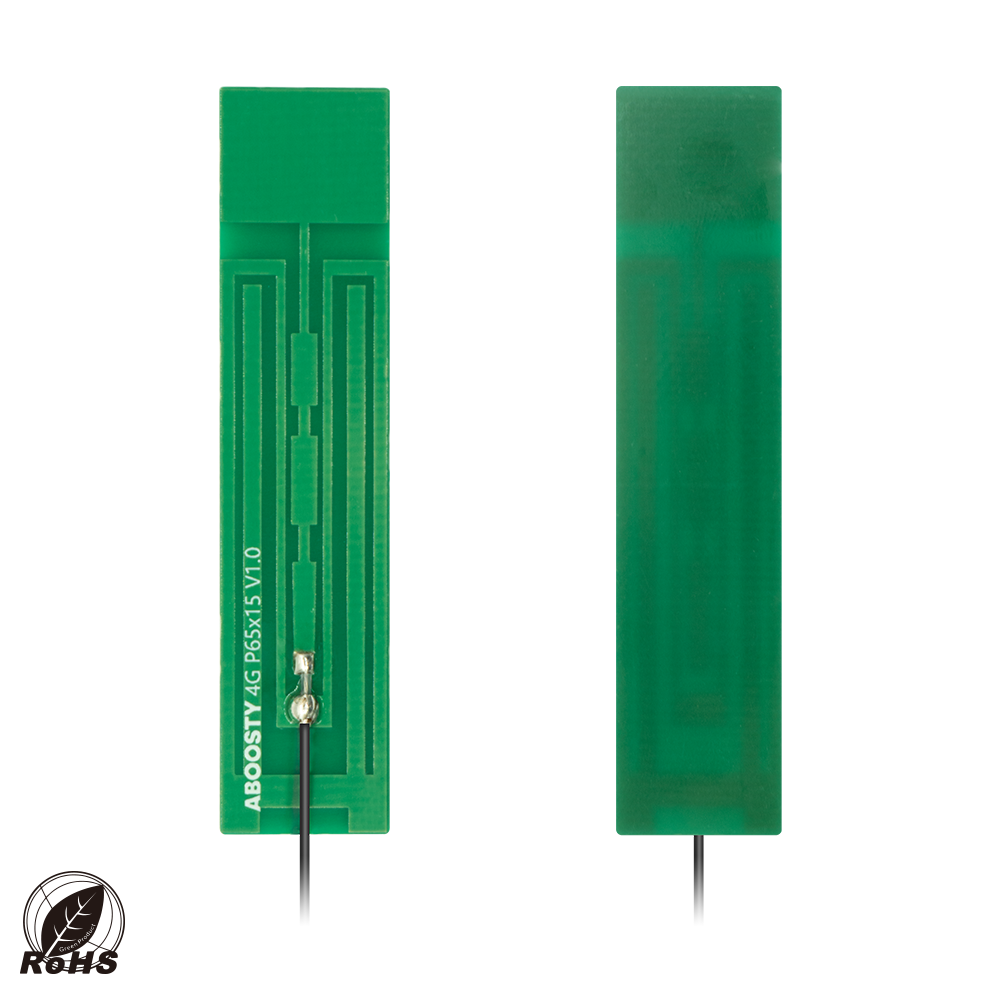

The ABOOSTY AICP006 65×15 L200 MCX-J embedded PCB antenna is a compact 65x15mm LTE/4G/3G cellular antenna designed for seamless integration into IoT and smart devices. Featuring a durable green PCB structure, pre-attached 200 mm RG1.37 coaxial cable, and an MCX connector, it delivers reliable performance while maintaining a lightweight 3 g design. Ideal for IoT modules, smart metering, smart agriculture, consumer tracking, and industrial applications, this antenna ensures strong cellular connectivity in a wide range of embedded solutions.

Package Included: 1 x PCB Antenna

LABEL

VALUE

Certificates Acquired

RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.8

Product Weight (g)

3.0

Freq. (MHz)

700-960, 1710-2690

Technology Type

4G/3G/LTE/GSM

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Dipole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

60.63%

Peak Gain

2.32dBi

VSWR

3.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

MMCX

Cable Type

RF 1.37 Coax

Cable Length (mm)

200

Mechanical Style

PCB

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices: Embedded LTE connectivity for sensors, gateways, and consumer electronics.
Consumer Tracking & Wearables: LTE-enabled tracking devices and smart wearables.
Smart Agriculture: Wireless connectivity for soil sensors, irrigation controllers, and livestock tracking.
Industrial Equipment
Medical Devices
Drones and Robotics
Smart Cities: Traffic management, surveillance, environmental monitoring, and connected street devices.

Part Number

User Story

Model

Description

Note

AICP006

4G 65x15x0.8mm MCX-J LTE/Cellular PCB Antenna | Embedded AntennaFR4 PCB Embedded Antenna

M01-0501160R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >
