Adhesive LTE/4G/BT Embedded FPC Antenna for BYD Electric Vehicles 79.4×21mm

SKU: AICF004 Categories: FPC Antennas, Internal Antennas Tags: 2G/3G LTE, 4G LTE, LPWAN, NB-IoT

Product Overview

Key Features

Description

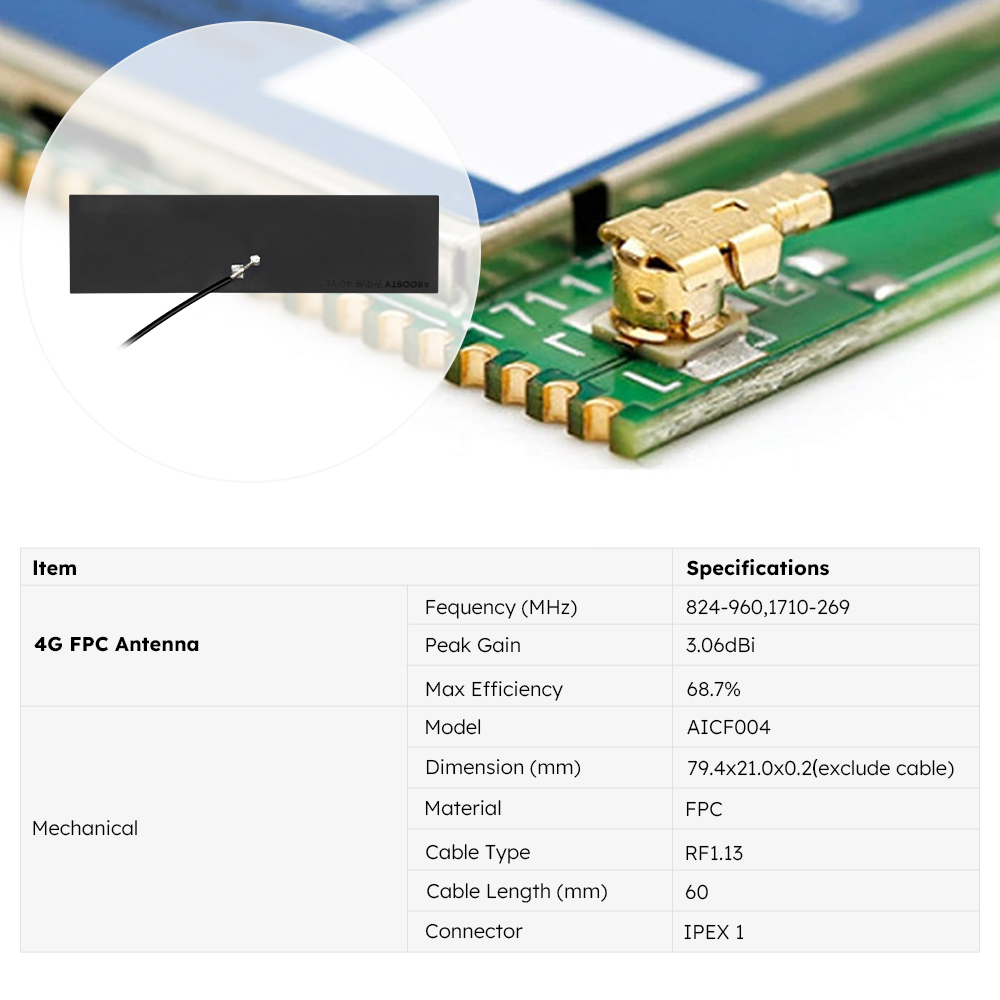

Specification

Applications

Max Efficiency: up to 68.7%
Cable: RF 1.13, L: 60 mm
Connector: IPEX 1

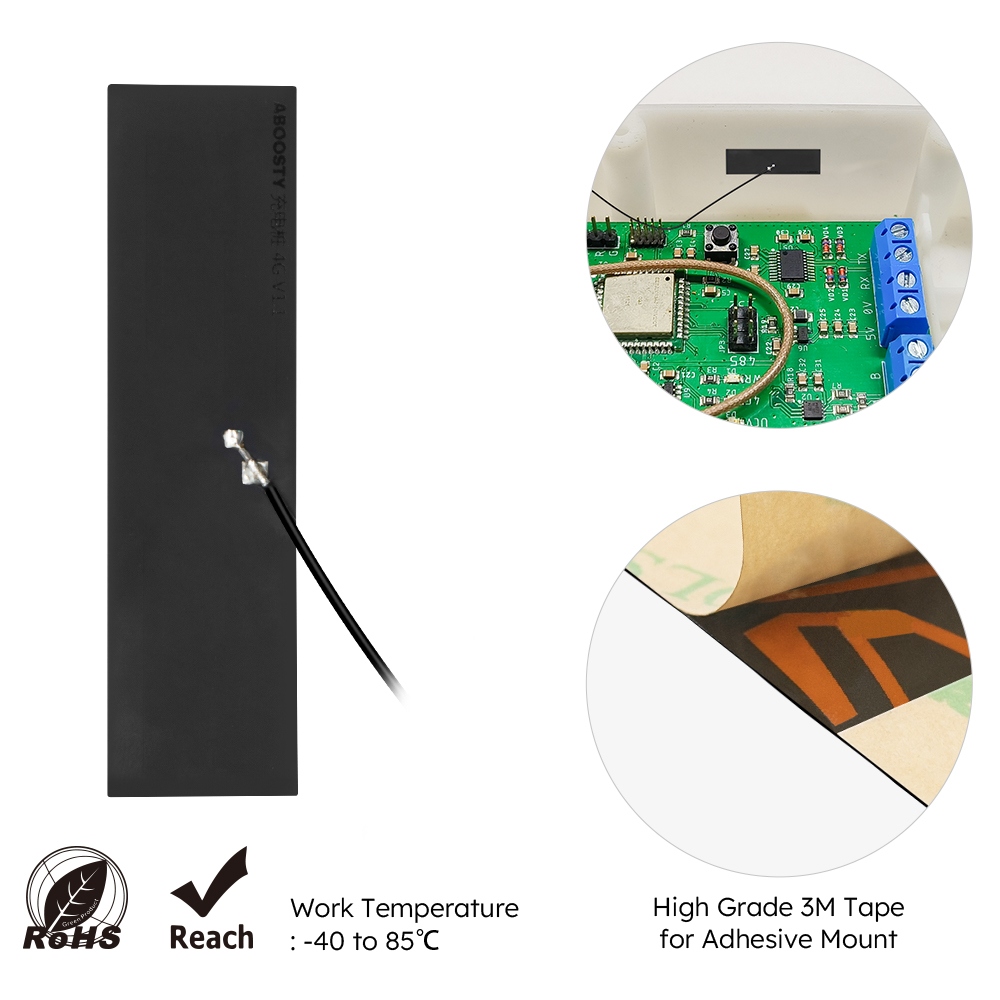

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Ground plane independent

Omni-directional with Worldwide Cellular, LTE bands

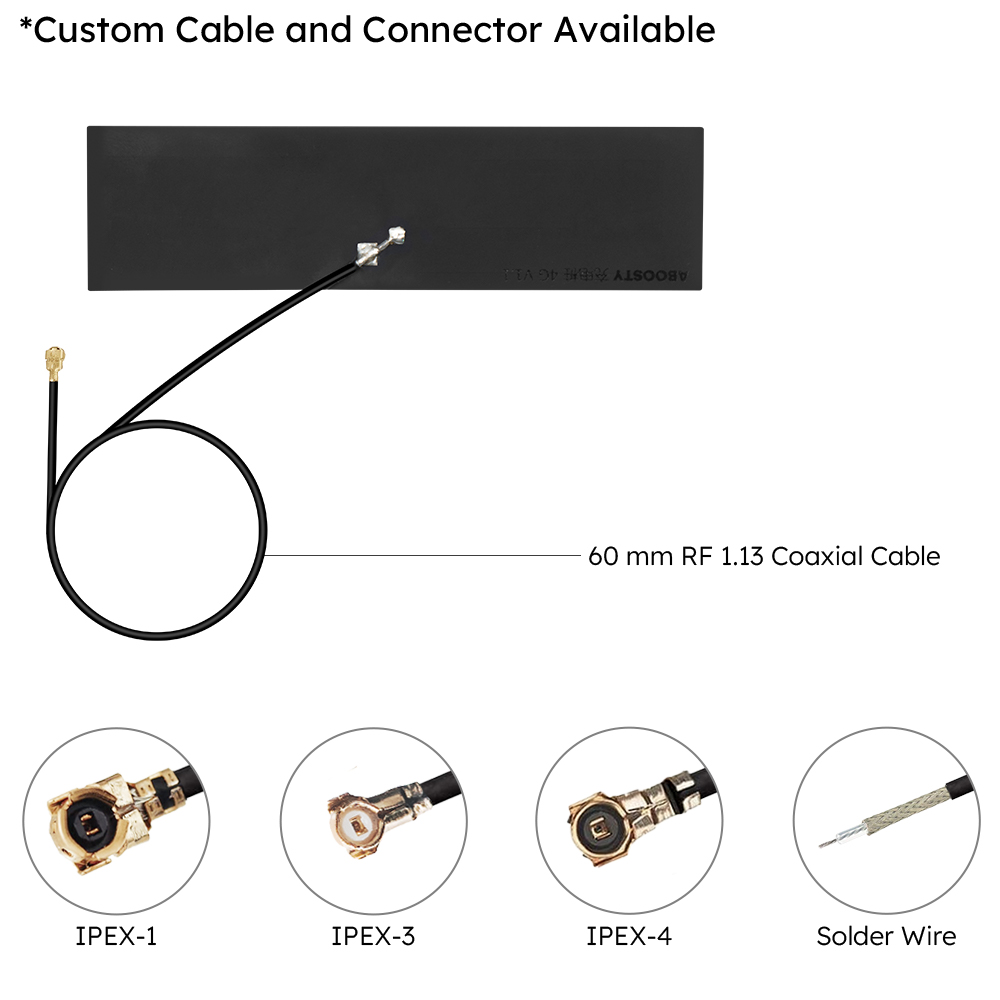

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 824-960 MHz | 1710-2690 MHz
Dimensions: 79.4×21mm

The Aboosty AICF004 4G LTE Antenna is engineered for automotive and embedded wireless systems.
This compact antenna supports stable 4G/LTE connectivity across wide frequency bands, making it ideal for integration into BYD vehicles, telematics units, and industrial IoT terminals. With its slim 79.4mm × 21mm profile, the L60CM1 offers design flexibility for space-constrained installations. Optimized for performance and durability, the antenna ensures reliable signal reception in automotive-grade applications. It’s a preferred solution for developers seeking a dependable automotive 4G antenna module that balances size, strength, and efficiency.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

79.4

Width (mm)

Height (mm)

0.2

Product Weight (g)

0.7

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G/3G/LTE/GSM, 5G LTE, Zigbee, Bluetooth

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Avg Efficiency

68.7

Peak Gain

3.60 dBi

VSWR

5.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart Home Devices
IoT Devices
Consumer Electronics
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AICF004

4G 79.4×21mm BYD (Car) FPC Embedded Antenna

M01-0500710R0A

Customization supported
