AELW010 915 MHz Right-Angle SMA Male Omni-Directional Rod Antenna for 900–930 MHz ISM Outdoor IoT

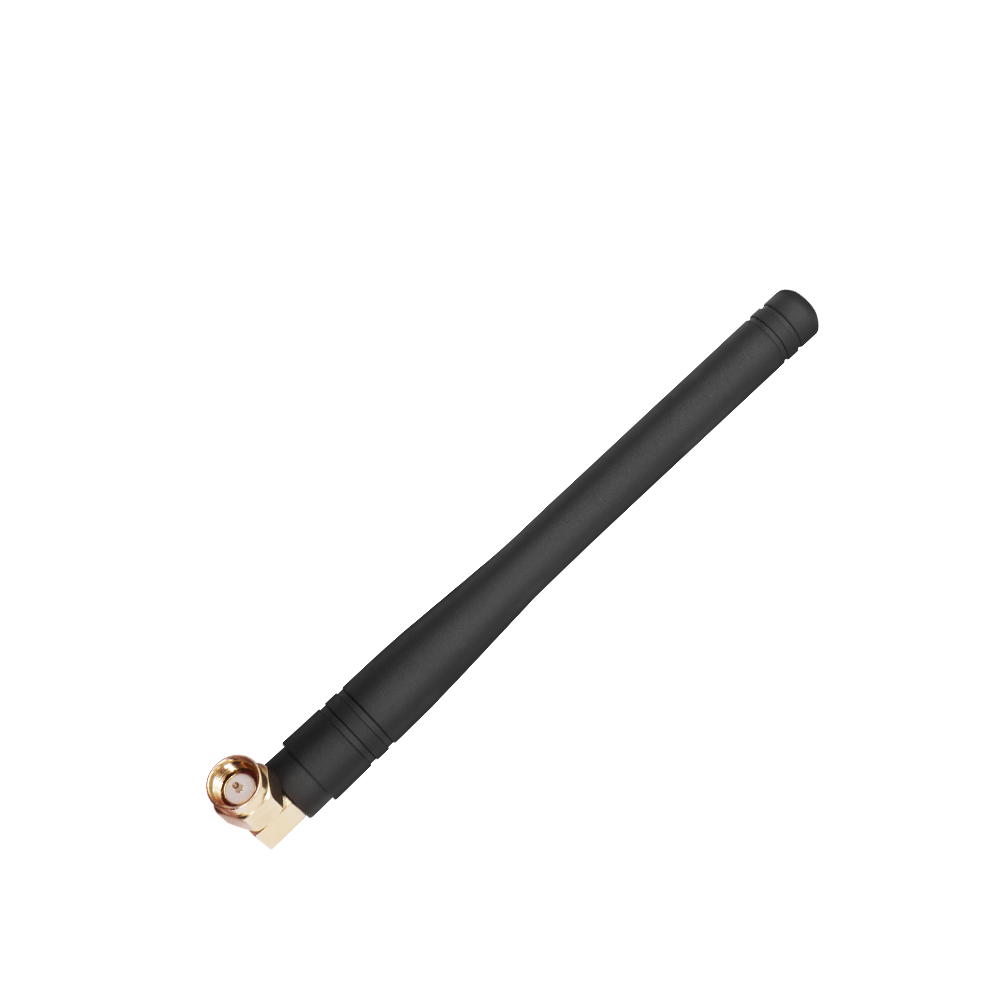

AELW010 915 MHz right-angle SMA male rod antenna with 106.5 mm black whip and 18.5 mm diameter for 900-930 MHz ISM IoT and industrial devices

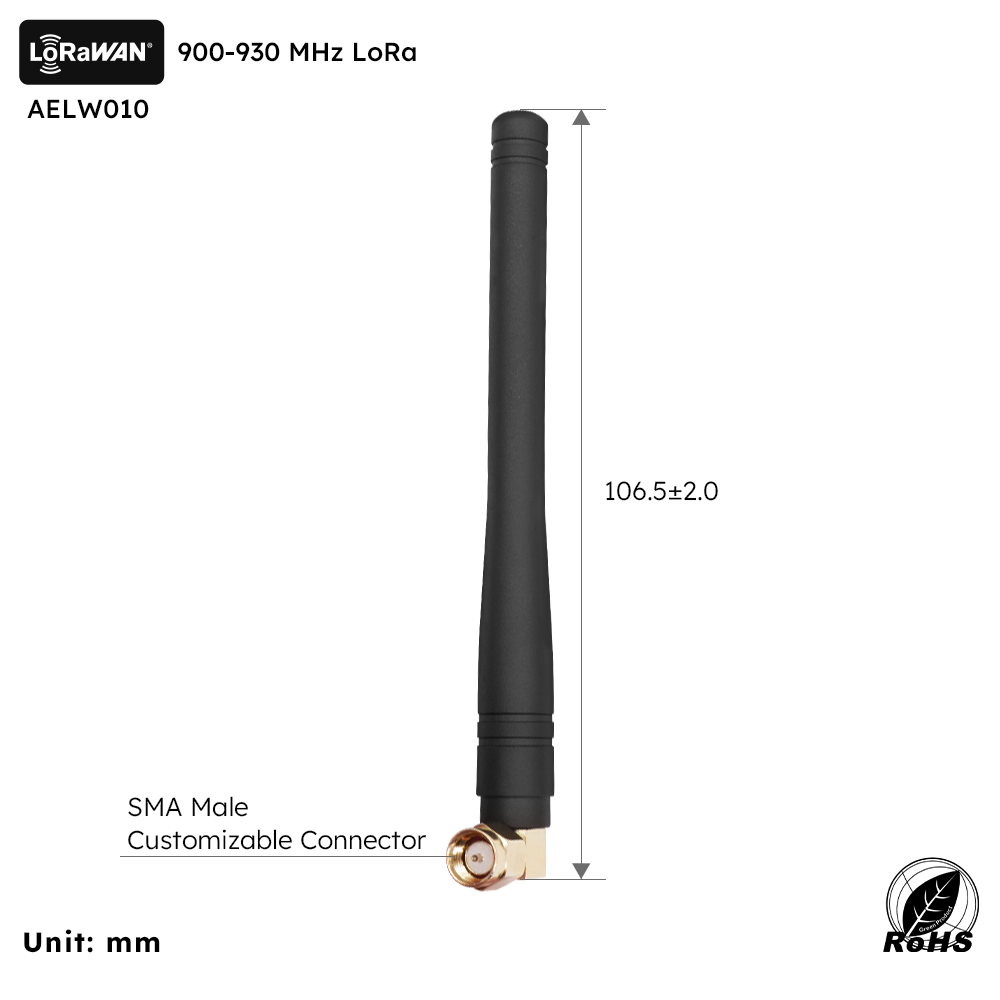

mechanical drawing of AELW010 right-angle SMA male rod antenna showing 106.5 mm length, 18.5 mm maximum diameter and connector thread details
AELW010 915 MHz right-angle SMA male rod antenna for 900–930 MHz industrial IoT devices
AELW010 915 MHz right-angle SMA male rod antenna with 106.5 mm black whip and 18.5 mm diameter for 900-930 MHz ISM IoT and industrial devices
mechanical drawing of AELW010 right-angle SMA male rod antenna showing 106.5 mm length, 18.5 mm maximum diameter and connector thread details
AELW010 915 MHz right-angle SMA male rod antenna for 900–930 MHz industrial IoT devices
AELW010

AELW010 915 MHz Right-Angle SMA Male Omni-Directional Rod Antenna for 900–930 MHz ISM Outdoor IoT

LPWA/ISM/LoRa
VHF/TETRA/UHF/RFID
Single External Antennas
Download
Datasheet
Buy Samples
Coming soon
Contact Us​

Aboosty is ready to help you tackle various wireless issues.

AELW010 915 MHz Right-Angle SMA Male Omni-Directional Rod Antenna for 900–930 MHz ISM Outdoor IoT

SKU： AELW010 分类： 标签： , , 品牌：

Product Overview

Key Features
Description
Specification
Applications

AELW010 is a 915 MHz right-angle rod antenna for the 900–930 MHz ISM / sub-GHz IoT band, featuring a compact 106.5 × 18.5 mm housing with a right-angle SMA male connector. It provides a linear omni-directional pattern, 50 Ω match, max VSWR 2.0:1, peak gain 0.27 dBi and efficiency up to 48.1%, making it suitable for industrial IoT nodes, gateways, telemetry modems, SCADA RTUs, metering and smart-city devices.

Tuned for North-American and global 915 MHz IoT / ISM deployments; ideal for LPWAN, telemetry and metering.
Right-angle SMA male form factor ， saving space and avoiding collisions in tight racks and cabinets.
Linear, Omnidirectional Performance
Balanced gain–efficiency profile
Rugged low-profile housing
Industrial environmental rating
RoHS Compliant
Standard 50 Ω interface

Electrically, AELW010 is tuned around 915 MHz with a technical band of 900–930 MHz, 50 Ω input, VSWR ≤ 2.0, peak gain 0.27 dBi and efficiency up to 48.09%. The linear omni-directional pattern provides uniform azimuth coverage, suitable for gateways, repeaters and distributed field devices where node orientation is not controlled. The antenna is housed in a rugged black radome and rated for −40…+85 °C and 10–70% RH, making it appropriate for industrial and outdoor IoT deployments such as metering, telemetry, SCADA and smart-city infrastructure. For purchasing and project management teams, AELW010 offers a standard, connectorized 915 MHz antenna option that can be reused across multiple product platforms with minimal RF redesign.

LABEL
VALUE
Certificates Acquired
RoHS Compliant
Length(mm)
106.5
Width(mm)
Height (mm)
Ø 18.5 mm
Freq. (MHz)
902-928
Technology Type
LPWA, ISM, LoRa/Sigfox
Operating Temperature (℃)
-40°C to +85°C
Markets
Mobility and Infrastructure, Smart Industrial, Public Safety, Others
Other Attributes
N/A
Antenna Type
Dipole
Connector Style
Right Angle
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
48.09
Peak Gain
0.27 dBi
VSWR
≤ 2.0 : 1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
RP-SMA-Male
Cable Type
N/A
Cable Length (mm)
N/A
Mechanical Style
PC
Mounting Style
Direct Mount
Customization Option
Logo, Packaging, Connectors
  • IoT & industrial devices (915 MHz) – sub-GHz IoT nodes, sensor nodes, controllers, RTUs
  • Wireless communication & data acquisition – 900–930 MHz telemetry modems, data loggers, SCADA links
  • Industrial Monitoring
  • Urban and Rural Tracking
  • Environmental Monitoring
  • Security & building automation – alarm panels, access control, smoke / intrusion sensors
  • Smart-city / outdoor systems
Part Number
User Story
Model
Description
PN
Note
AELW003
915 MHz LoRa Antenna with RP-SMA-Male Connector
M02-0400220R0A
Customization supported
AELW002
868 MHz LoRa Antenna with RP-SMA-Male Connector
M02-0400210R0A
Customization supported
AELW001
868-915 MHz LoRa Antenna with SMA-Male Connector
M02-0400190R0A
Customization supported
AELW010
915 MHz Right-Angle SMA Male Rod Antenna, 900–930 MHz ISM Outdoor Omni, L=106.5 mm
M02-0400930R0A
Customization supported
