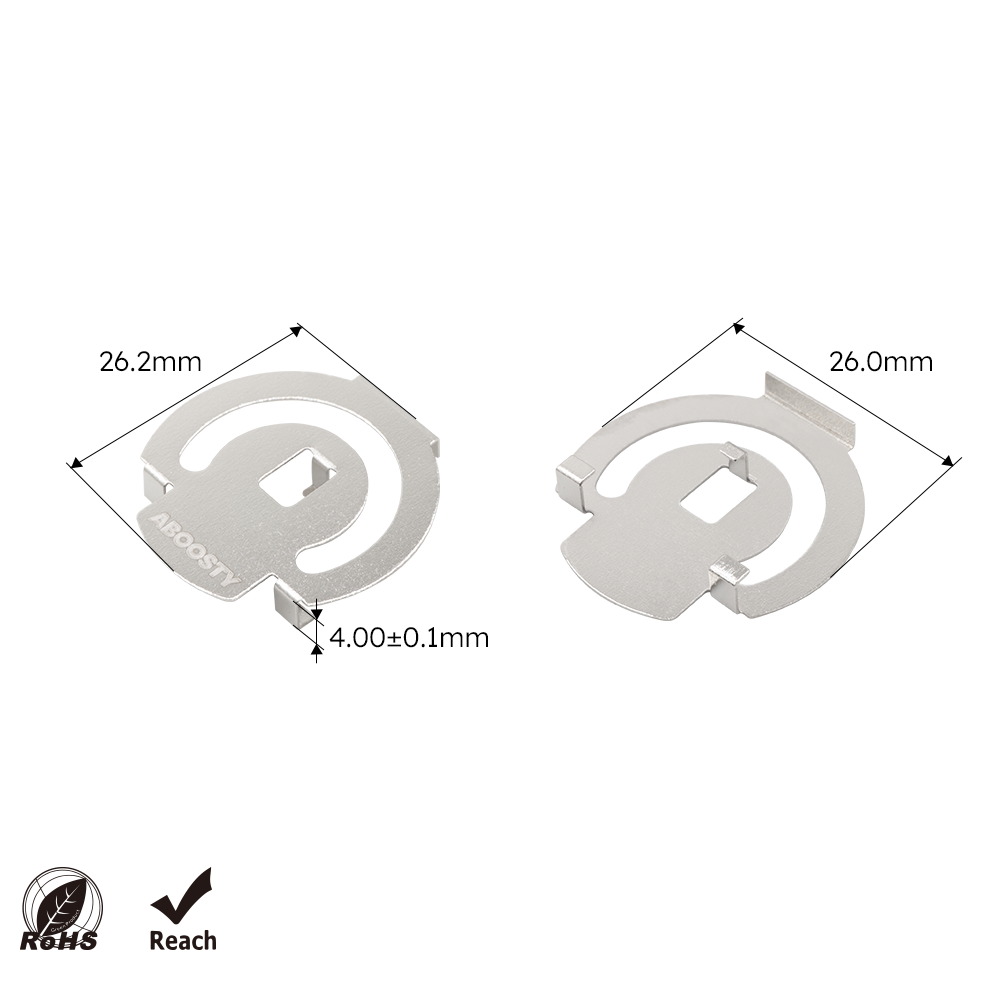

ADWM006-2.4G-Antenna-Mechanical-drawing-26.2-×-26-×-4-mm

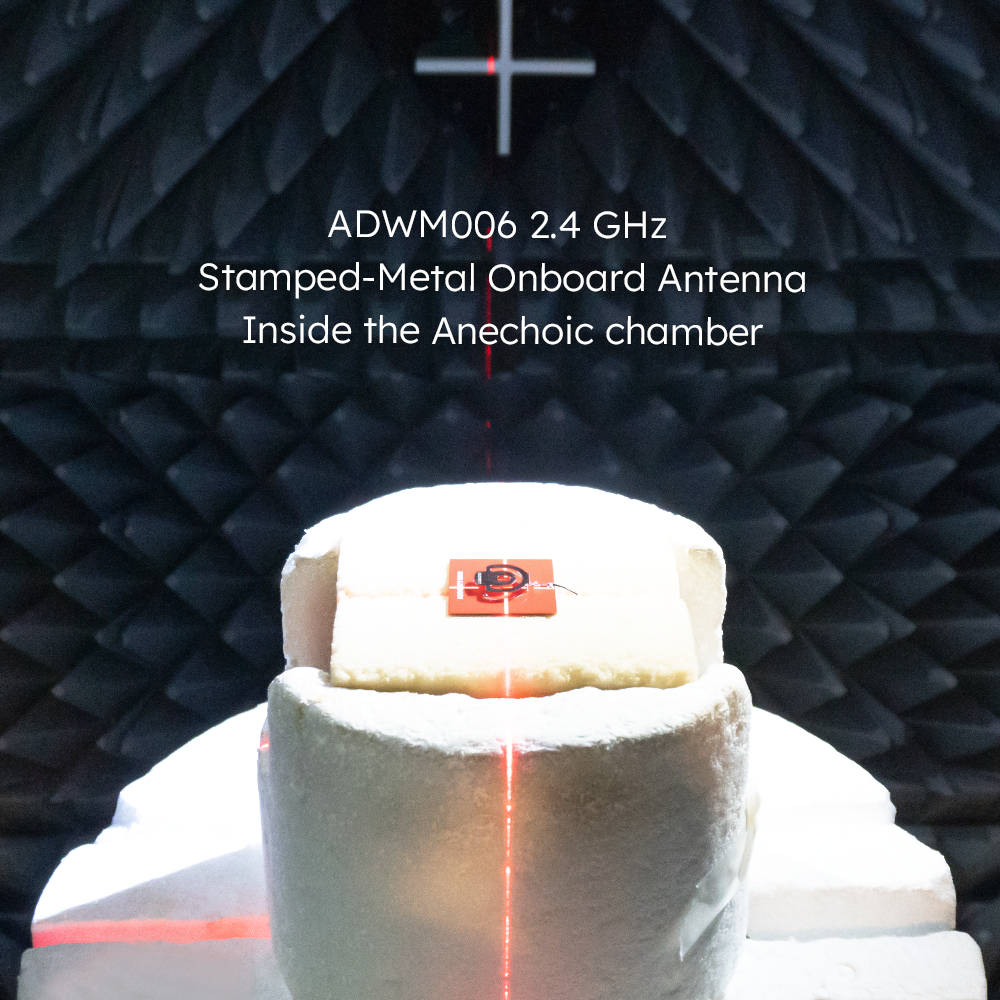

ADWM006-Anechoic-Test-3D-radiation-pattern-in-ABOOSTY-OTA-lab

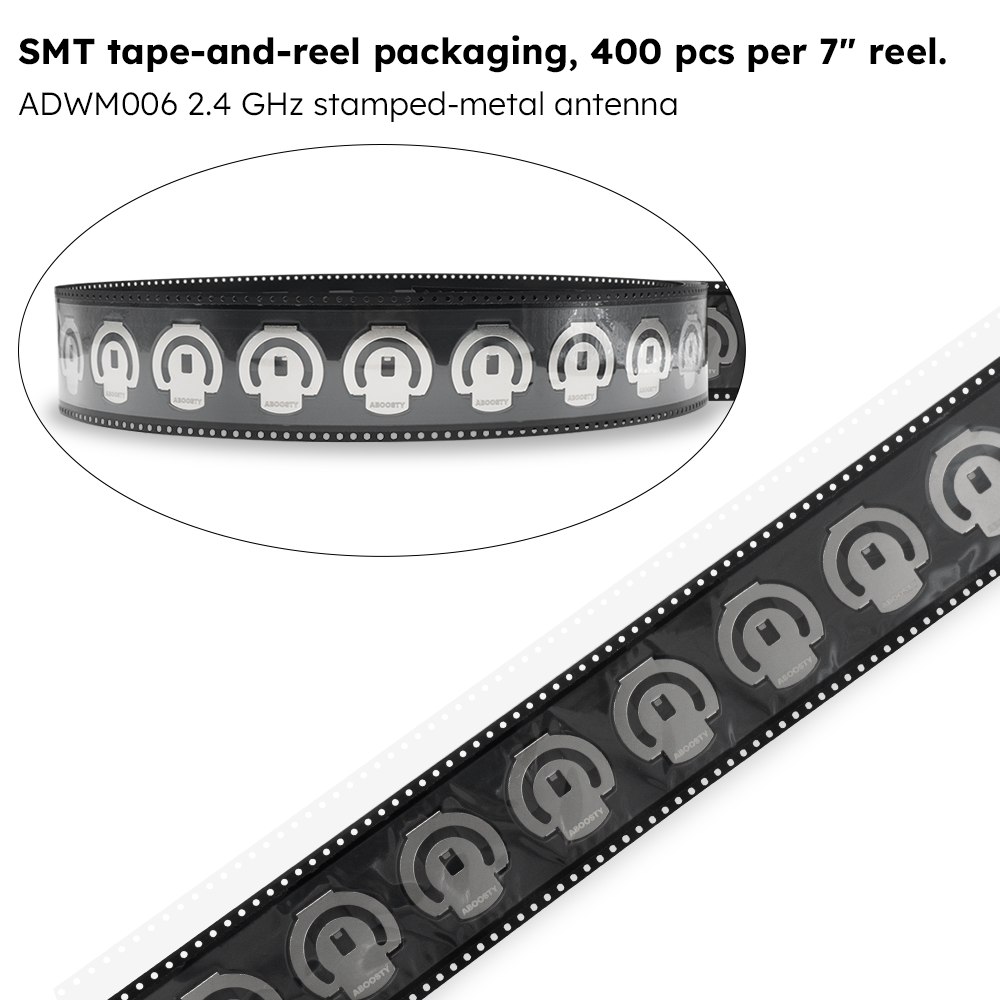

ADWM006-2.4GHz-antenna-package-SMT-tape-and-reel-packaging

ADWM006

ADWM006 | 2.4 GHz Stamped-Metal Onboard SMD Antenna for Wi-Fi, Bluetooth & ZigBee

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

ADWM006 | 2.4 GHz Stamped-Metal Onboard SMD Antenna for Wi-Fi, Bluetooth & ZigBee

Product Overview

Key Features

Description

Specification

Applications

ADWM006 is a 26 × 26 × 4 mm stamped-metal onboard antenna covering 2.4 GHz ISM band for Wi-Fi, Bluetooth and ZigBee applications. It delivers ≈ 0.22 dBi gain and ≈ 55 % efficiency with VSWR < 2.0. The rugged metal radiator and SMD mounting make it ideal for IoT controllers, routers and smart devices. Supported by ABOOSTY R&D, OTA labs and OEM/ODM manufacturing.

Ground-plane dependent with predictable tuning on compact PCBs

Low profile, 26.2 × 26 × 4.0 mm; lightweight SMD package.

Easy to integrate; 50 Ω input; intended for SMD mounting.

Reduced Cost and Time-to-Market

Lead-free reflow compatible; tape-and-reel supply for high-volume builds.

REACH/RoHS Compliant

2.4 – 2.5 GHz ISM band support (Wi-Fi / Bluetooth / ZigBee)

OEM/ODM customization, OTA TRP/TIS, RF validation, pre-cert guidance.

Rugged metal design for thermal and mechanical stability

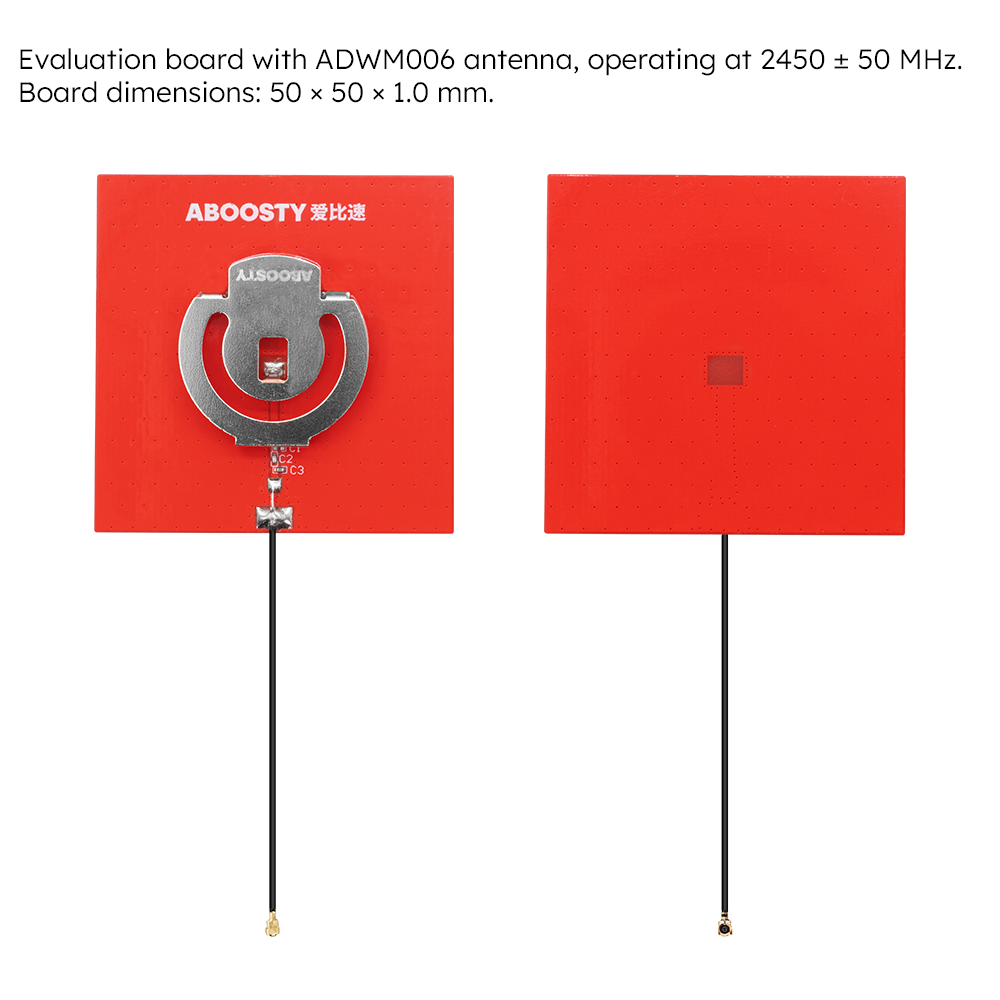

The ABOOSTY ADWM006 is a high-efficiency 2.4 GHz stamped-metal onboard antenna engineered for wireless modules and consumer IoT equipment. Its 26 × 26 × 4 mm metal structure mounts directly on the PCB and is optimized for 2.4 – 2.5 GHz Wi-Fi, Bluetooth and ZigBee bands. With a peak gain of 0.22 dBi, VSWR below 2.0 and ≈ 55 % efficiency (on a 50 × 50 mm reference board), it offers reliable RF performance for routers, IoT gateways and industrial controllers. Its metallic design improves thermal stability and mechanical durability compared to ceramic types. ABOOSTY provides OEM/ODM tuning, connector adaptation and certification support for mass production.

ABOOSTY supports OEM/ODM customization, layout review, enclosure detuning correction, OTA (TRP/TIS) testing, and RF validation to accelerate certification and mass production.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length(mm)

26.2

Width(mm)

Height (mm)

4.0

Product Weight (g)

0.9

Freq. (MHz)

2450±50

Technology Type

2.4G WIFI, Bluetooth, Zigbee

Frequency Bands

2.4 GHz

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobile Communication, Others

Other Attributes

Shrapnel Antennas, Compact

Antenna Type

Monopole

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

54.92

Peak Gain

0.22 dBi

VSWR

2.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

Stamped Metal

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging, Frequency

Smart Home / Matter-ready -— smart plugs, wall switches, bulbs/strips, door locks & bells, window/door/leak/smoke/temp-humidity sensors, vacuum robots, air-quality monitors
Wearables & Personal Electronics - wristbands/watches, TWS charging cases, e-ink tablets, handheld barcode scanners, game controllers, BT keyboards/mice
Asset Tracking & Retail -BLE beacons, indoor positioning tags, ESL price labels, POS terminals, payment readers, handheld inventory devices
Industrial IoT / Smart Factory - 2.4 GHz sensor nodes, energy/environment monitors, AGV/AMR telemetry, warehouse gateways, tool/fixture tracking, HMI/remote controllers
Healthcare & Fitness - wearable health monitors, portable medical terminals, smart pill boxes, rehab/fitness accessories
Commercial Equipment
Gateways / Routers / Extenders - mesh nodes, compact CPE, BLE-to-Ethernet/cellular bridges, home hubs
Smart Metering

Part Number

User Story

Model

Description

Note

ADWM004

2.4G Wi-Fi / BLE / ZigbeeSMD Antenna (20.0x11.0x6.0mm)

M01-X02011M234

Light customization supported

ADWM003

2.4G Wi-Fi / BLE / Zigbee SMD Antenna (20.0x11.0x8.0mm)

M01-X02011M233

Light customization supported

ADWM005

2.4G Wi-Fi / BLE / Zigbee SMD Antenna (13.75×5.25×3.5 mm)

M01-X01453W240

Light customization supported

ADWM006

2.4G Wi-Fi / BLE / Zigbee SMD Antenna (26.2 × 26 × 4.0mm)

M01-0601760R0A

Light customization supported
