ADCP002 | Dual-Band 698–960 MHz / 1710–2690 MHz Combination SMD Antenna for 4G/3G/2G, LTE Cellular, Cat-1, NB-IoT, and LoRa

ABOOSTY ADCP002 is an embedded 4G LTE SMD antenna optimized for multi-band cellular IoT applications. Covering 698–960 MHz and 1710–2690 MHz, it supports LTE FDD and LTE TDD, LTE Cat 1, LTE-M (Cat M1), NB-IoT, WCDMA/UMTS and legacy GSM/GPRS/EDGE networks. This makes ADCP002 suitable for global 3GPP deployments in the Americas, EMEA and Asia-Pacific regions.

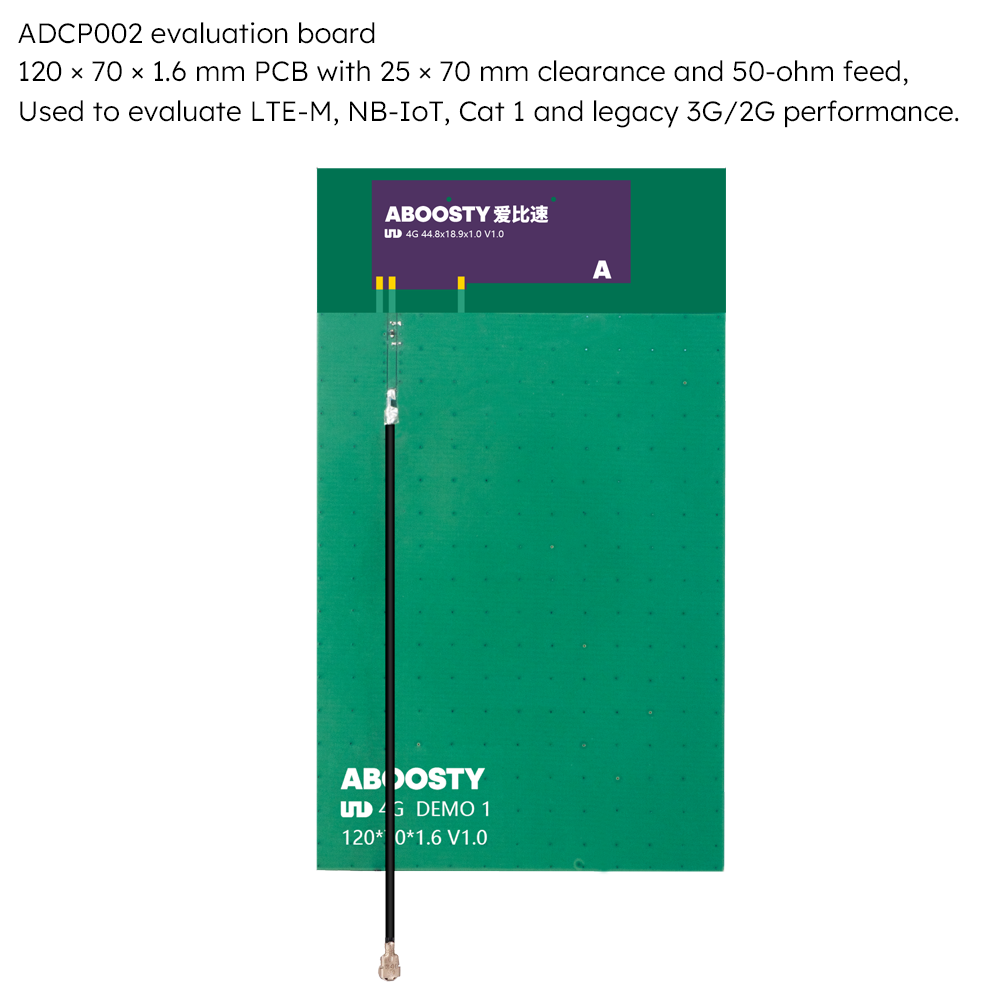

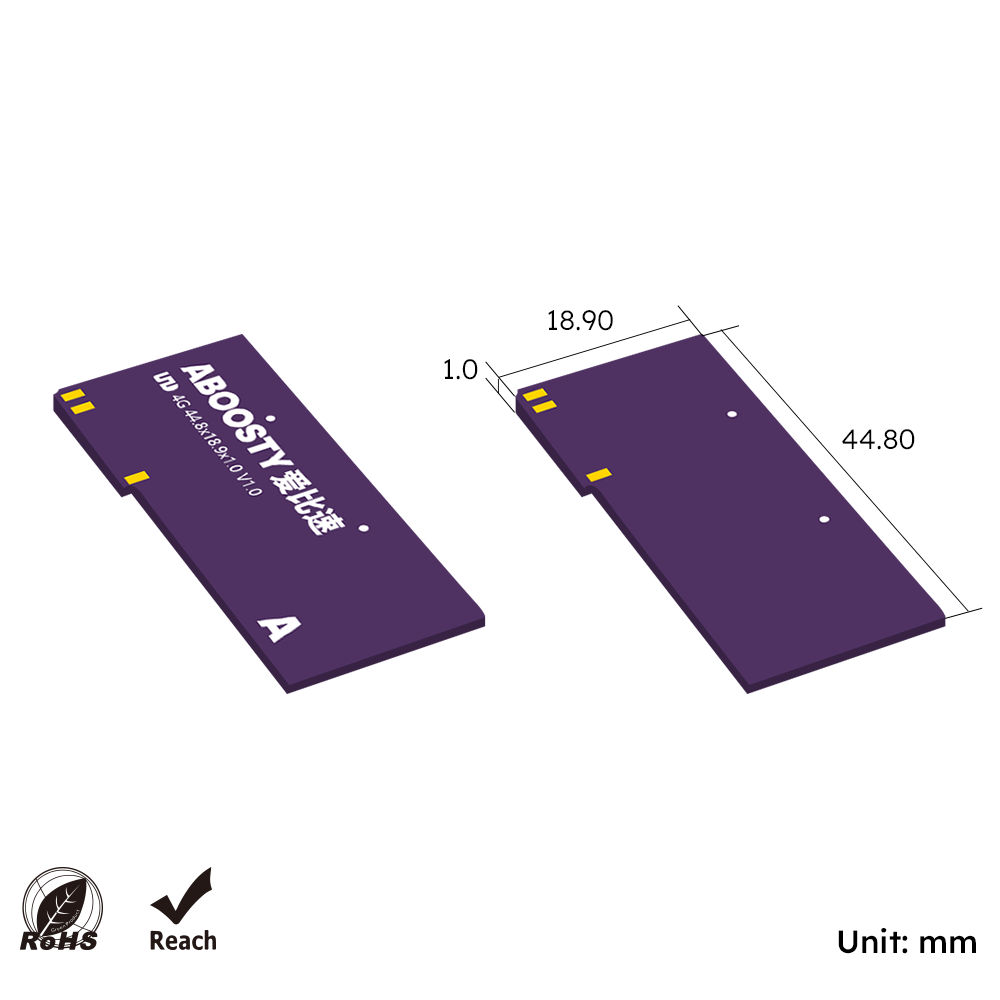

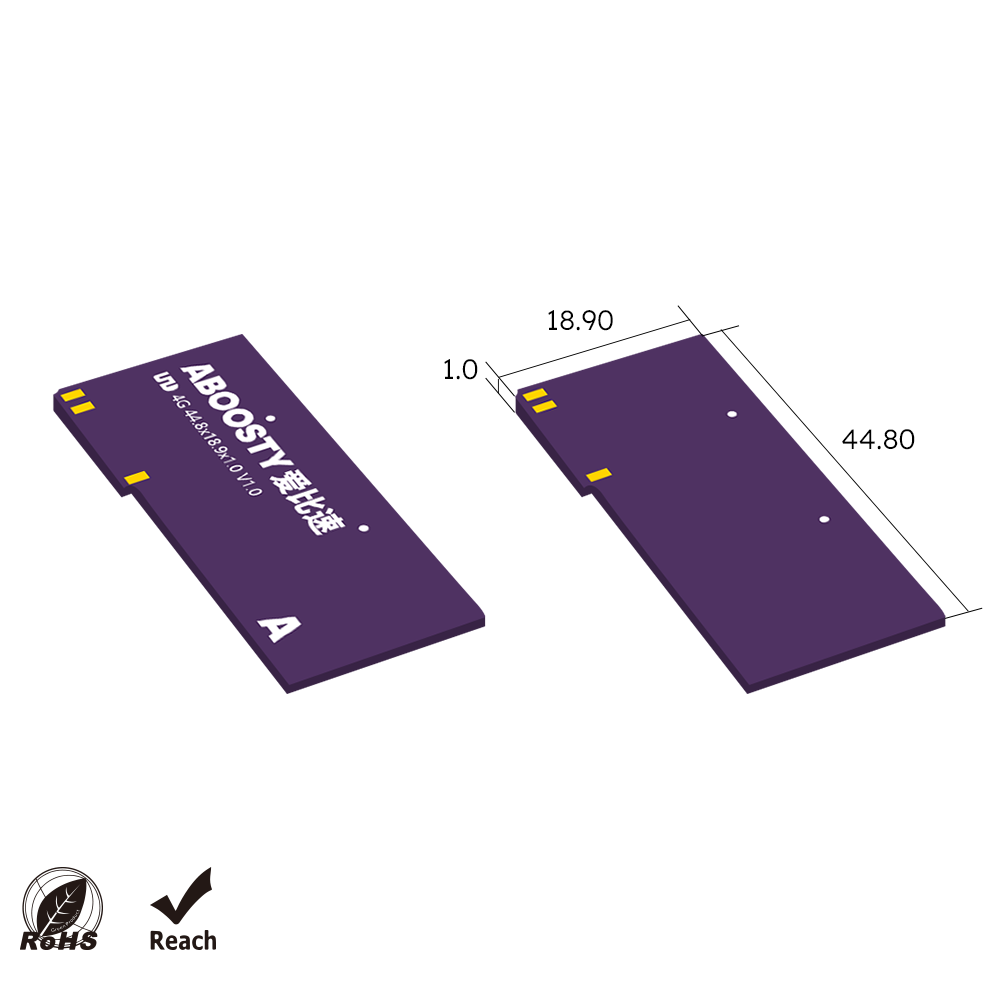

The antenna features a 44.8 × 18.9 × 1.0 mm low-profile footprint and a 50-ohm input, designed for PCB edge mounting. On the 120 × 70 × 1.6 mm reference board with a 25 × 70 mm clearance area, ADCP002 delivers wideband performance with typical peak gain up to about 2.5 dBi and efficiency up to around 69 % in the high band, depending on the final ground-plane and enclosure design.

ADCP002 is a robust choice for cellular IoT gateways, smart meters, vending and payment terminals, asset tracking and telematics devices, industrial RTUs, and smart city infrastructure nodes. It is supplied in SMT tape-and-reel packaging (1000 pcs per 7″ reel) and supports lead-free reflow. ABOOSTY’s RF team provides layout review, matching-network tuning and OEM/ODM customization, helping engineers shorten time-to-market and pass certification with predictable RF performance.



BENEFITS

• Shorter Development Cycles — Pre-tested matching network reduces RF debugging time
• Improved Product Reliability — Stable performance under −40 ~ +85 °C industrial temperature range
• Excellent for Dense Layouts — Suitable for compact IoT, metering, and tracking device housings
• Ready for Mass Production — Delivered in SMT tape-and-reel (1000 pcs/reel) for automated assembly
• Optimized for Global IoT — Single antenna supports LTE-M / NB-IoT / Cat 1 / WCDMA / GSM
• Backed by ABOOSTY RF R&D — Layout review, custom tuning and certification guidance available
