AINF006 | 13.56 MHz 25×25mm Square Embedded Adhesive NFC FPC Antenna

SKU： AINF006 分类： FPC Antennas, Internal Antennas 标签： NFC 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

Ultra-thin 25x25mm NFC antenna on flexible PCB (FPC), operating at 13.56 MHz and up to 2W RF power. Ideal for smartphones, tablets, wearables, IoT devices, and POS systems. RoHS/REACH compliant with OEM/ODM customization and tested RF performance for reliable NFC communication.

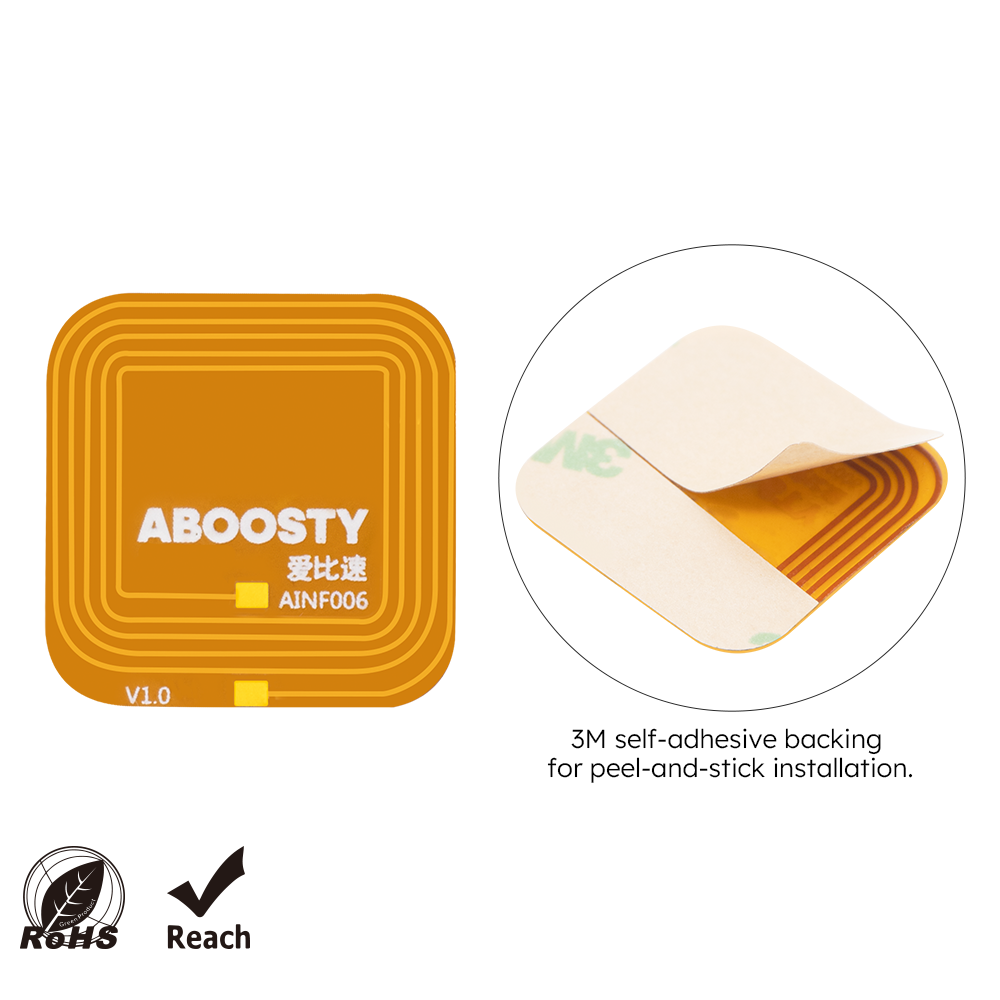

Ultra-thin flexible design: 0.16mm FPC, ideal for compact, wearable, and mobile devices

High-performance NFC: Operates at 13.56 MHz with stable impedance and Q-factor

Easy integration: FPC form factor allows seamless device integration with adhesives or PCB slots

Optimized for 13.56 MHz NFC communication with stable impedance

Reliable operation: Tested for RF performance in lab conditions across environmental ranges

Customizable: OEM/ODM services including FPC size, color, and inductance tuning

RoHS/REACH compliant: Environmentally friendly and safe for commercial devices

Operating Frequency: 13.56 MHz (HF band, compliant with ISO 14443 / ISO 15693 standards)

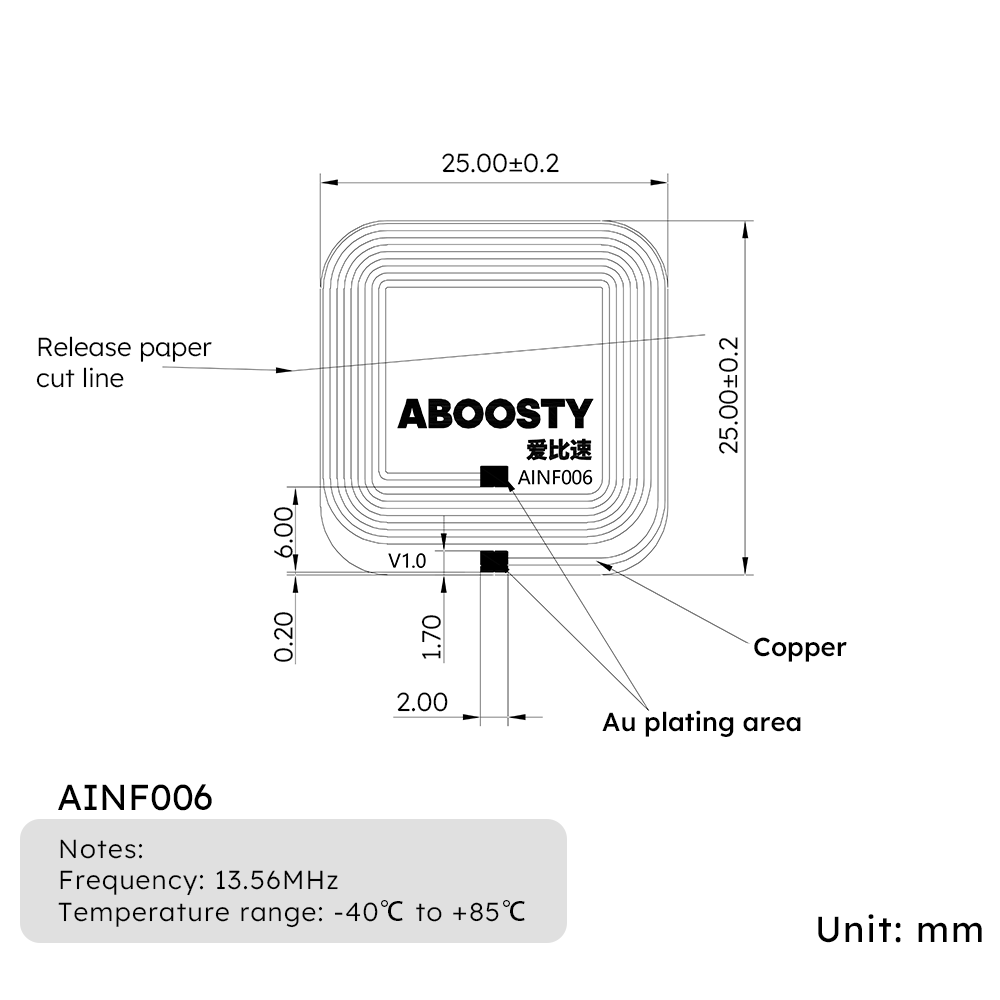

Dimensions: 25 × 25 × 0.16 mm

RF Power: 2 W

REACH / RoHS Compliant

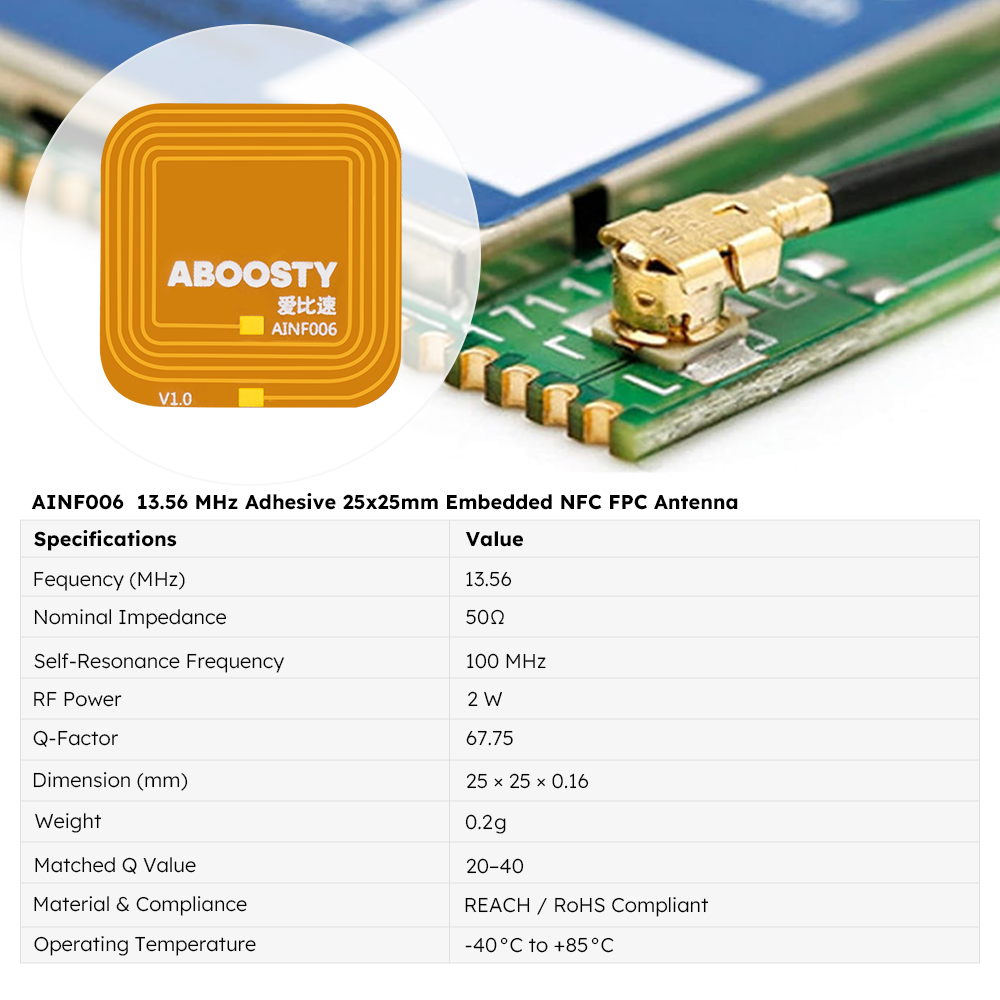

The antenna supports a recommended matching network (L=560nH, C1=35pF, C2=280pF, CEMC=180pF), which can be fine-tuned for device-specific environments. Fully RoHS and REACH compliant, it operates reliably across -40°C to +85°C. ABOOSTY offers OEM/ODM customization including flexible PCB size, color, inductance tuning, and RF optimization, ensuring rapid prototyping, stable NFC performance, and fast time-to-market for both consumer and industrial applications.

Rapid antenna sample creation, flexible customization, high-volume production, and reliable delivery with advanced testing equipment and quality control by ABOOSTY.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.16

Product Weight (g)

0.2

Freq. (MHz)

13.56

Technology Type

NFC

Operating Temperature (℃)

-40°C to +85°C

Markets

Connected Health, Smart Cities, Mobile Communication, Others, Smart Industrial, Mobility and Infrastructure

Other Attributes

NFC Antennas, N/A

Antenna Type

Inductive Loop

Radiation Pattern

Near Field Coupling

Polarity

Linear

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

N/A

Antenna Connector Type

N/A

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging

Retail and Payment Terminals FOR Consumer payment systems (POS, mobile wallets)
Public and Interactive Displays Such as Digital Signage
Mobile Devices :Handheld terminals for logistics and ticketing
Sharing / Pairing
Wearable Smart Devices ：Smart appliances with NFC control
Device Tracking and ID Systems :　Industrial handheld readers for inventory management
Access Control ：IoT gateways requiring NFC authentication
Industrial handheld readers RFID for inventory management
Industrial & Logistics: Asset tracking, smart manufacturing, logistics monitoring

Part Number

User Story

Model

Description

Note

AINF006

25x25mm NFC FPC Antenna – Ultra-Thin 13.56 MHz Flexible PCB Module

M04-0105620R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >
