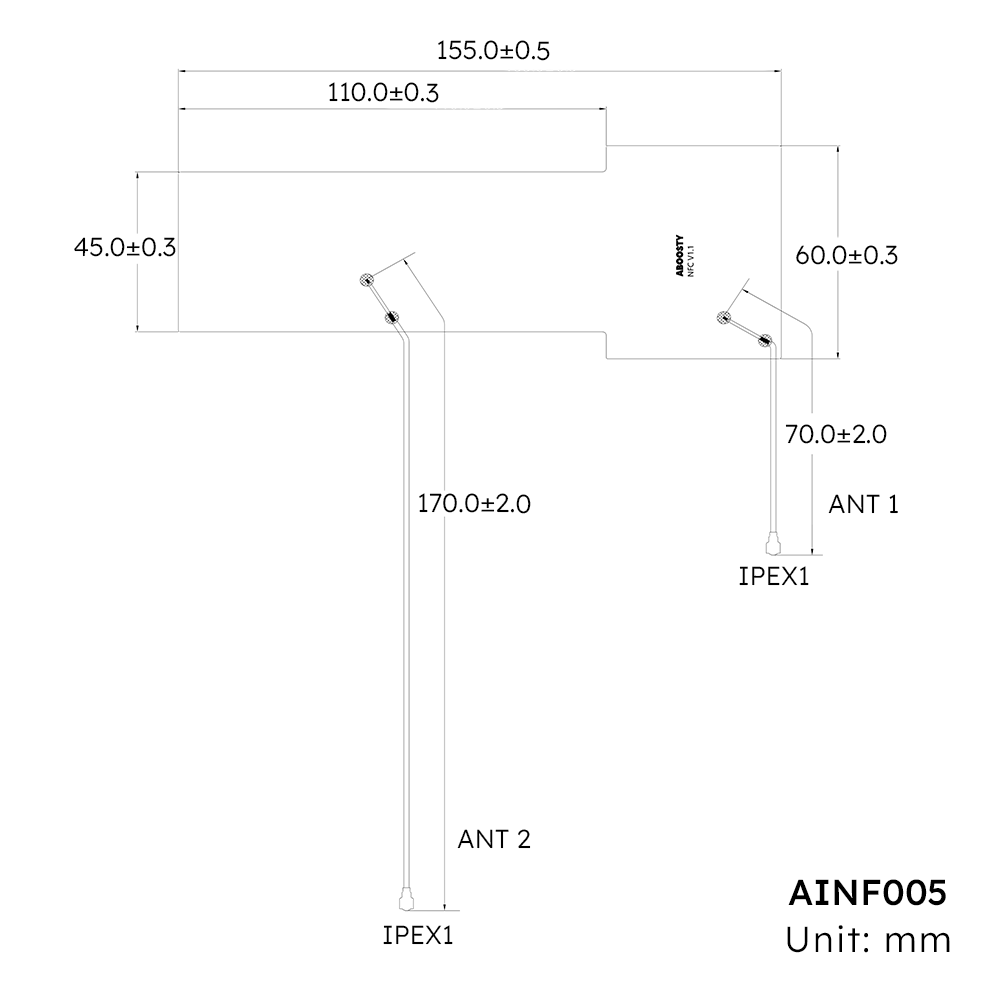

AINF005 NFC 2×2 MIMO Antenna Mechanical Dimensions 155×60mm

AINF005- Embedded MIMO NFC antenna for consumer electronics and logistics applications

155×60mm NFC 2×2 MIMO antenna for industrial IoT devices

AINF005

AINF005 | 13.56 MHz Adhesive 2×2 MIMO 155x60mm Embedded NFC FPC Antenna

NFC

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

AINF005 | 13.56 MHz Adhesive 2×2 MIMO 155x60mm Embedded NFC FPC Antenna

Product Overview

Key Features

Description

Specification

Applications

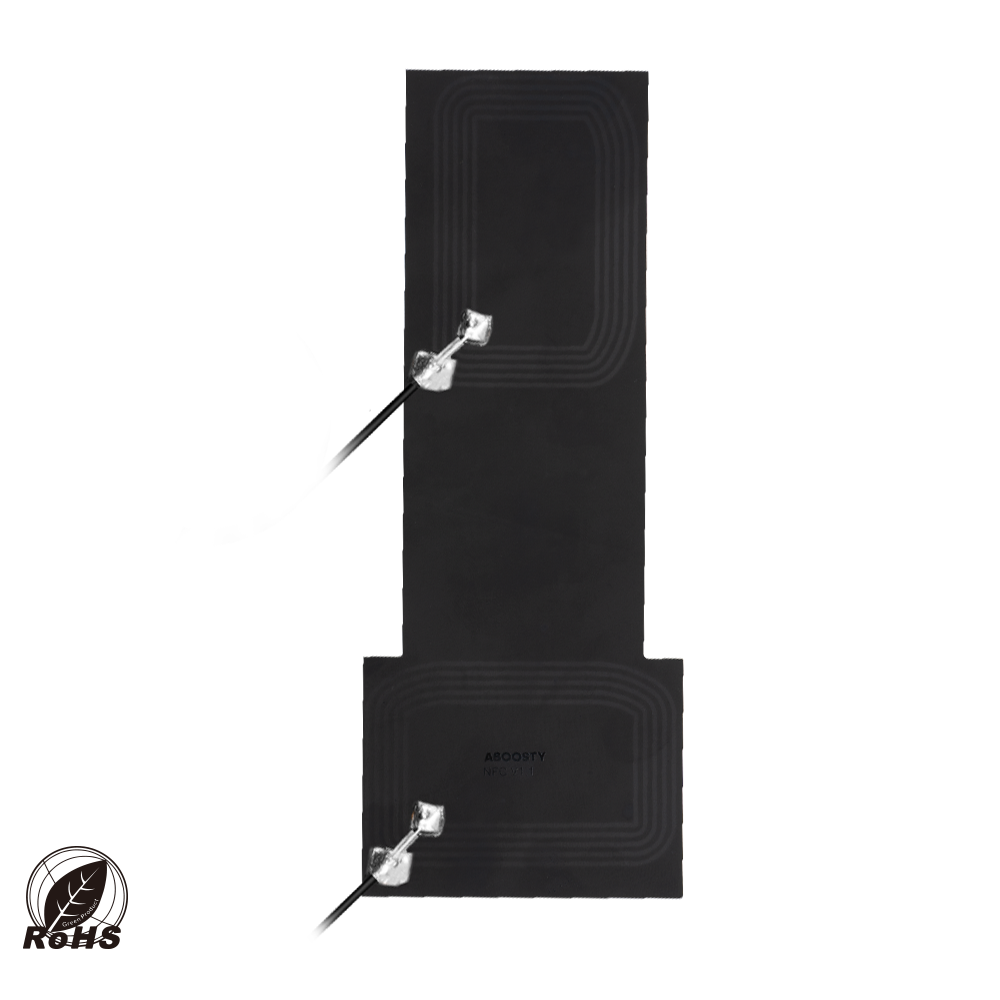

High-performance NFC 2×2 MIMO antenna with 155×60mm FPC structure, dual cable design, adhesive mounting, optimized for IoT and industrial applications, with OEM/ODM customization support.

Large 155×60mm form factor for extended NFC range and performance

2×2 MIMO configuration for improved reliability and data throughput

Dual cable lengths (70mm + 170mm) for flexible device integration

IPEX connectors and RG1.13 cables for secure RF connectivity

3M adhesive installation supporting quick assembly

Optimized for 13.56 MHz multi-antenna NFC communication

Supports custom design, rapid prototyping, and scalable OEM/ODM production

Reliable manufacturing quality control and RF testing system

Verified anechoic chamber test results for radiation pattern consistency

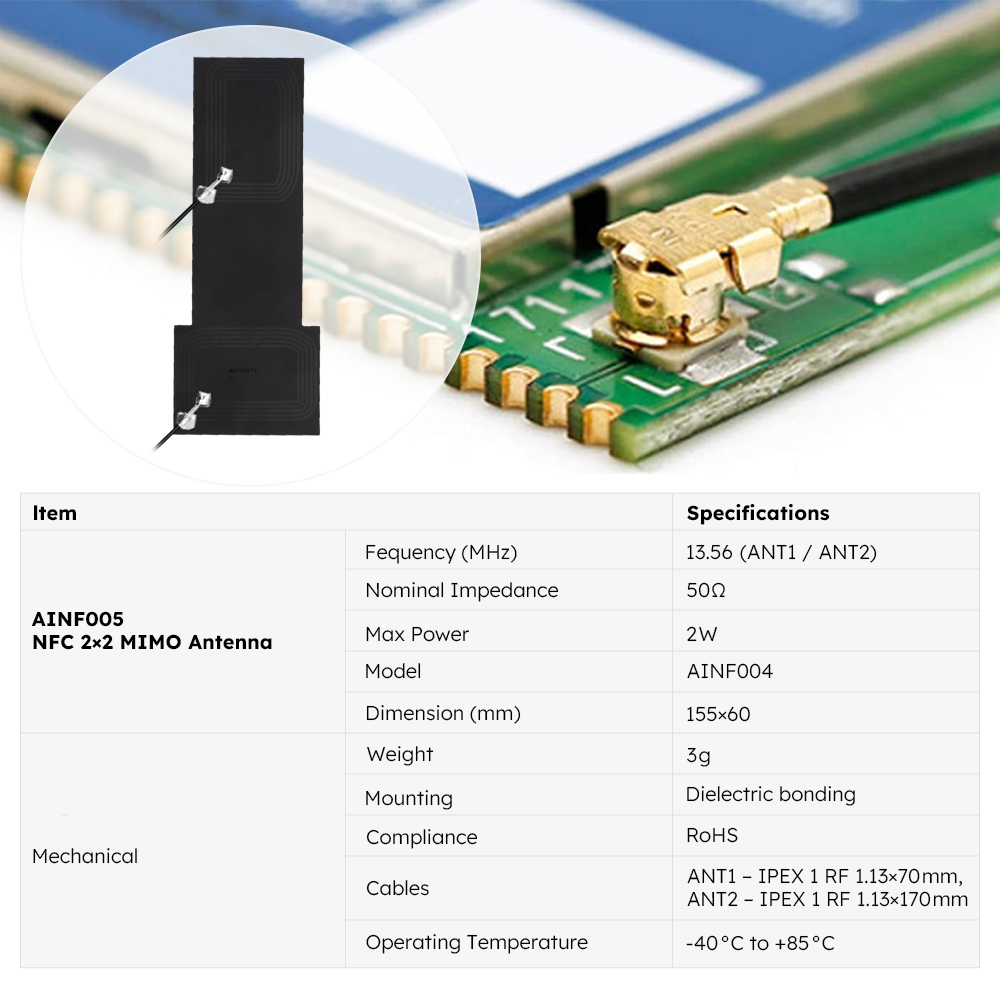

Operating Frequency: 13.56 MHz (HF band, compliant with ISO 14443 / ISO 15693 standards)
Dimensions: Φ155x60mm

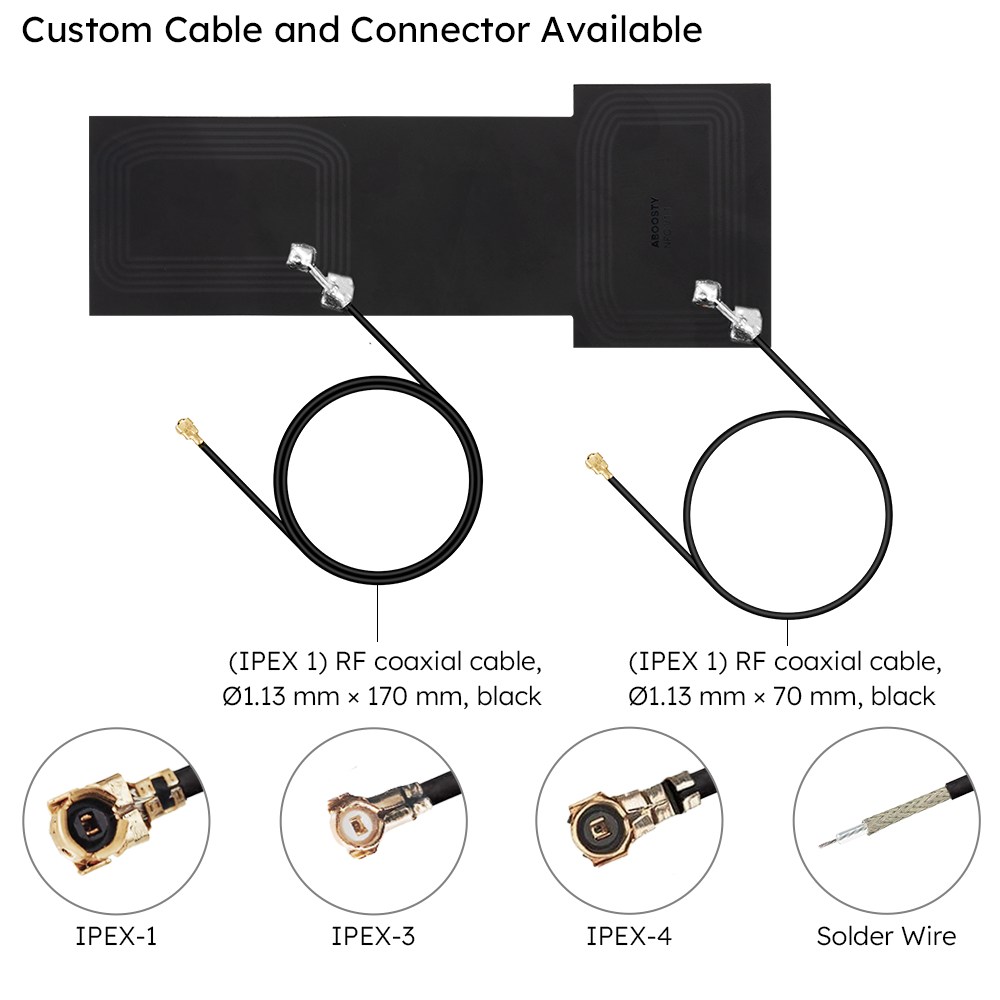

ANT 1 Antenna Cable ：Default IPEX 1 RF 1.13 black coaxial cable ( Ø 1.13 x 70 mm) , customizable.
ANT 2 Antenna Cable ： Default IPEX 1 RF 1.13 black coaxial cable ( Ø 1.13 x 170 mm) , customizable.
RF Power: 2 W
REACH / RoHS Compliant

ABOOSTY AINF005 is a NFC 2×2 MIMO FPC antenna, engineered for advanced multi-antenna NFC applications in IoT devices, industrial terminals, access control, and payment systems. Featuring dual cable lengths (L70CM1 + L170CM1), IPEX connectors, and 3M adhesive backing, it enables flexible installation, strong MIMO performance, and robust signal stability. Optimized for engineers requiring multi-path reduction, enhanced reliability, and scalable OEM/ODM antenna integration.

Rapid antenna sample creation, flexible customization, high-volume production, and reliable delivery with advanced testing equipment and quality control by ABOOSTY.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

155

Width (mm)

Height (mm)

Product Weight (g)

3.0

Freq. (MHz)

13.56

Technology Type

NFC

Operating Temperature (℃)

-40°C to +85°C

Markets

Connected Health, Smart Cities, Mobile Communication, Others, Smart Industrial, Mobility and Infrastructure

Other Attributes

N/A

Antenna Type

Inductive Loop

Radiation Pattern

Near Field Coupling

Polarity

Linear

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

N/A

Antenna Connector Type

N/A

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging

Retail and Payment Terminals FOR Consumer payment systems (POS, mobile wallets)
Public and Interactive Displays Such as Digital Signage
Smart logistics and warehouse systems with NFC authentication
Consumer electronics (gaming consoles, smart TVs with NFC)
Wearable Smart Devices ：Smart appliances with NFC control
Device Tracking and ID Systems :　Industrial handheld readers for inventory management
Access Control ：IoT gateways requiring NFC authentication
IoT devices requiring robust MIMO NFC communication

Part Number

User Story

Model

Description

Note

AINF005

155×60mm 2×2 MIMO NFC antenna with dual cable lengths(L70CM1+L170CM1).

M01-0401340R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
