ABOOSTY AINF004 38x37mm Adhesive NFC FPC Antenna – High-Performance Embedded Antenna for smart payment

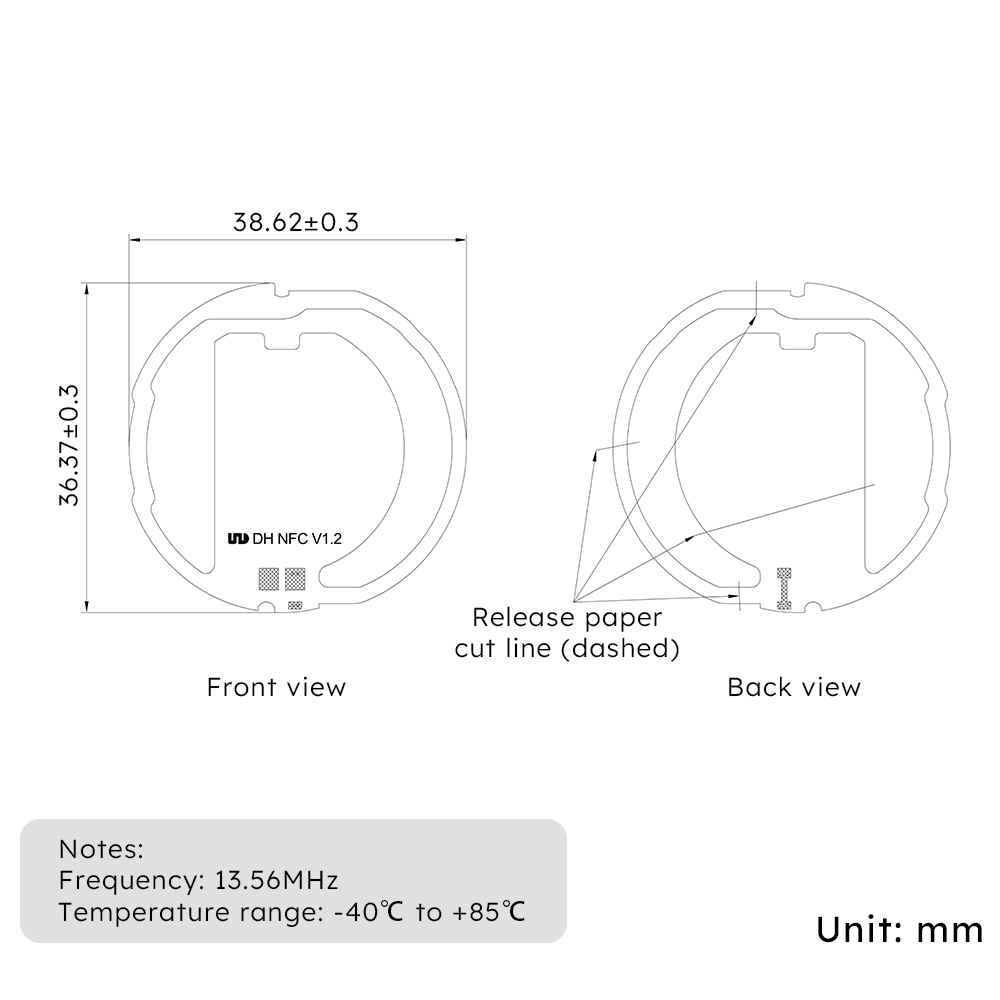

AINF004 NFC Antenna Mechanical Dimensions 38×37mm

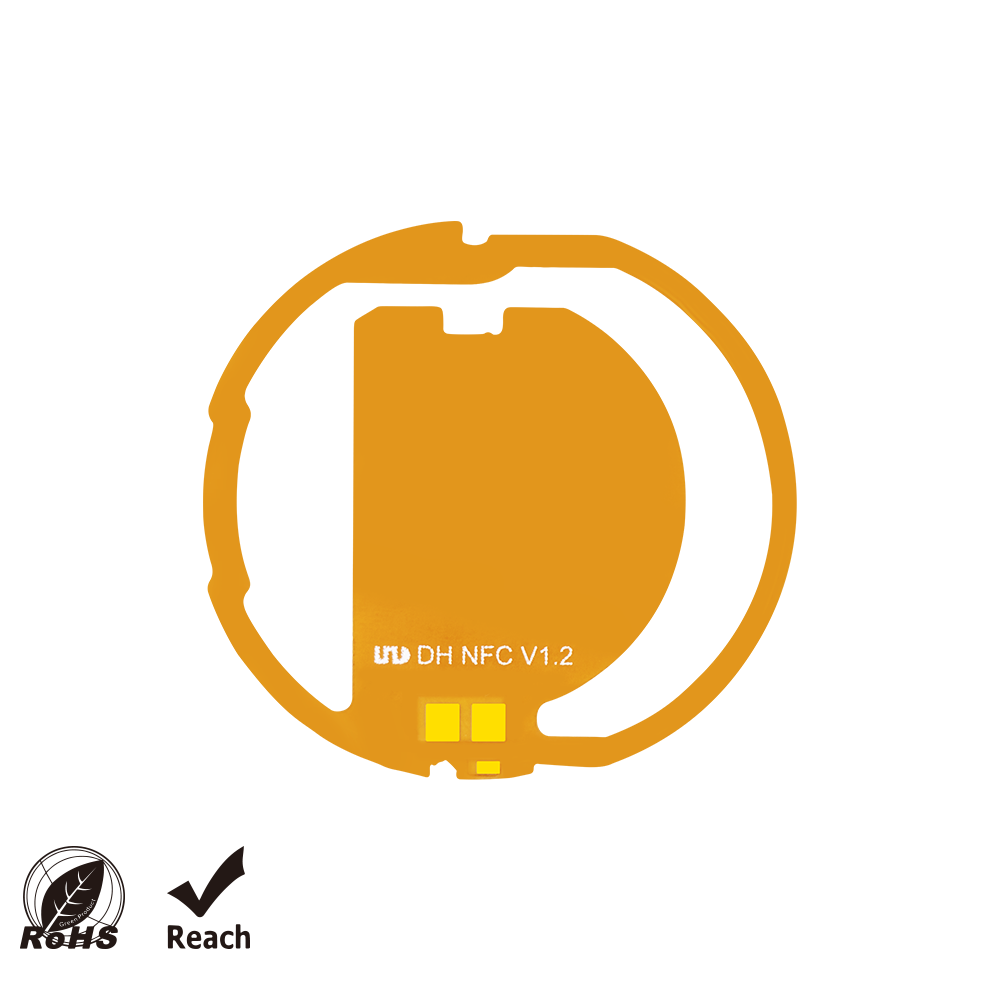

Compact FPC NFC antenna for wearables and handheld terminals Complied with RoHs and Reach

AINF004

AINF004 | 13.56 MHz Adhesive Circular 38x37mm Embedded NFC FPC Antenna

NFC

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

AINF004 | 13.56 MHz Adhesive Circular 38x37mm Embedded NFC FPC Antenna

Product Overview

Key Features

Description

Specification

Applications

Compact 38×37mm NFC antenna offering stable near-field communication performance, low-profile FPC design, easy adhesive mounting, and OEM/ODM customization for scalable manufacturing.

Ultra-compact 38×37mm form factor for space-limited designs

Flexible FPC structure supporting diverse device integration

3M adhesive backing for easy and reliable installation

Optimized for 13.56 MHz NFC communication with stable impedance

Reach/RoHS Compliant

Proven radiation performance via anechoic chamber testing

Custom tuning, OEM/ODM design, and prototyping support

Reliable manufacturing quality control and RF testing system

Operating Frequency: 13.56 MHz (HF band, compliant with ISO 14443 / ISO 15693 standards)
Dimensions: Φ38x37mm

RF Power: 10 W

REACH / RoHS Compliant

ABOOSTY AINF004 is a embedded NFC FPC antenna, designed for reliable performance in IoT devices, smart payment terminals, wearable electronics, and industrial handhelds. It ensures low-profile integration, strong RF stability, and simplified installation. Ideal for engineers seeking optimized impedance matching, reduced detuning effects, and consistent performance across environments. Supports OEM/ODM antenna design, prototyping, and scalable production to meet industrial demands.

Rapid antenna sample creation, flexible customization, high-volume production, and reliable delivery with advanced testing equipment and quality control by ABOOSTY.

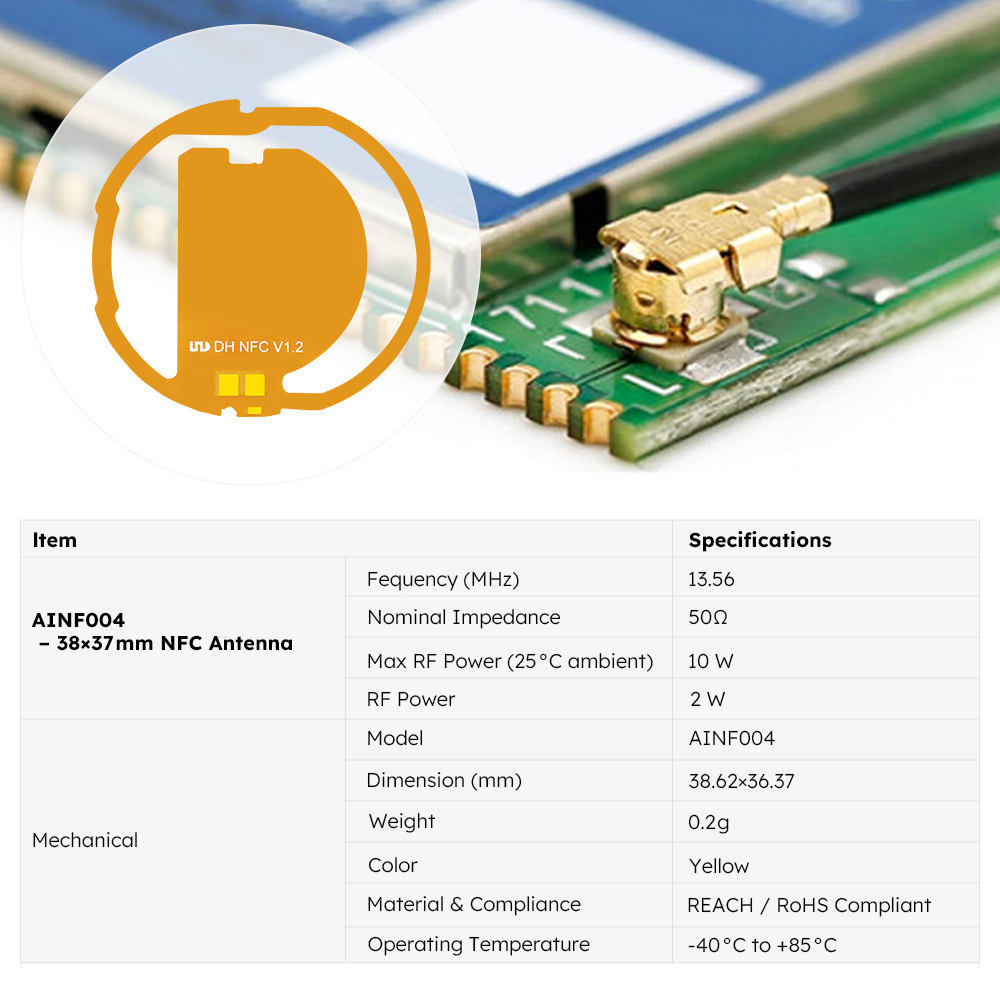

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

38.62

Width (mm)

36.37mm

Height (mm)

Product Weight (g)

0.2

Freq. (MHz)

13.56

Technology Type

NFC

Operating Temperature (℃)

-40°C to +85°C

Markets

Connected Health, Smart Cities, Mobile Communication, Others, Smart Industrial, Mobility and Infrastructure

Other Attributes

N/A

Antenna Type

Inductive Loop

Radiation Pattern

Near Field Coupling

Polarity

Linear

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

N/A

Antenna Connector Type

N/A

Cable Type

N/A

Cable Length (mm)

N/A

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging

Retail and Payment Terminals FOR Consumer payment systems (POS, mobile wallets)
Public and Interactive Displays Such as Digital Signage
Mobile Devices :Handheld terminals for logistics and ticketing
Sharing / Pairing
Wearable Smart Devices ：Smart appliances with NFC control
Device Tracking and ID Systems :　Industrial handheld readers for inventory management
Access Control ：IoT gateways requiring NFC authentication
Industrial handheld readers RFID for inventory management

Part Number

User Story

Model

Description

Note

AINF004

38×37mm NFC FPC Antenna for Embedded IoT Devices

M01-0401340R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
