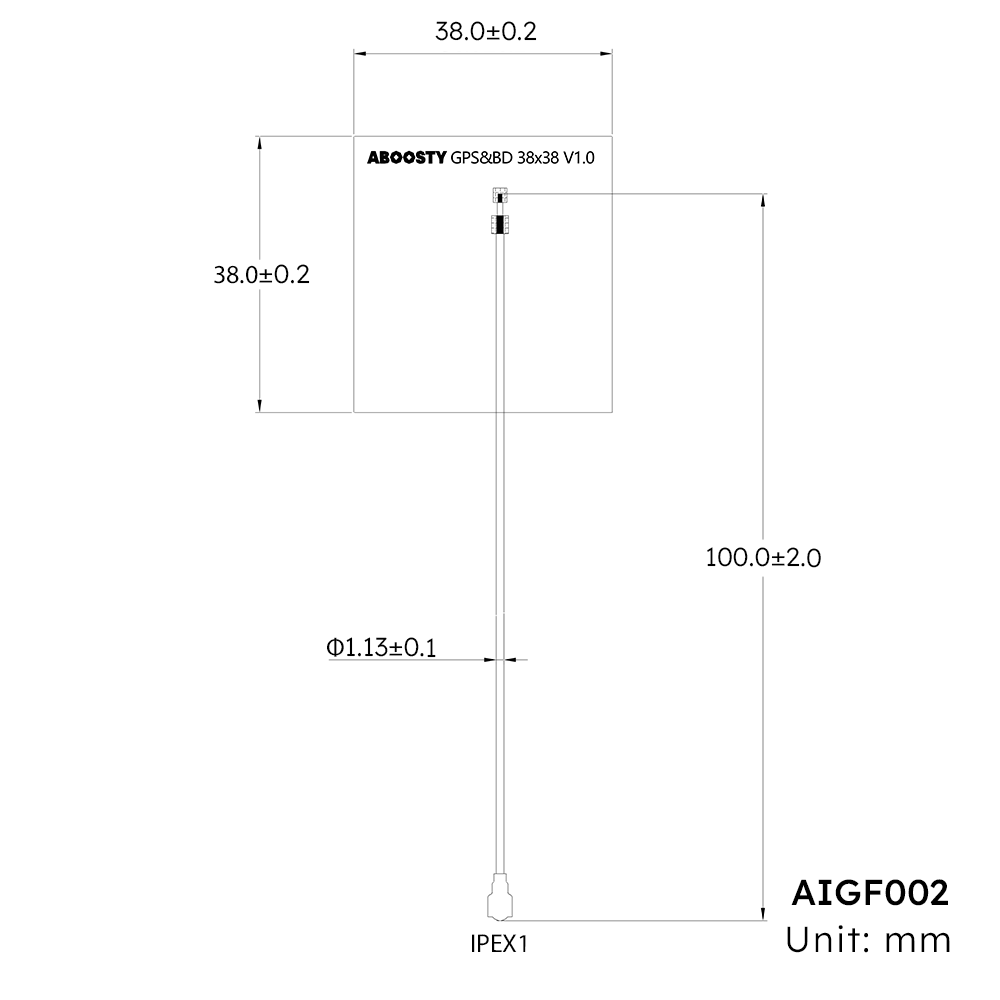

AIGF002 GNSS FPC Antenna Dimensions 38x38mm

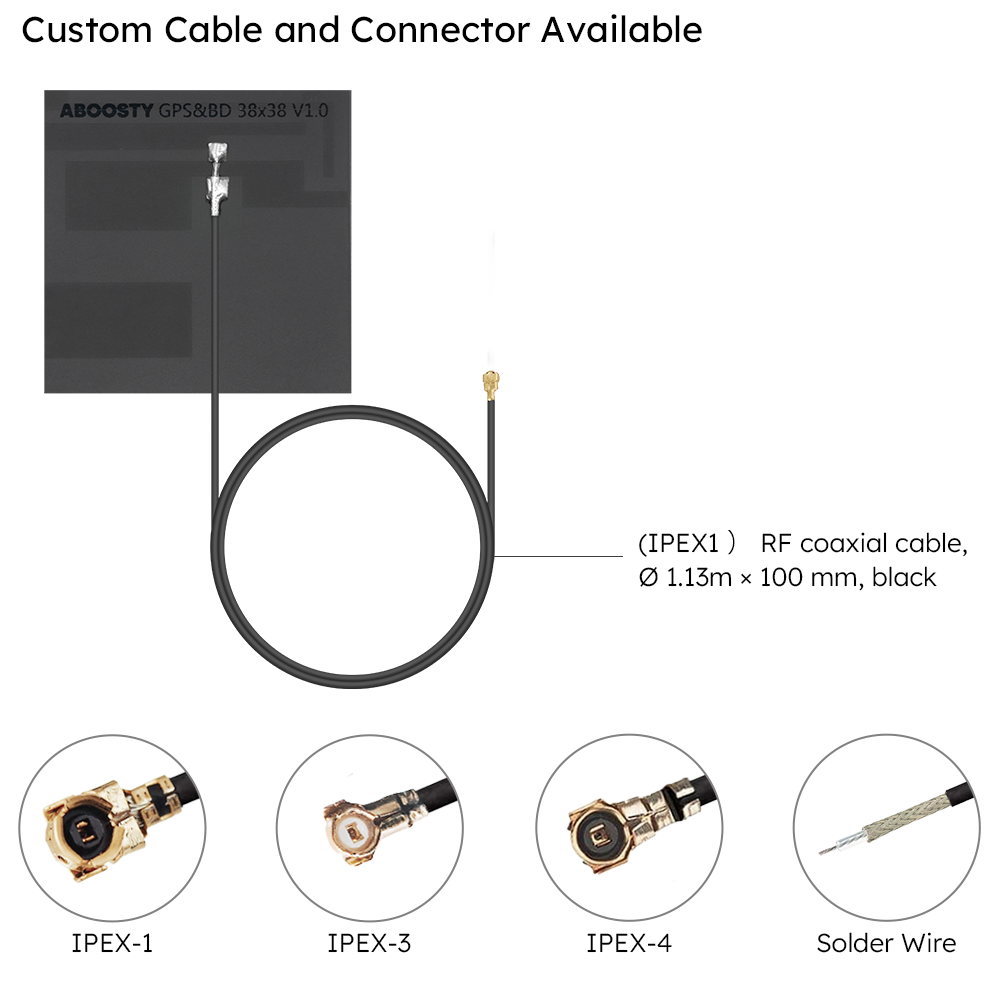

RG 1.13 Cable IPEX Connector GNSS Antenna with cable length and connector type customizable

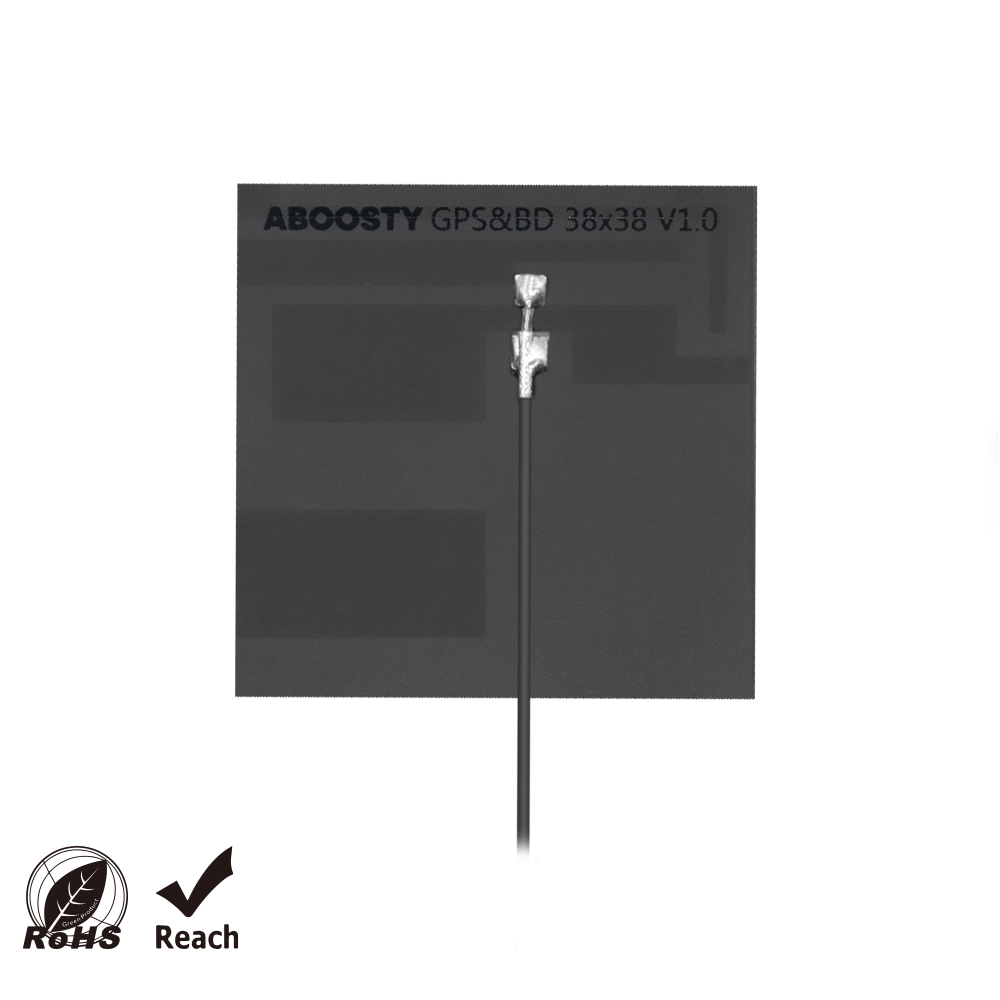

AIGF002 GNSS Antenna in IoT Device with Reach and RoHS Complaint
AIGF003

Adhesive GPS L1/Beidou B1/Galileo G1 Embedded FPC Antenna- 41x38mm, Ø 1.13 x 100 mm

GNSS/GPS
Single Internal Antennas
Embedded Antennas
Download
Datasheet
Buy Samples
Coming soon
Contact Us​

Aboosty is ready to help you tackle various wireless issues.

Adhesive GPS L1/Beidou B1/Galileo G1 Embedded FPC Antenna- 41x38mm, Ø 1.13 x 100 mm

SKU: AIGF003 Categories: , , Tags: , , , , , Brand:

Product Overview

Key Features
Description
Specification
Applications

Max Efficiency: up to 56.13%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

Adhesive-mount, multi-constellation L1+B1+G1 GNSS FPC antenna for IoT, M2M telemetry, and smart agriculture devices. OEM/ODM customizable.



Operates across L1+B1+G1 GNSS bands (1556-1606 MHz) for multi-constellation support
Omnidirectional linear polarization ensures robust satellite signal acquisition even in dense urban or agricultural environments
Compact 41x38mm design with adhesive mounting for versatile device integration
High efficiency (56.13%), peak gain -1.03 dBi
RG 1.13 coaxial cable with IPEX connector, length customizable

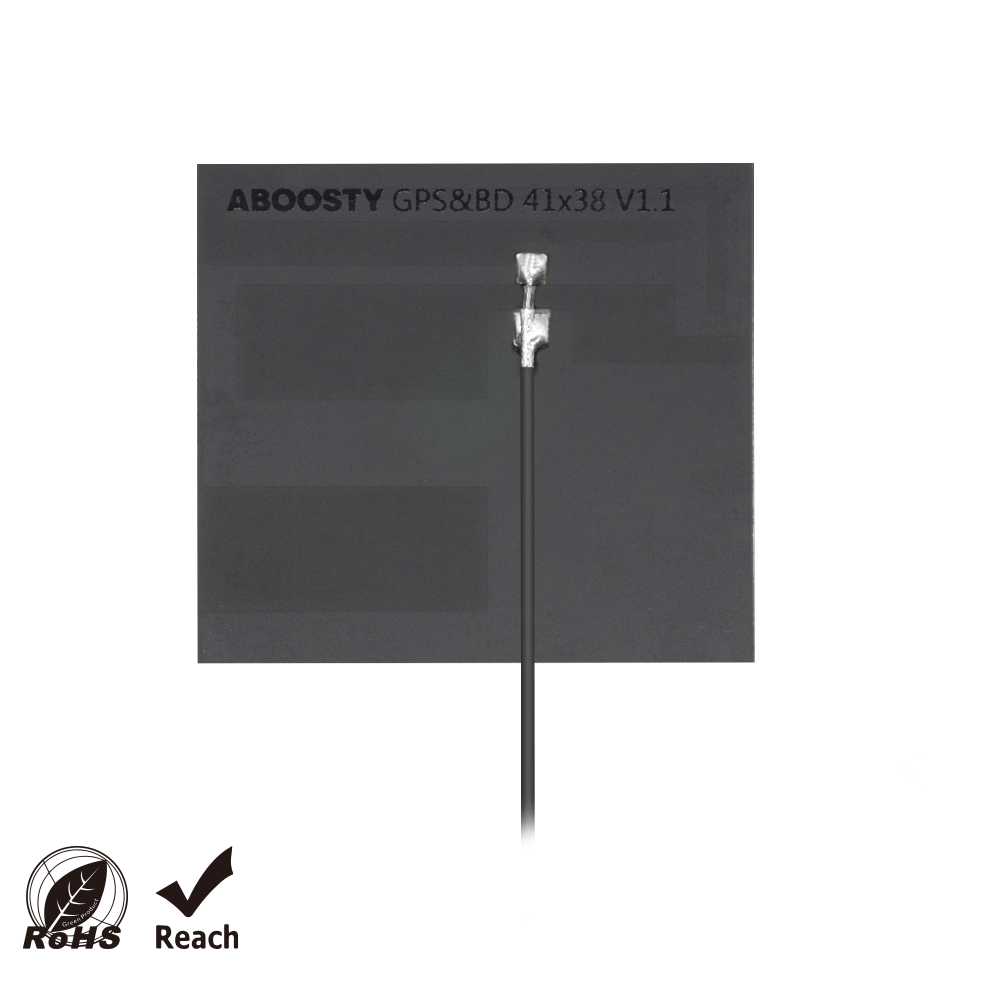

RoHS compliant, suitable for harsh environments and long-term operation
Ideal for smart agriculture, M2M telemetry, IoT sensors, smart city environmental monitoring, and consumer tracking devices

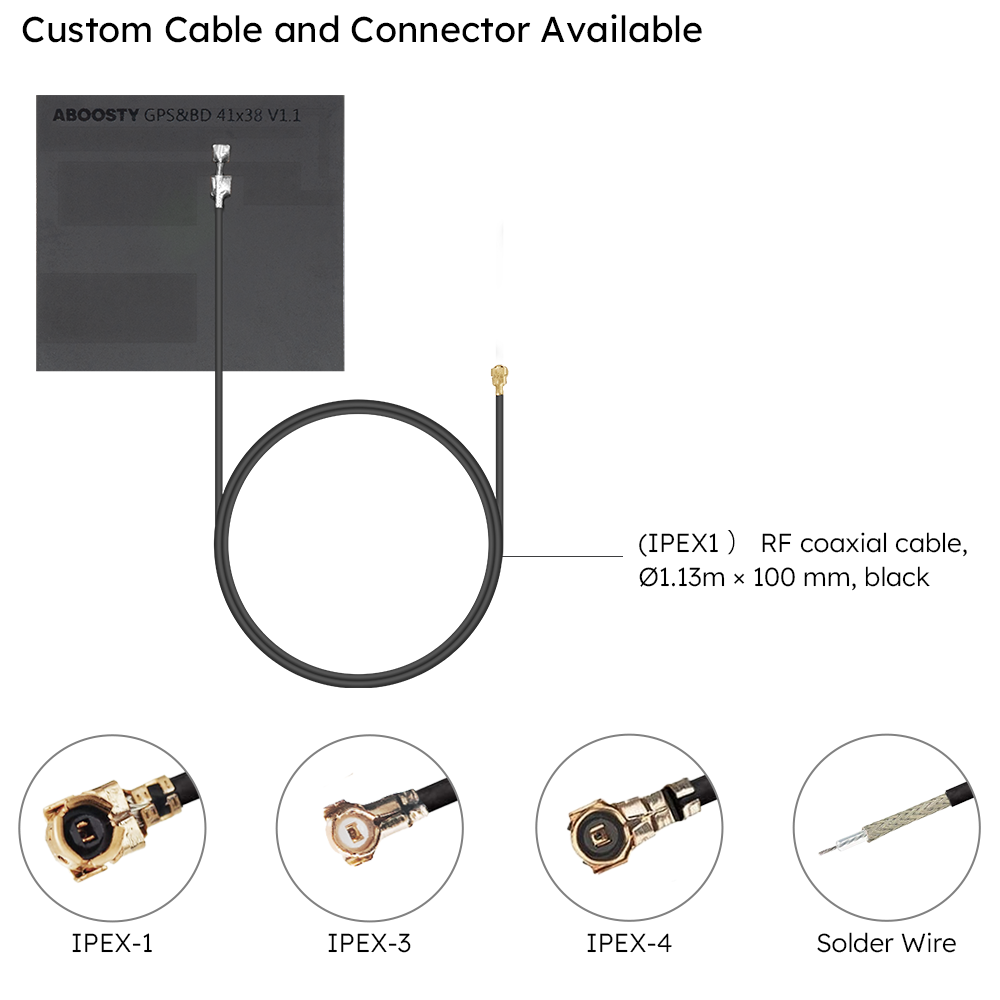

RG 1.13 coaxial cable with IPEX connector, cable length customizable

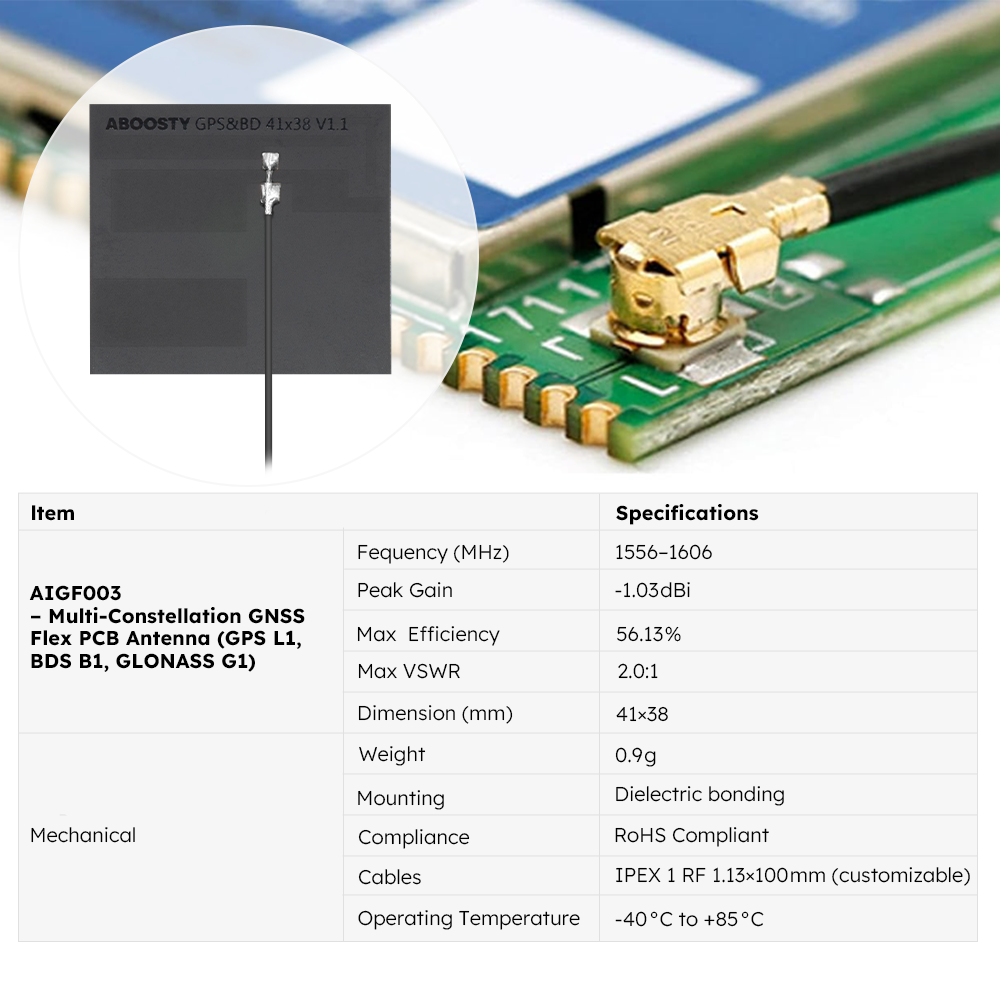

  1. Operating Frequency: 1556-1606 MHz

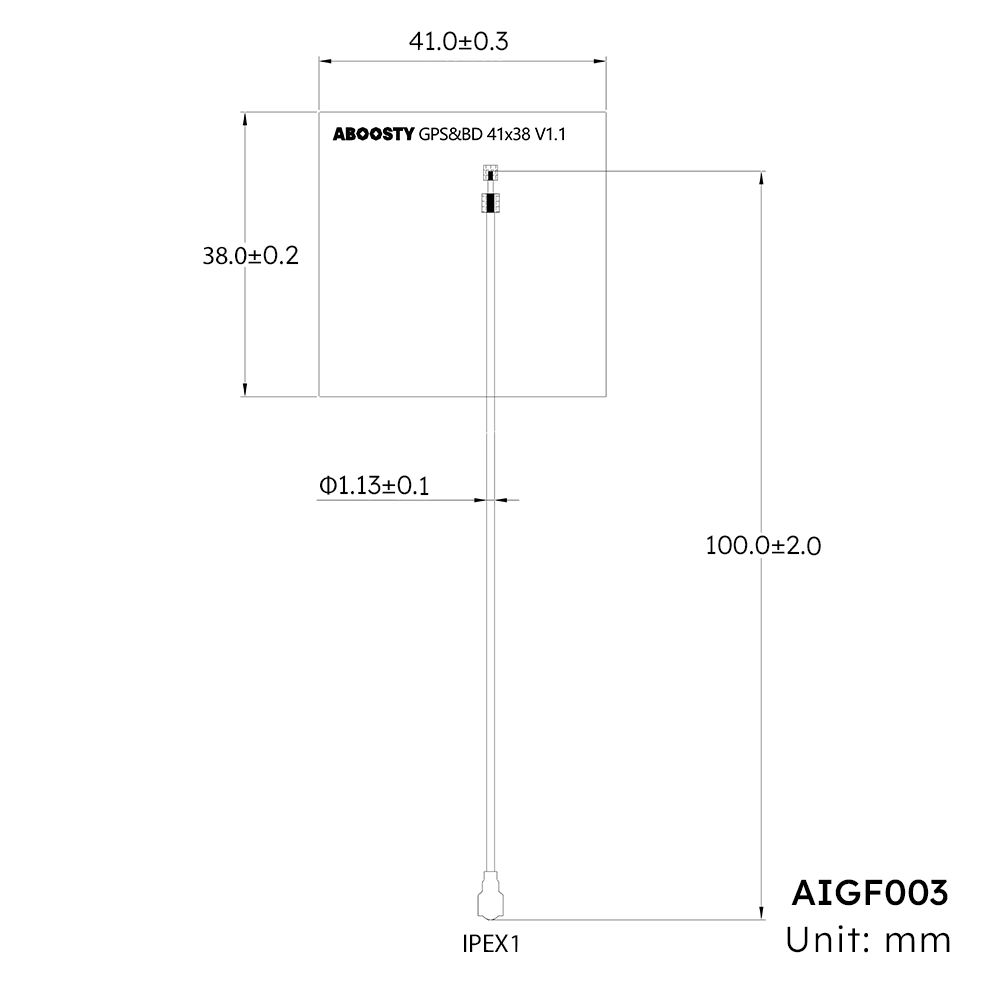

  2. Dimensions: 41x38mm, Ø 1.13 x 100 mm
  3. Multi-constellation coverage & GNSS Support

GPS L1：1575.42 ± 1.023 MHz

BeiDou B1：1561.098 ± 2.046 MHz

Galileo G1：1575.42 ± 4.092 MHz



he ABOOSTY AIGF003 L1+B1+G1 41x38mm GNSS FPC Antenna is engineered for industrial IoT, M2M telemetry, smart agriculture sensors, and consumer tracking devices. Featuring adhesive mounting, linear polarization, and a 100mm RG 1.13 IPEX cable, it operates across L1+B1+G1 GNSS frequencies (1556-1606 MHz), supporting GPS, BeiDou, Galileo multi-constellation reception. With RoHS compliance, the antenna ensures robust signal acquisition in challenging environments, high first-time connection rates, and reliable satellite communication. Suitable for OEM/ODM customization, including cable length and connector options.


Package Included: 1 x  AIGF003 GNSS FPC Antenna



LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
41
Width (mm)
38
Height (mm)
0.3
Product Weight (g)
0.9
Freq. (MHz)
1550-1610
Technology Type
GPS, GNSS/GPS, GPS/BDS/GLONASS
Frequency Bands
L1, B1, G1
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Dipole
Connector Style
Straight
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
57.35%
Peak Gain
-0.79dBi
VSWR
2.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
100
Mechanical Style
FPC
Mounting Style
Adhesive Mount
Customization Option
Logo, Packaging, Cables and Connectors
  • Satellite Navigation Receivers
  • Geodetic Surveying and Mapping
  • Channel Surveying and Mapping
  • Precision Agriculture :Soil moisture and crop monitoring sensors
  • Marine Surveying
  • Medical Devices
  • Asset and Fleet Tracking :Personal navigation devices, pet trackers, portable GNSS-enabled electronics
  • Oil, Gas, and Mining Industries
  • M2M Telemetry: Remote industrial meters, pipeline monitoring devices
  • Hand-held/Portable Devices
Part Number
User Story
Model
Description
PN
Note
AIGF003
Adhesive L1 GPS + B1 BeiDou + G1 Galileo Active GNSS Antenna, 41×38 mm, 100 cm Ø1.13 mm Coaxial Cable, IPEX Connector – Multi-GNSS for IoT & Automotive.
M01-0300360R0A
Customization supported
