Adhesive GPS L1/Beidou B1/Galileo G1 Embedded FPC Antenna- 38x38mm, Ø 1.13 x 100 mm

SKU: AIGF002 Categories: , , Tags: , , , , , Brand:

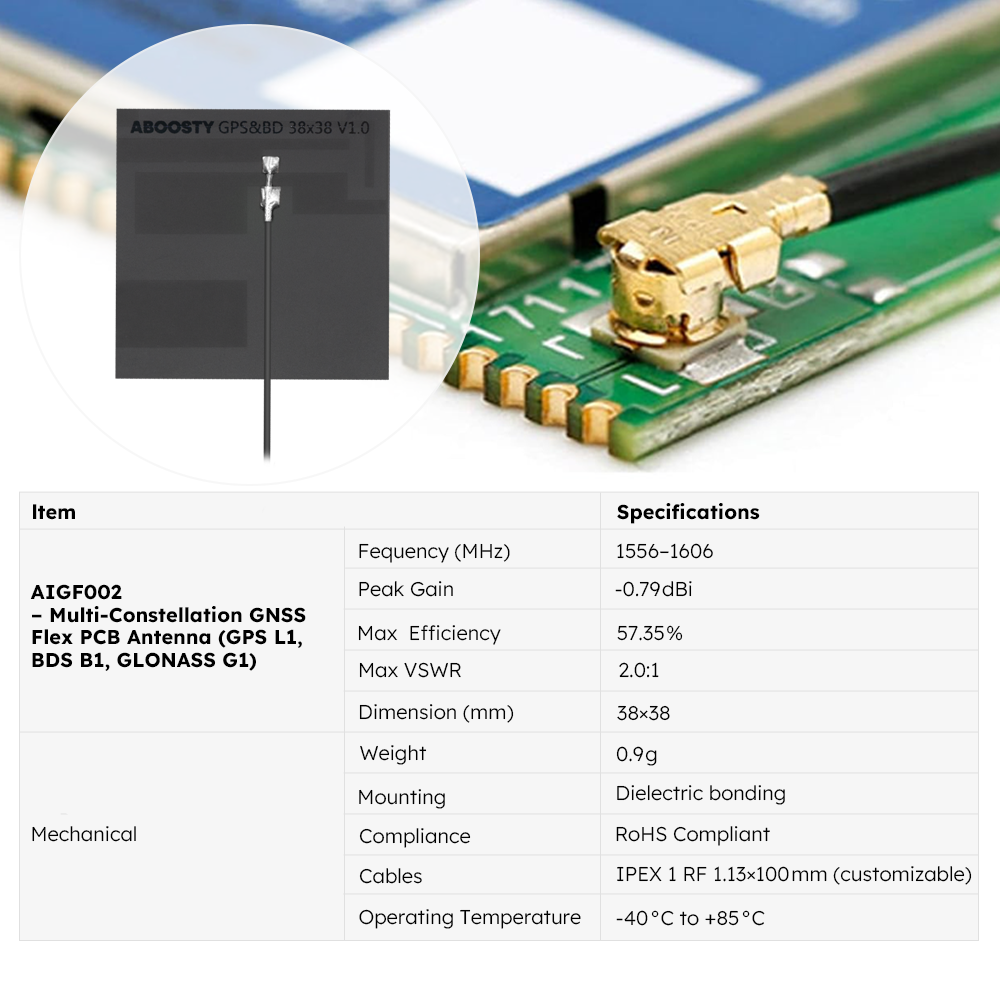

Product Overview

Key Features
Description
Specification
Applications

Max Efficiency: up to 57.35%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

Adhesive-mount, multi-constellation L1+B1+G1 GNSS FPC antenna for IoT, M2M telemetry, and smart agriculture devices. OEM/ODM customizable.



Supports L1+B1+G1 GNSS frequencies (1556-1606 MHz) for multi-constellation reception
Omnidirectional linear polarization ensures robust satellite signal acquisition
Compact 38x38mm design with adhesive mounting for easy integration in IoT devices
High efficiency (57.35%) and peak gain -0.79 dBi
RG 1.13 coaxial cable with IPEX connector, length customizable
RoHS compliant, suitable for harsh environments and long-term operation
Ideal for M2M telemetry, Smart Agriculture, Smart City, and consumer tracking applications
  1. Operating Frequency: 1556-1606 MHz
  2. Dimensions: 98.32 x 17.2 mm
  3. Multi-constellation coverage & GNSS Support

    • GPS L1：1575.42 ± 1.023 MHz

    • BeiDou B1：1561.098 ± 2.046 MHz

    • Galileo G1/E1：1575.42 ± 4.092 MHz



The ABOOSTY AIGF002 L1+B1+G1 38x38mm GNSS FPC Antenna is designed for embedded IoT, M2M telemetry, smart agriculture, and smart city devices. Featuring adhesive mounting, omnidirectional linear polarization, and RG 1.13 IPEX cable, it operates across the L1+B1+G1 GNSS bands (1556-1606 MHz), providing reliable signal reception. RoHS compliant and customizable for OEM/ODM projects, the antenna ensures high first-time connection rates, durability in industrial environments, and full support for GPS, BeiDou, and Galileo multi-constellation applications.


Package Included: 1 x  GNSS FPC Antenna



LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
38
Width (mm)
38
Height (mm)
0.3
Product Weight (g)
0.9
Freq. (MHz)
1550-1610
Technology Type
GPS, GNSS/GPS, GPS/BDS/GLONASS
Frequency Bands
L1, B1, G1
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Dipole
Connector Style
Straight
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
57.35%
Peak Gain
-0.79dBi
VSWR
2.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
100
Mechanical Style
FPC
Mounting Style
Adhesive Mount
Customization Option
Logo, Packaging, Cables and Connectors
  • Satellite Navigation Receivers
  • Geodetic Surveying and Mapping
  • Channel Surveying and Mapping
  • Precision Agriculture
  • Marine Surveying
  • Medical Devices
  • Asset and Fleet Tracking
  • Oil, Gas, and Mining Industries
  • M2M Applications
  • Hand-held/Portable Devices
Part Number
User Story
Model
Description
PN
Note
AICF002
ABOOSTY AIGF002 L1+B1+G1 38x38mm Embedded GNSS FPC Antenna with Adhesive Mount
M01-0300350R0A
Customization supported
