AIGF001

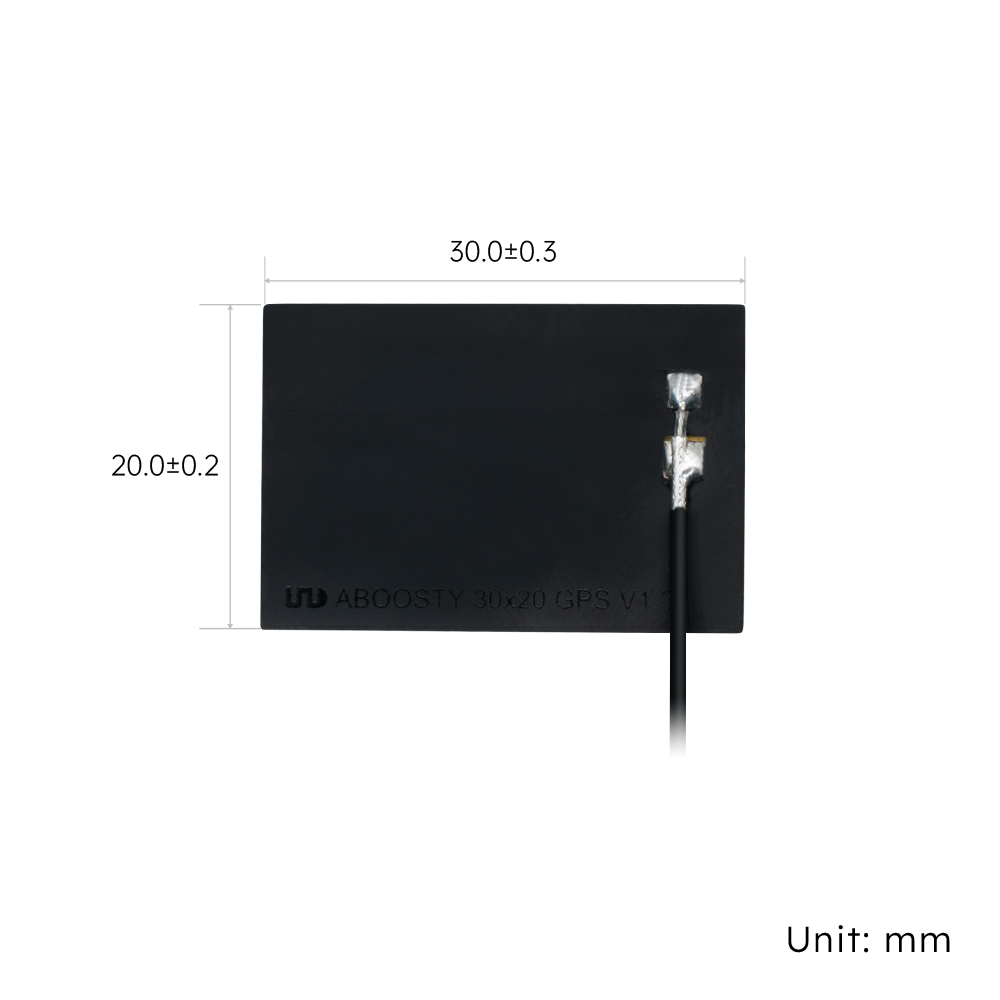

Adhesive GPS/Beidou/Galileo Embedded FPC Antenna- 30x20mm

GNSS/GPS

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive GPS/Beidou/Galileo Embedded FPC Antenna- 30x20mm

SKU: AIGF001 Categories: FPC Antennas, Internal Antennas Tags: 4G LTE, 5G NR, GPS, LPWAN, NB-IoT

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 82.17%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

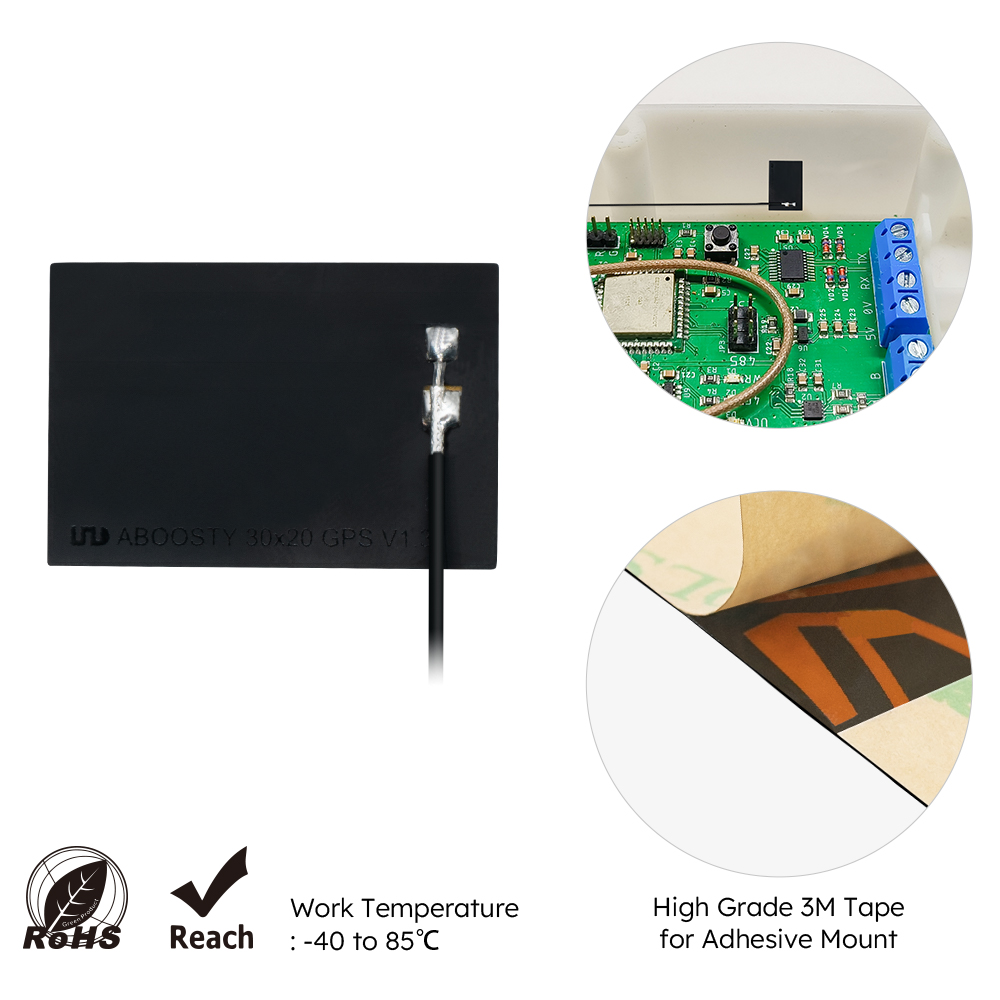

Flexible adhesive mount FPC antenna

Ultra-thin and compact design

Ground plane independent

Omni-directional with Worldwide Cellular, LTE bands

Customizable cable and connector options

REACH/RoHS compliant

Operating Frequency: 617-960 MHz | 1427-6000 MHz
Dimensions: 98.32 x 17.2 mm

The Aboosty AICF005 is a high-performance wideband FPC antenna designed for 5G/LTE applications across 617–960 MHz and 1427–6000 MHz frequency bands. With a compact 98.3×17.2mm form factor and 100cm cable, it’s ideal for embedded systems in electric vehicles, smart devices, and industrial IoT environments. Engineered for stable performance and easy integration into non-metallic surfaces.

Package Included: 1 x FPC Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.2

Product Weight (g)

0.7

Freq. (MHz)

1550-1610

Technology Type

GPS, GNSS/GPS, GPS/BDS

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others

Antenna Type

Dipole

Connector Style

Right Angle

Radiation Pattern

Omnidirectional

Polarity

Linear

Avg Efficiency

68.7

Peak Gain

4.17dBi

VSWR

14.0:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Satellite Navigation Receivers
Geodetic Surveying and Mapping
Channel Surveying and Mapping
Precision Agriculture
Marine Surveying
Medical Devices
Asset and Fleet Tracking
Oil, Gas, and Mining Industries
M2M Applications
Hand-held/Portable Devices

Part Number

User Story

Model

Description

Note

AICF004

5G 98.32 x 17.2 mm FPC Embedded Antenna

M01-0100090R0A

Customization supported
