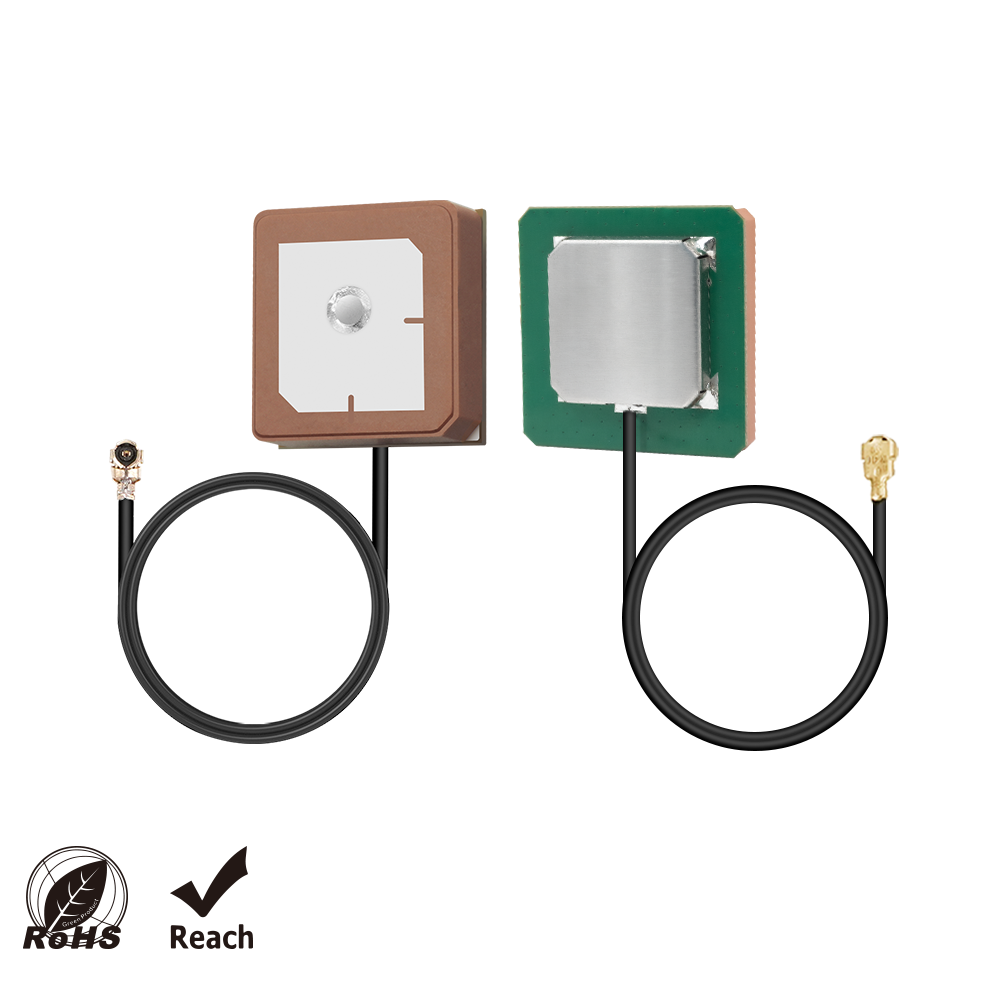

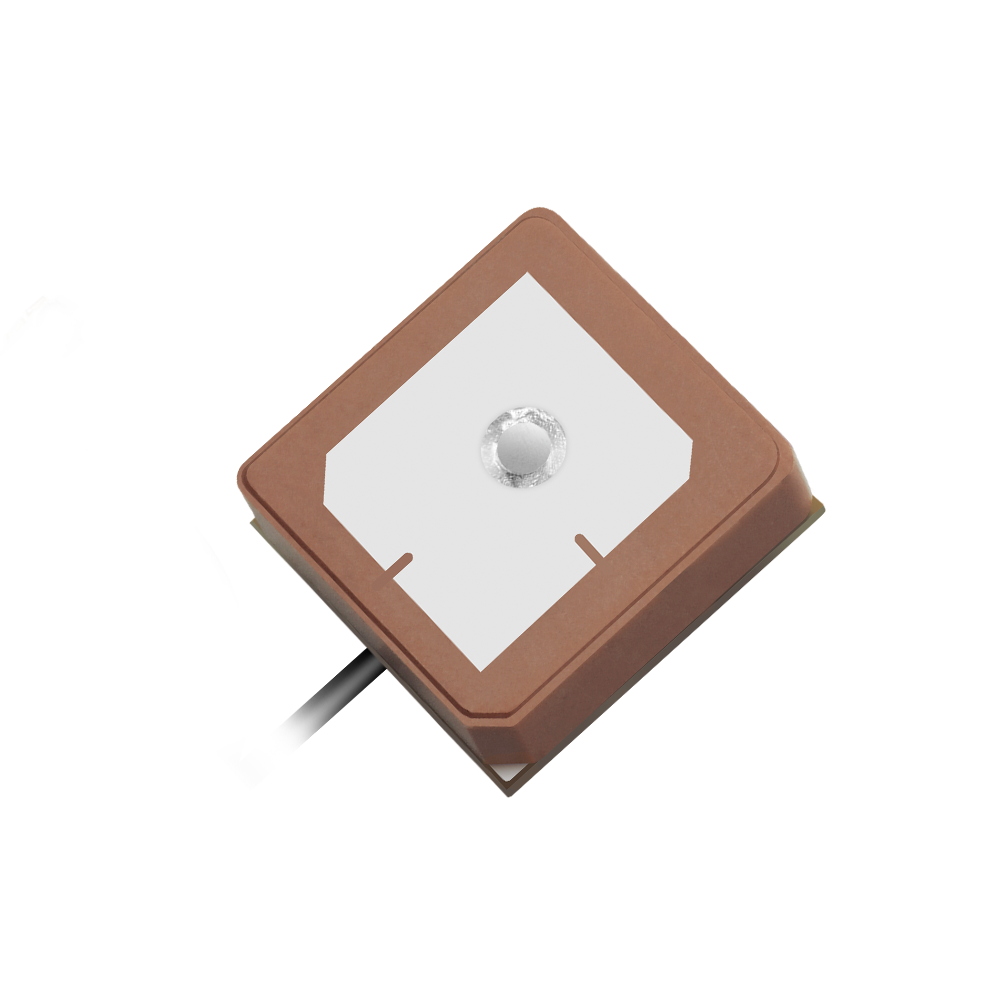

AIGC058 GPS Antenna Ceramic patch and PCB LNA view

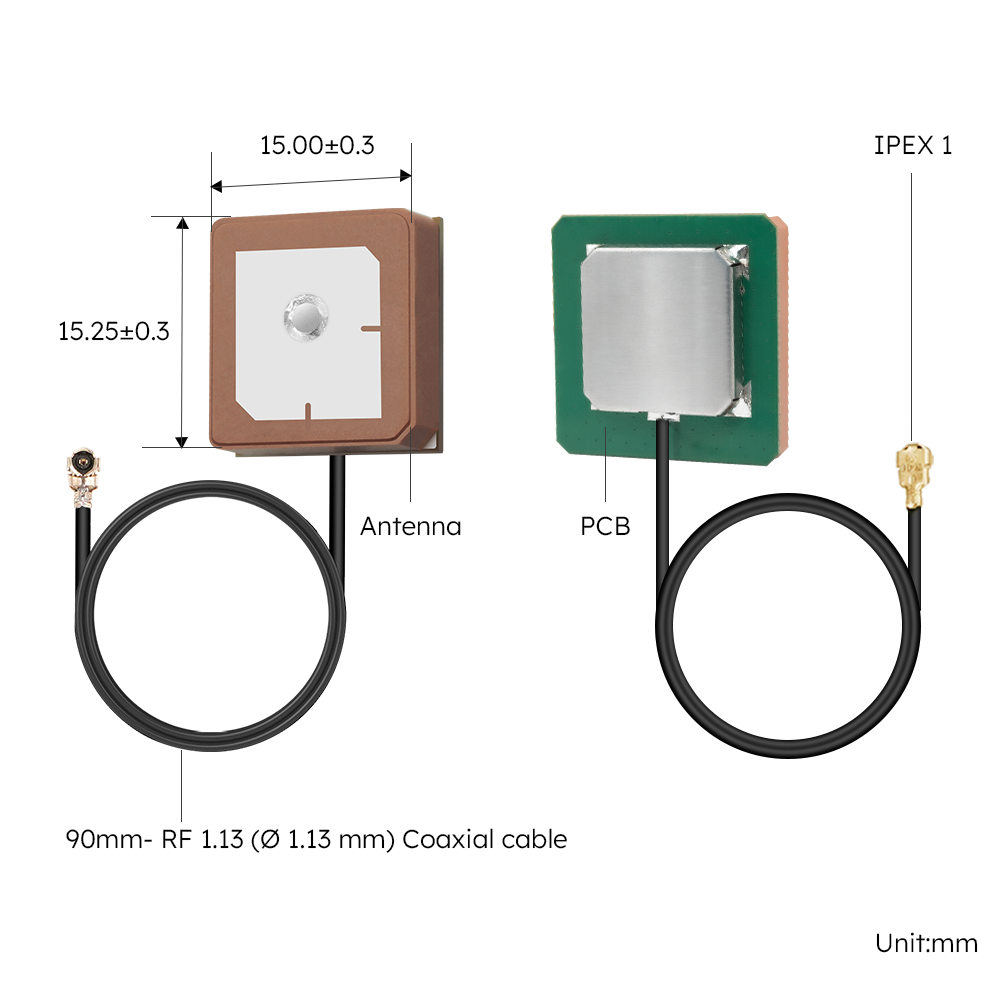

ABOOSTY AIGC058 GPS Antennas Mechanical drawing 15×15×4 mm PCB 15×15×0.6 mm

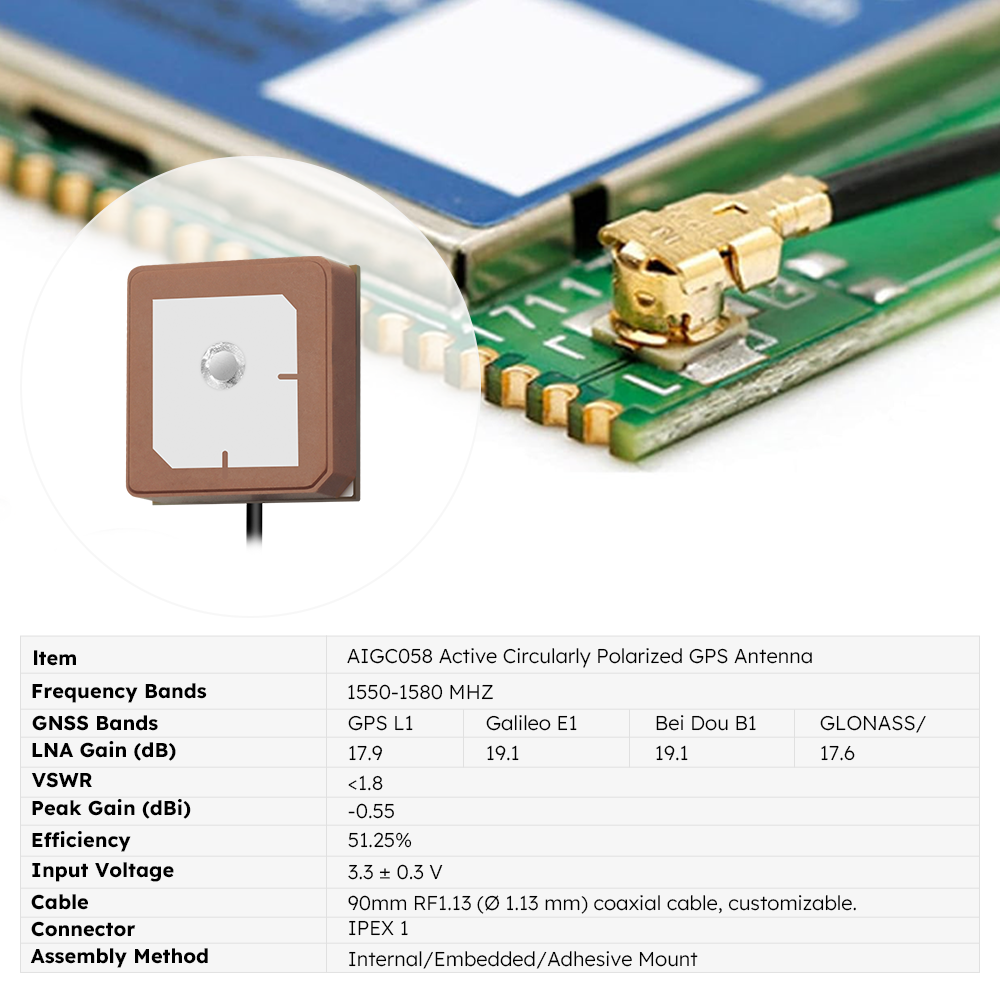

AIGC058 Active GPS Antenna Gain and efficiency across 1550–1580 MHz

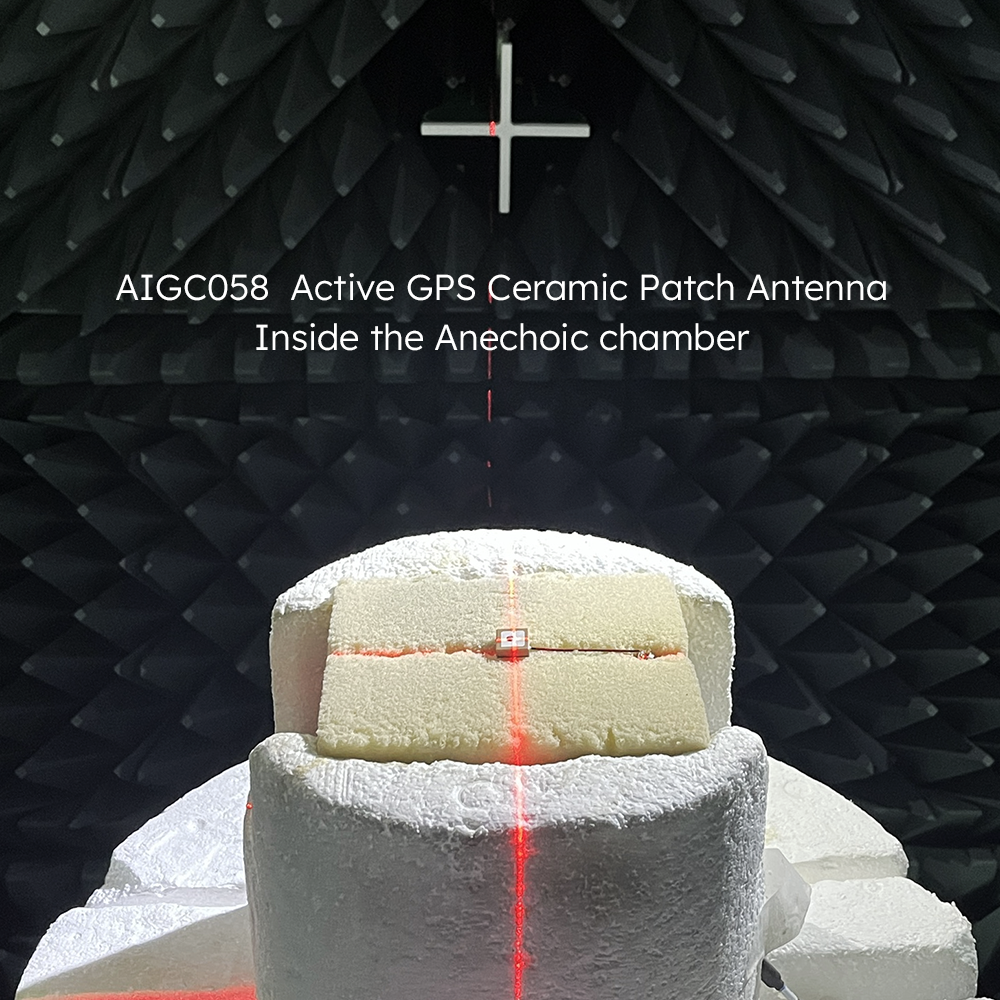

AIGC058 GNSS Antenna 3D radiation pattern test @ 1575 MHz in ABOOSTY lab
Gain and efficiency across 1550–1580 MHz
AIGC058 GPS Antenna Ceramic patch and PCB LNA view
ABOOSTY AIGC058 GPS Antennas Mechanical drawing 15×15×4 mm PCB 15×15×0.6 mm
AIGC058 Active GPS Antenna Gain and efficiency across 1550–1580 MHz
AIGC058 GNSS Antenna 3D radiation pattern test @ 1575 MHz in ABOOSTY lab
AIGC058

AIGC058 GNSS Circularly Polarized Active Ceramic Patch Antenna – multi-band GPS L1/E1/B1 antenna

GNSS/GPS
Single Internal Antennas
Embedded Antennas
Download
Datasheet
Buy Samples
Coming soon
Contact Us​

Aboosty is ready to help you tackle various wireless issues.

AIGC058 GNSS Circularly Polarized Active Ceramic Patch Antenna – multi-band GPS L1/E1/B1 antenna

Our 5G antennas offer an extreme boost to speed and significantly lower latency, whilst also boasting greater bandwidth.

SKU： AIGC058 分类： , , 标签： , , 品牌：

Product Overview

Key Features
Description
Specification
Applications

Connector: IPEX 1
Cable: 90 mm RF1.13
Input Voltage :3.3 ± 0.3 V

The ABOOSTY AIGC058 is a 15×15×4 mm active ceramic GPS antenna covering GPS L1, Galileo E1 and BeiDou B1 bands. Its RHCP polarization and integrated LNA provide strong signal stability and low noise for tracking and industrial applications. Fully supported by ABOOSTY’s OEM/ODM manufacturing and OTA/RF testing capabilities.

15×15×4 mm ceramic patch element with built-in LNA
Miniaturized, multi-system compatible
Multi-constellation support (GPS L1 / Galileo E1 / BeiDou B1)
Ground Plane Dependent
RoHS & Reach Compliant
50 Ω impedance, 3.3 V supply / 8 mA typical
RHCP polarization, axial ratio < 3 dB
Embedded or adhesive mount design with IPEX 1 connector
Proven performance in ABOOSTY anechoic chamber

Operating Frequency: 1550-1580 MHz
Covering Bands: GPS L1 (1575.42 MHz), Galileo E1, BeiDou B1 bands with RHCP polarization.
Dimensions: 15 x 15x 4 mm



Multi-band Embedded Ceramic Patch Antenna for Precision GPS Applications

ABOOSTY AIGC058 is an active embedded GNSS antenna optimized for high-accuracy tracking and navigation systems. The 15×15×4 mm ceramic patch operates on GPS L1 (1575.42 MHz), Galileo E1 and BeiDou B1 bands with right-hand circular polarization and a low axial ratio (< 3 dB). The integrated LNA delivers ≈ 18–19 dB gain with a noise figure below 1.8 dB, achieving clear satellite reception even in noisy urban or industrial environments. With a standard IPEX 1 connector and 90 mm RF 1.13 cable, the antenna can be embedded directly into devices such as GNSS modules, trackers, controllers and UAV boards. Operating from −40 °C to +85 °C, it meets RoHS and REACH standards. ABOOSTY provides comprehensive OEM/ODM options from connector customization to certification support, ensuring reliable mass production.

The cable and connector configurations are fully customizable. For more information or additional support, please get in touch with the Aboosty customer support team.





LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length(mm)
15
Width(mm)
15
Height (mm)
4
Product Weight (g)
5.8
Freq. (MHz)
1550-1605
Technology Type
GNSS/GPS, GALILEO, GPS/BDS, GPS
Frequency Bands
B1, L1, E1
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Mobile Communication, Public Safety, Others
Antenna Type
Active
Connector Style
Right Angle
Radiation Pattern
Directional
Polarity
RHCP
Max Effi. (%)
51.25
Peak Gain
-0.55dBi
VSWR
< 1.8
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
90
Mechanical Style
Ceramic
LNA Gain
19.1 dB
Noise Figure (dB)
<1.8
Axial Ratio (AR) (dB)
<3 dB
Mounting Style
Pin/Adhesive
Customization Option
Logo, Packaging, Cables and Connectors
  • Hand-held/Portable Devices
  • Geodetic Surveying and Mapping
  • Channel Surveying and Mapping
  • Precision Agriculture
  • Marine Surveying
  • Asset and Fleet Tracking
  • Oil, Gas, and Mining Industries
  • M2M Applications
  • Hand-held/Portable Devices
  • Wearables
  • Transportation
  • Robotics
  • Autonomous Vehicles
Part Number
User Story
Model
Description
PN
Note
AIGC058
1550 – 1580Mhz GPS L1 / Galileo E1 / BeiDou B1 IPEX 1, RF 1.13 (Ø 1.13 mm) coaxial cable, RHCP Antennas
M01-0300400R0A
Customization supported
DELIVERY INFORMATION
Antennas & GPS modules, RF Connectors / Cables
Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days
