Adhesive 4G LTE/ Cellular 40x15mm Embedded Flex PCB Antenna

SKU: AICF008 Categories: , Tags: , , , Brand:

Product Overview

Key Features
Description
Specification
Applications

Compact LTE PCB antenna for IoT and embedded wireless devices. 40x15mm PCB, IPEX1 connector, 50cm RG1.13 cable. Supports customization and stable manufacturing.

Dual-band LTE: 824–960 / 1710–2690 MHz.
Peak gain: 1.2 dBi for reliable LTE communication.
Compact 40x15mm flex PCB design.
IPEX1 connector with 50cm RG1.13 cable, customizable.

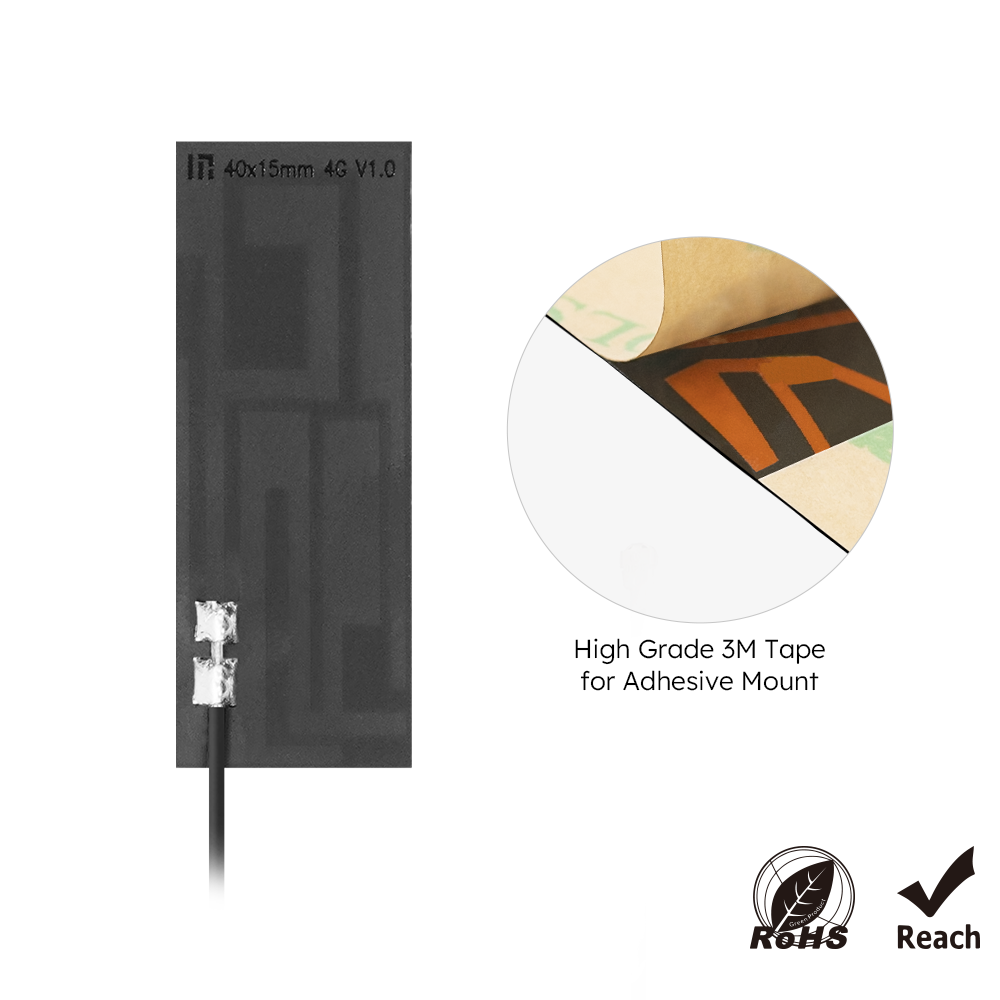

Adhesive mounting on non-conductive surfaces.
Supports IoT modules, M2M terminals, smart meters, telematics, routers, gateways, and wearable devices.
RoHS compliant, stable and reliable manufacturing.
Customizable cable length, connector type, and mounting method.
Rapid antenna sample creation, flexible customization, high-volume production, and reliable delivery with advanced testing equipment and quality control.

Operating Frequency: 824-960 MHz | 1710-2690 MHz

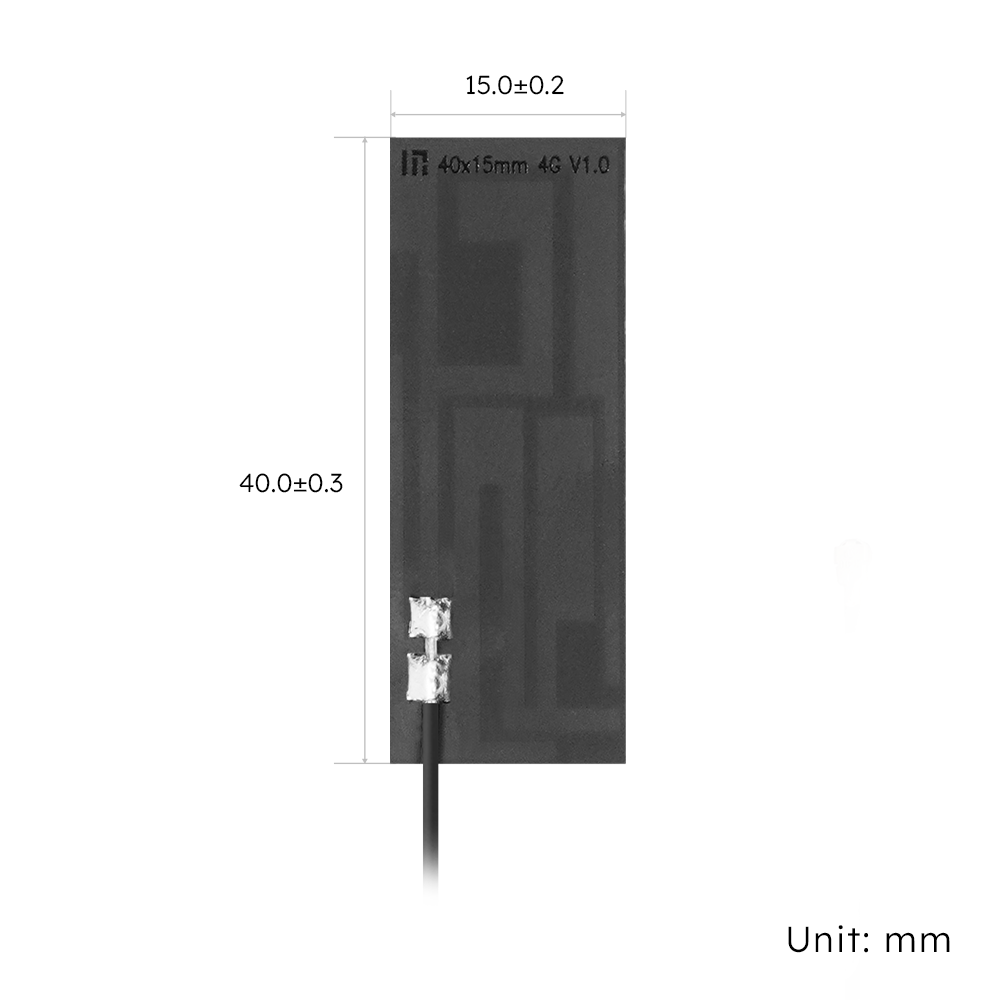

Dimensions: 40 x 15 mm

The ABOOSTY AICF-008-IPX1 LTE antenna provides dual-band coverage (824–960 MHz and 1710–2690 MHz) in a compact 40x15mm PCB design with IPEX1 connector and 50cm RG1.13 cable. Ideal for IoT modules, M2M terminals, smart meters, wireless gateways, wearable devices, and LTE-enabled monitoring systems. Ensures stable wireless connectivity, easy adhesive mounting, and supports customization for cable length and connector type.

ABOOSTY offers complete RF antenna solutions, backed by a fully equipped R&D center and a comprehensive manufacturing facility. Our services cover antenna electrical design, EM simulation, prototyping, functional debugging, paid sample validation, and mass production. We provide OEM and ODM antenna solutions for LTE/4G/5G, IoT, M2M, and embedded modules, ensuring high-reliability, customizable, and turnkey antennas with controlled impedance, optimized gain, and on-time delivery.


Package Included: 1 x FPC Antenna

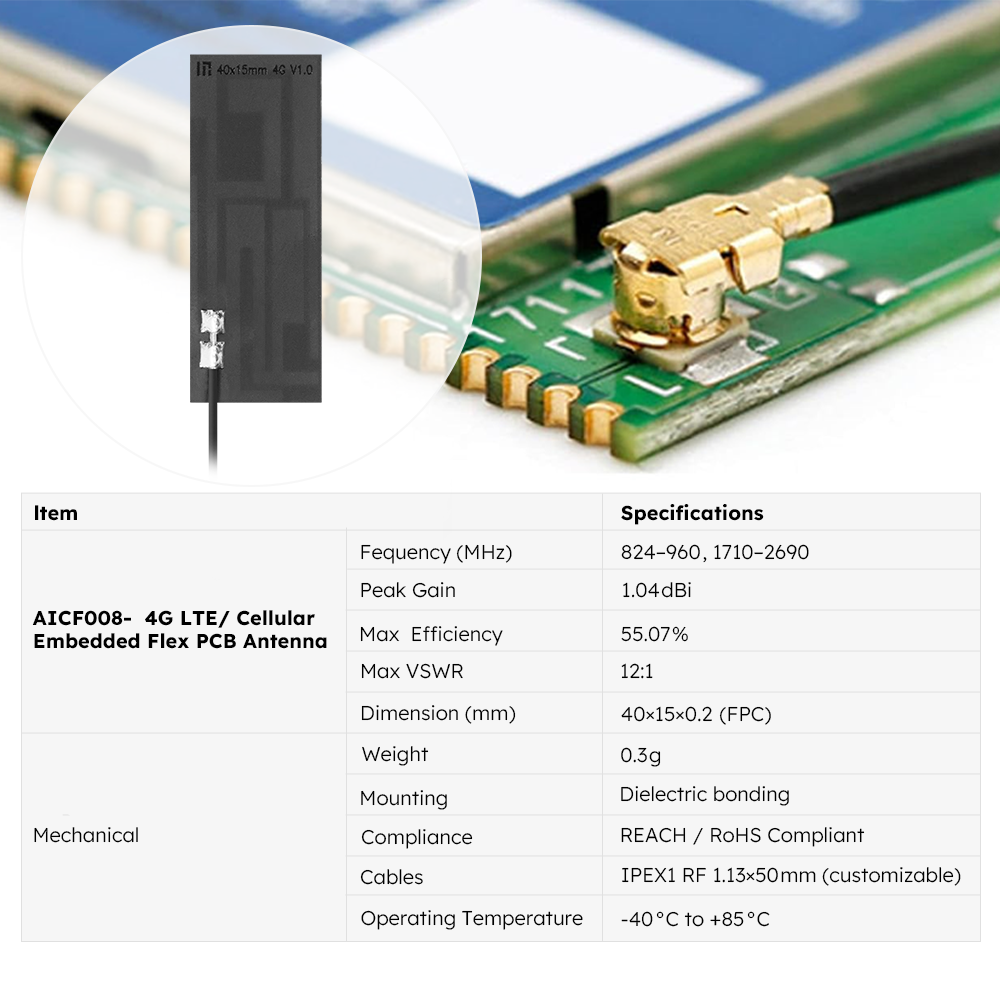

LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
40.0
Width (mm)
15.0
Height (mm)
0.2
Product Weight (g)
0.3
Freq. (MHz)
824-960, 1710-2690
Technology Type
4G/3G/LTE/GSM, 5G LTE, Zigbee, Bluetooth
Frequency Bands
4G, 3G, GSM, 2.4 GHz
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Dipole
Connector Style
Right Angle
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
68.7
Peak Gain
3.09 dBi
VSWR
5.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
450
Mechanical Style
FPC
Mounting Style
Adhesive Mount
Customization Option
Logo, Packaging, Cables and Connectors
  • IoT Devices & M2M Terminals :Embedded LTE connectivity for smart modules, sensors, and telemetry devices.
  • Smart Cities: Wireless communication in street lighting, traffic monitoring, and connected utility systems.
  • Asset Tracking & Fleet Telematics supports GPS trackers and telematics terminals for vehicles.
  • Security & Surveillance Systems :LTE-enabled IP cameras, access control, and alarm panels.
  • Cellular Routers, Modems & Hotspots for routers and industrial M2M modems.
  • Remote Sensors & Smart Agriculture Devices : for environmental sensors, irrigation systems, and smart farming devices.
  • Wearables & Portable Devices :Compact antenna for handheld devices, wearables, and portable monitoring units.
  • Smart Agriculture & Remote Monitoring for environmental sensors, irrigation systems, and remote automation.
  • Telematics & Vehicle Electronics into Integrates into vehicle telematics, car DVRs, and fleet monitoring systems.
Part Number
User Story
Model
Description
PN
Note
AICF008
4G LTE 40x15 L50CM1 Embedded Flex PCB Antenna with IPEX1 Connector
M01-0501150R0A
Customization supported
