Adhesive 4G LTE/ Cellular 65x15mm Embedded Flex PCB Antenna

SKU: AICF007 Categories: , Tags: , , , Brand:

Product Overview

Key Features
Description
Specification
Applications

ABOOSTY AICF006 4G LTE 65x15mm Flex PCB Antenna with 450mm Cable and SMA Male Connector

High-performance LTE flex PCB antenna for IoT, M2M, and industrial applications. 65x15mm PCB, SMA male connector, 450mm RG1.13 cable. Supports customization with stable, RoHS-compliant manufacturing.

Dual-band LTE: 824–960 / 1710–2690 MHz
Peak gain: 3.09dBi for stable LTE / Cellular performance
Compact 65x15mm flex PCB design
SMA male connector with 450mm RG1.13 cable, customizable

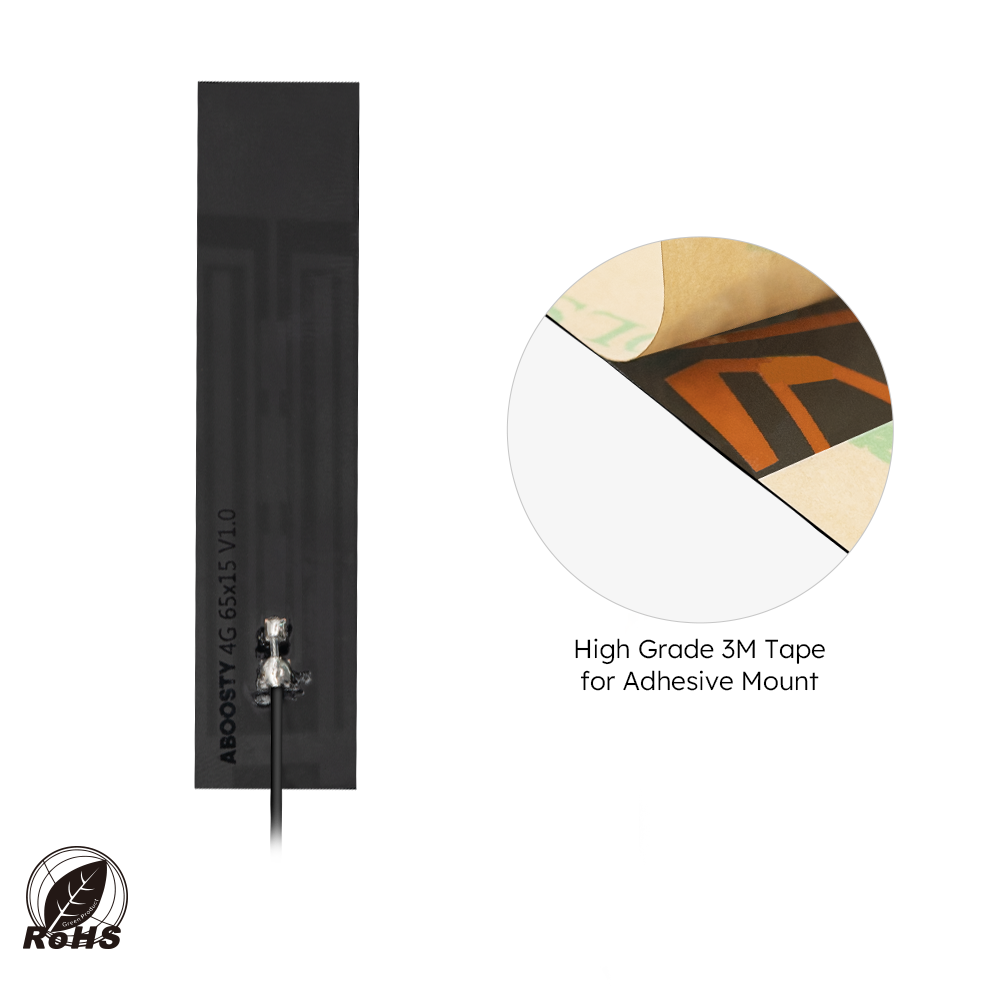

Adhesive mounting on non-conductive surfaces
Supports IoT, M2M, industrial gateways, smart meters, tracking devices, LTE routers
RoHS compliant, stable and reliable manufacturing

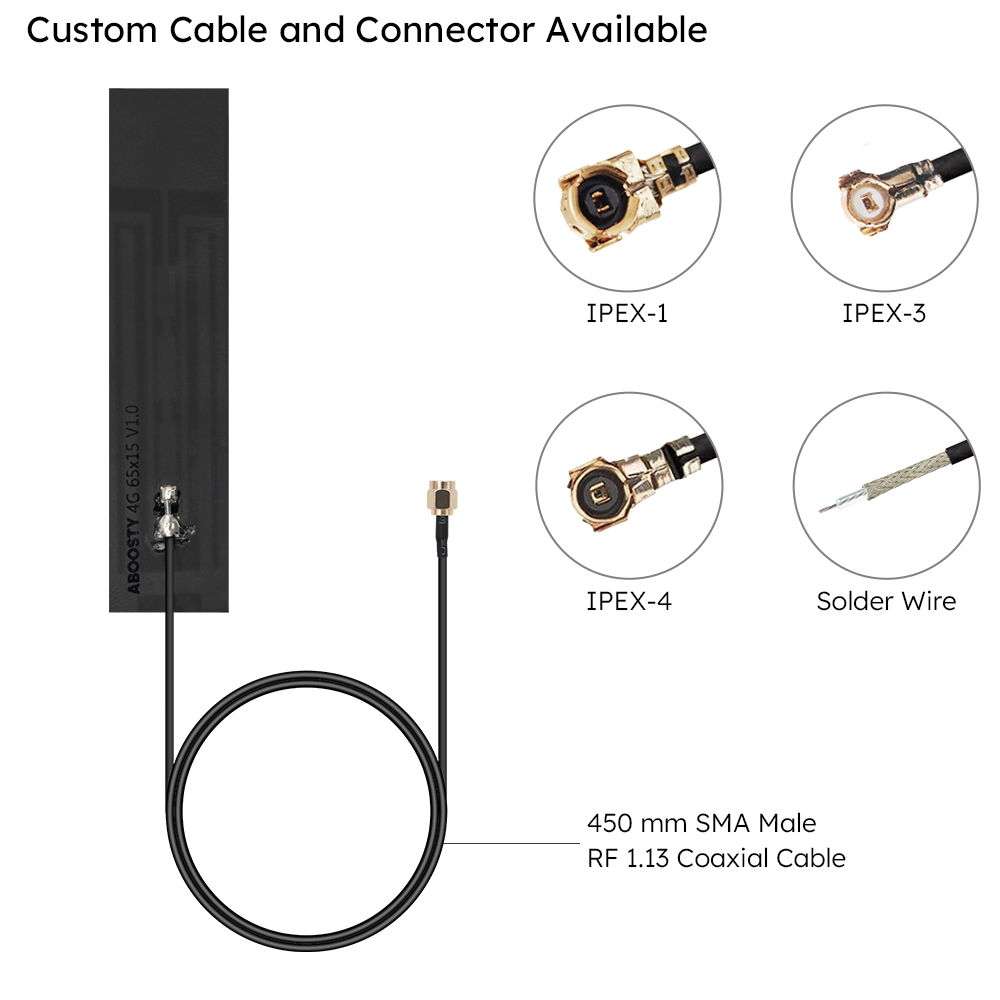

Customizable solutions for cable length, connector type, and mounting method

Operating Frequency: 824-960 MHz | 1710-2690 MHz

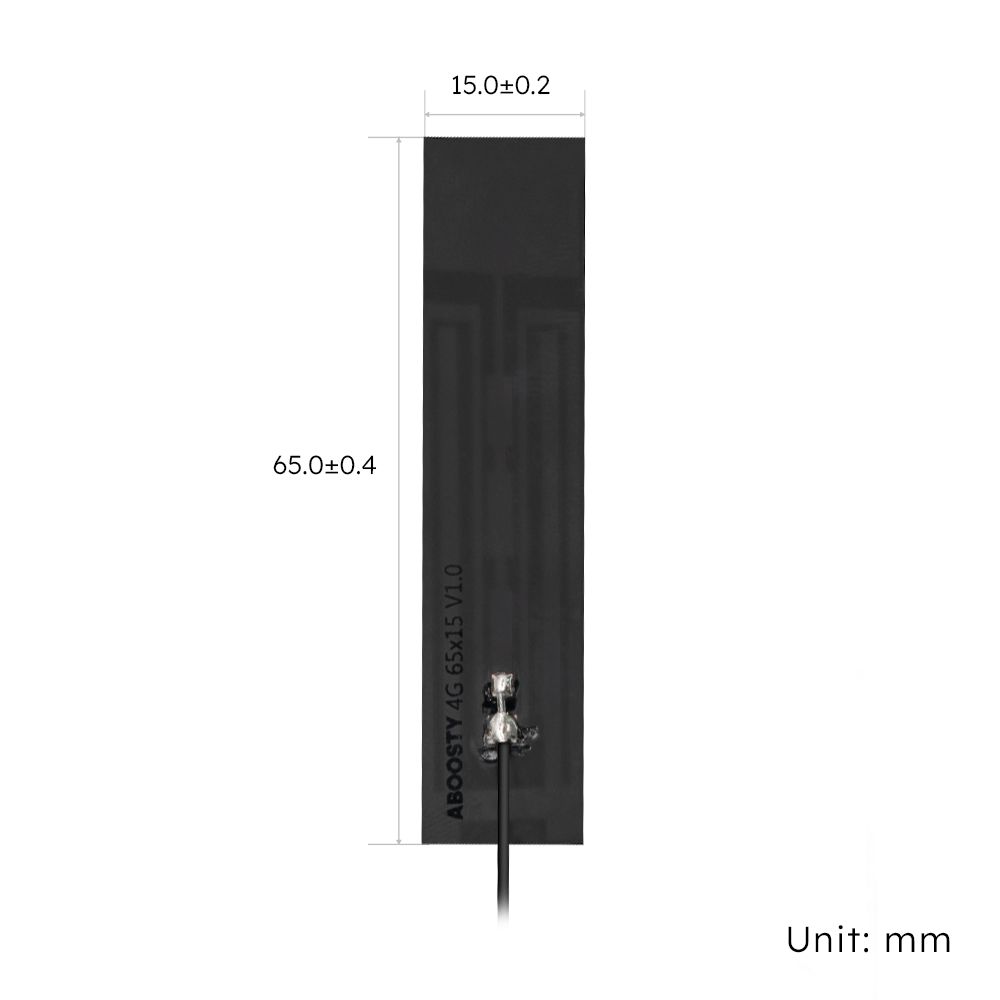

Dimensions: 65 x 15 mm

The ABOOSTY AICF007 -SMA LTE antenna provides dual-band 4G coverage (824–960 MHz and 1710–2690 MHz). Compact 65x15mm flex PCB design with SMA male connector and 450mm RG1.13 cable ensures seamless integration into IoT gateways, M2M modules, smart meters, tracking devices, industrial automation, and LTE routers. Adhesive mounting simplifies installation on non-conductive surfaces. This antenna delivers consistent RF performance and supports custom cable length and connector options for embedded applications.

ABOOSTY offers complete RF antenna solutions, backed by a fully equipped R&D center and a comprehensive manufacturing facility. Our services cover antenna electrical design, EM simulation, prototyping, functional debugging, paid sample validation, and mass production. We provide OEM and ODM antenna solutions for LTE/4G/5G, IoT, M2M, and embedded modules, ensuring high-reliability, customizable, and turnkey antennas with controlled impedance, optimized gain, and on-time delivery.


Package Included: 1 x FPC Antenna

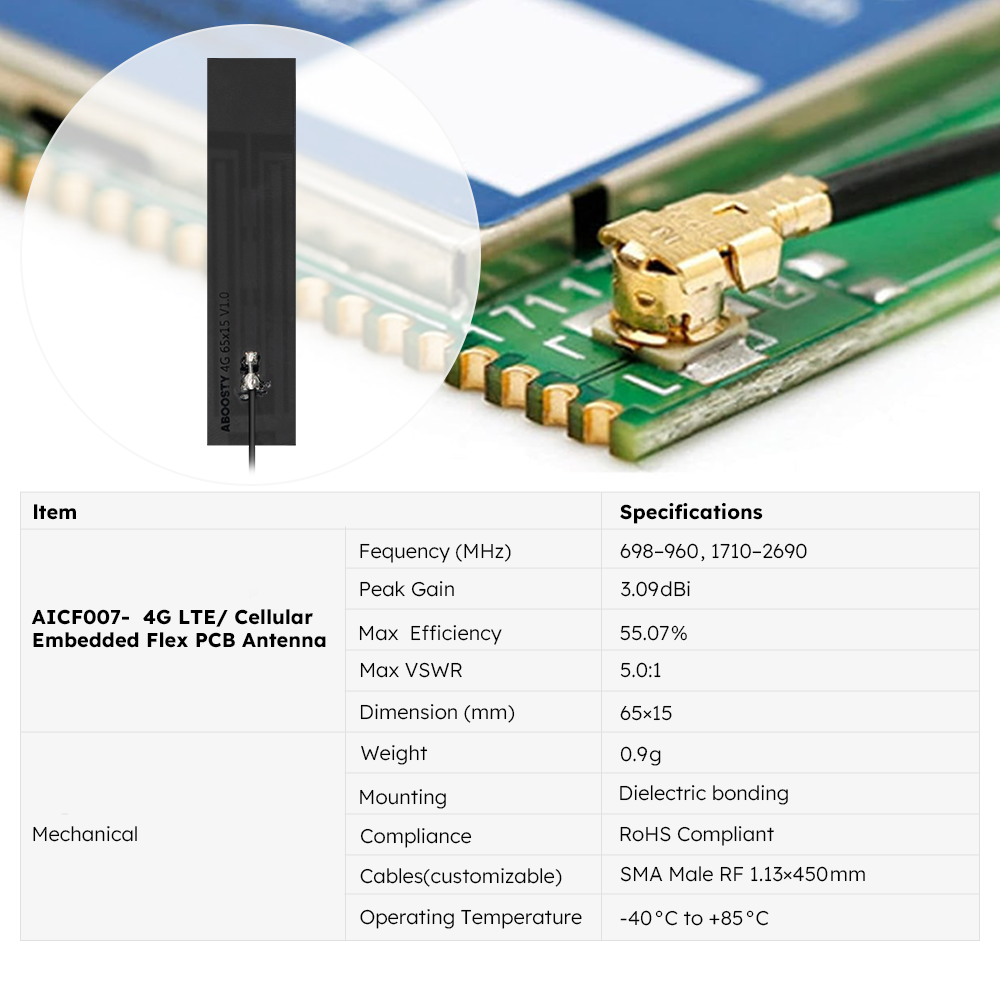

LABEL
VALUE
Certificates Acquired
Reach, RoHS Compliant
Length (mm)
65.0
Width (mm)
15.0
Height (mm)
17.2
Product Weight (g)
4.0
Freq. (MHz)
880-960, 1710-2690
Technology Type
4G/3G/LTE/GSM, 5G LTE, Zigbee, Bluetooth
Frequency Bands
4G, 3G, GSM, 2.4 GHz
Operating Temperature (℃)
-40°C to +85°C
Markets
Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Others
Antenna Type
Dipole
Connector Style
Right Angle
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
68.7
Peak Gain
3.09 dBi
VSWR
5.0:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 1
Cable Type
RF 1.13 Coax
Cable Length (mm)
450
Mechanical Style
FPC
Mounting Style
Adhesive Mount
Customization Option
Logo, Packaging, Cables and Connectors
  • Smart Meters & Utility Monitoring for electricity, gas, and water meters.
  • Industrial IoT Gateways & Controllers for M2M gateways, PLCs, and automation hubs.
  • Asset Tracking & Fleet Telematics supports GPS trackers and telematics terminals for vehicles.
  • Security & Surveillance Systems :LTE-enabled IP cameras, access control, and alarm panels.
  • Cellular Routers, Modems & Hotspots for routers and industrial M2M modems.
  • Remote Sensors & Smart Agriculture Devices : for environmental sensors, irrigation systems, and smart farming devices.
  • Drones and Robotics
Part Number
User Story
Model
Description
PN
Note
AICF007
4G LTE 40x15 L50CM1 Embedded Flex PCB Antenna with IPEX1 Connector
M01-0501140R0A
Customization supported
DELIVERY INFORMATION
Antennas & GPS modules, RF Connectors / Cables
Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days
Evaluation boards
Evaluation boards - estimated delivery time for samples is 7-14 days
