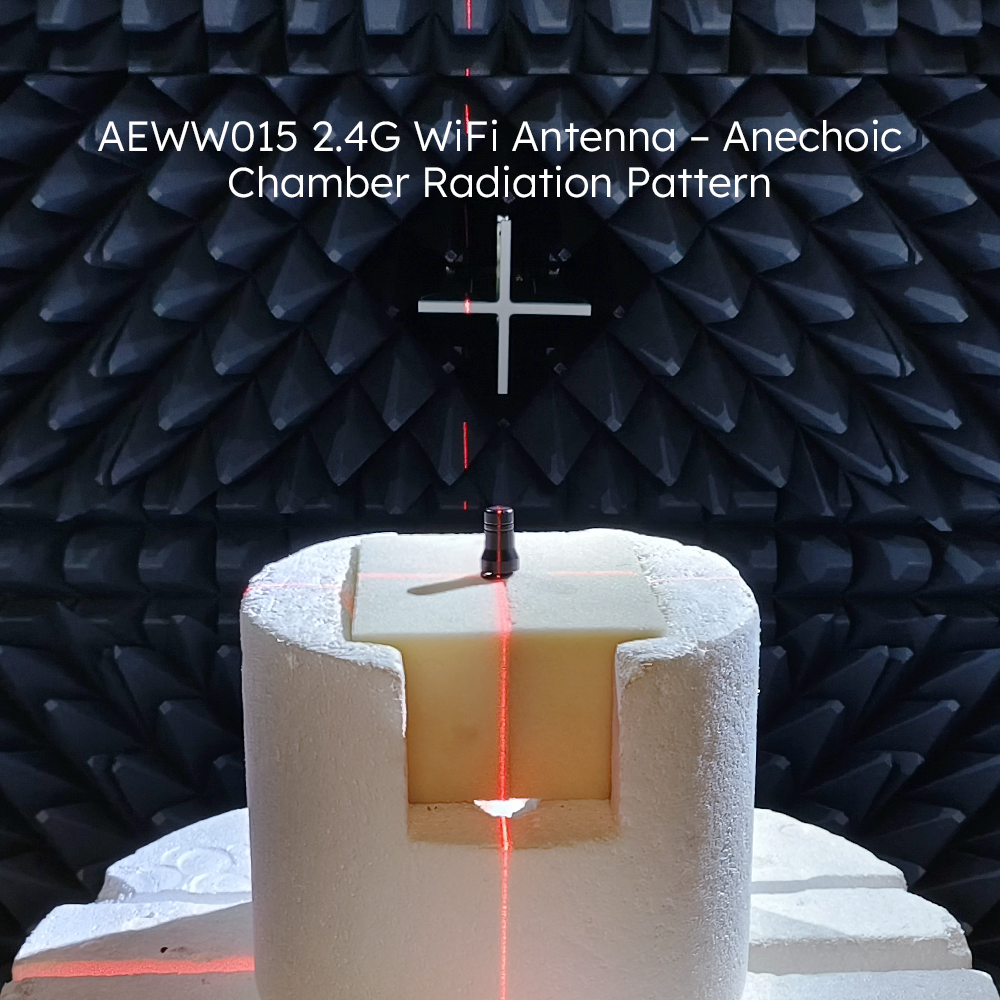

radiation pattern measurement of AEWW015 2.4G WiFi omni external mini antenna in RF anechoic chamber -ABOOSTY
AEWW015 2.4G WiFi omni antenna used on IP security camera housing and outdoor IoT gateway in smart building and logistics site -ABOOSTY
AEWW015 2.4 GHz WiFi WLAN omni external mini antenna screw mount with 500mm RF 0.81mm cable and IPEX 3 connector -ABOOSTY
packaging of AEWW015 2.4G WiFi omni external mini antenna with screw mount and IPEX 3 cable for OEM and distributor supply -ABOOSTY
radiation pattern measurement of AEWW015 2.4G WiFi omni external mini antenna in RF anechoic chamber -ABOOSTY
AEWW015 2.4G WiFi omni antenna used on IP security camera housing and outdoor IoT gateway in smart building and logistics site -ABOOSTY
AEWW015

AEWW015 2.4 GHz WiFi / WLAN Omni External Mini Antenna | Screw-Mount Panel Antenna with 500 mm IPEX 3 Cable

WIFI/Bluetooth/ISM
Single External Antennas
Download
Datasheet
Buy Samples
Coming soon
Contact Us​

Aboosty is ready to help you tackle various wireless issues.

AEWW015 2.4 GHz WiFi / WLAN Omni External Mini Antenna | Screw-Mount Panel Antenna with 500 mm IPEX 3 Cable

  • industrial 2.4 GHz WiFi antenna for US and EU markets
  • 2.4G WLAN panel-mount antenna for UK and DACH region
  • external WiFi antenna for IoT gateway in North America
  • mini 2.4G WiFi antenna for Asia-Pacific smart factory projects

SKU： AEWW015 分类： 标签： , , 品牌：

Product Overview

Key Features
Description
Specification
Applications

AEWW015 is a compact 2.4 GHz WiFi / WLAN omni external mini antenna for industrial IoT gateways, controllers and IP cameras. The Ø18 × 30 mm screw-mount panel housing with sealing O-ring and 500 mm RF 0.81 mm cable + IPEX 3 connector enables quick installation on metal or plastic enclosures, delivering stable 2.4G WiFi, Bluetooth and ISM links in factories, warehouses, building automation cabinets and outdoor field devices.

2.4 GHz WiFi / WLAN band – 2400–2500 MHz for IEEE 802.11 b/g/n, Bluetooth and 2.4G ISM applications.
Omni-directional coverage – 360° pattern for access points, industrial routers and IoT sensor nodes in multipath environments.

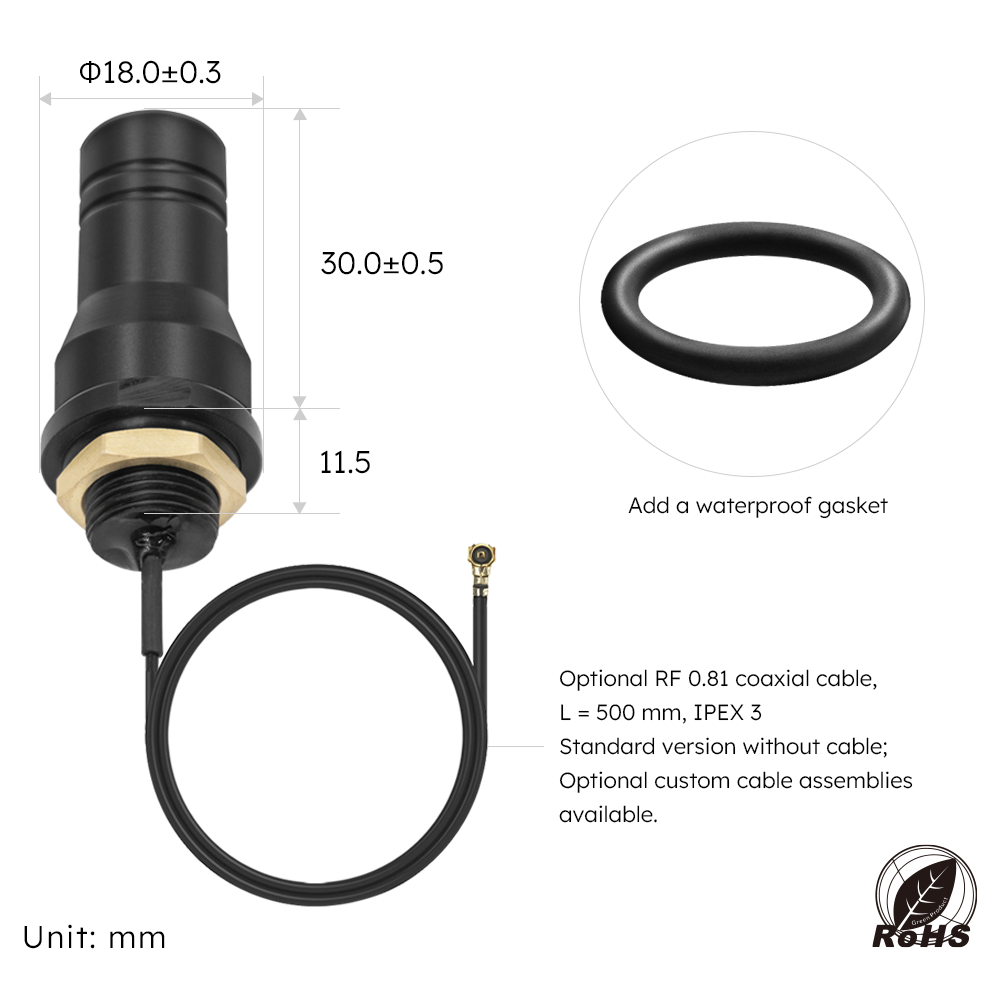

Mini screw-mount panel design – Ø18 × 30 mm head, M12 bulkhead thread and O-ring for secure indoor/outdoor installation.
Integrated cable assembly – 500 mm RF 0.81 mm coax with IPEX 3 (U.FL-compatible) connector for direct connection to WiFi / combo modules.
Industrial-grade operation – −40°C to +85°C for factory floors, logistics centers, buildings and outdoor control cabinets.
Lightweight & robust – Very low mass reduces stress on thin metal panels and compact plastic housings.
OEM / ODM ready – Cable length, connector type, label and packaging can be customized for different regional markets and product platforms.



AEWW015 is a 2.4 GHz WiFi / WLAN omni external mini antenna designed for industrial, commercial and outdoor IoT devices that cannot rely on small internal PCB antennas. The screw-mount bulkhead design with sealing O-ring allows fast installation on control cabinets, junction boxes, outdoor camera housings and plastic enclosures, providing a robust RF interface between the radio module and the outside environment.

Operating across 2400–2500 MHz, the antenna supports WiFi 802.11 b/g/n, Bluetooth and 2.4G ISM services widely used in factories, warehouses, office buildings, retail stores and agricultural sites. Its omni-directional pattern and up to 2 dBi peak gain help maintain stable throughput in indoor multipath conditions and outdoor line-of-sight links. The integrated 500 mm RF 0.81 mm coaxial cable with IPEX 3 connector reduces assembly time and provides a convenient connection to embedded WiFi or combo modules.

The compact Ø18 × 30 mm housing and low mass make AEWW015 suitable for thin metal panels and compact plastic boxes, while the wide −40°C to +85°C operating range supports deployment in cold rooms, hot production lines and outdoor exposed locations. For OEM projects targeting US, EU, UK, APAC and Australian markets, ABOOSTY can customize cable length, connector type and labeling, and provide RF / OTA test reports (VSWR, gain, efficiency, radiation patterns) from its anechoic chambers to speed up FCC / CE / UKCA approvals and time-to-market.



LABEL
VALUE
Certificates Acquired
RoHS Compliant
Length(mm)
Ø18
Width(mm)
Height (mm)
30 mm
Product Weight (g)
0.8
Freq. (MHz)
2400-2500
Technology Type
2.4G WIFI, Bluetooth, Zigbee
Frequency Bands
2.4 GHz
Operating Temperature (℃)
-40°C to +85°C
Markets
Smart Industrial, Smart Cities, Mobile Communication, Transportation, Public Safety, Others
Antenna Type
Monopole
Connector Style
Straight
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
44.93 %
Peak Gain
2.10 dBi
VSWR
2.5:1
Impedance (Ω)
50
Ingress/Impact
N/A
Termination Style
Connector
Antenna Connector Type
IPEX 3
Cable Type
RF 0.81 Coax
Cable Length (mm)
500
Mechanical Style
Whip/Stick
Mounting Style
Connector Mount, Direct Mount
Customization Option
Logo, Packaging
  • Industrial WiFi gateway antenna for PLC cabinets, machine controllers
  • Warehouse & logistics WiFi antenna for handheld terminals, AGV / AMR and pallet tracking
  • Wireless IP camera / NVR antenna for building security and CCTV systems
  • Smart factory & building automation antenna for access points and sensor nodes
  • Smart agriculture / irrigation controller antenna for outdoor field devices and telemetry units
  • Environmental monitoring & smart city nodes in the 2.4 GHz ISM band
  • WiFi / Bluetooth antenna upgrade for embedded modules inside metal or plastic enclosures
Part Number
User Story
Model
Description
PN
Note
AEWW015
2.4 GHz WiFi / WLAN / Bluetooth / ISM Omni External Antenna, 2400–2500 MHz, Ø18 × 30 mm Screw-Mount with 500 mm IPEX Cable
M02-0600220R0A
Customization supported
