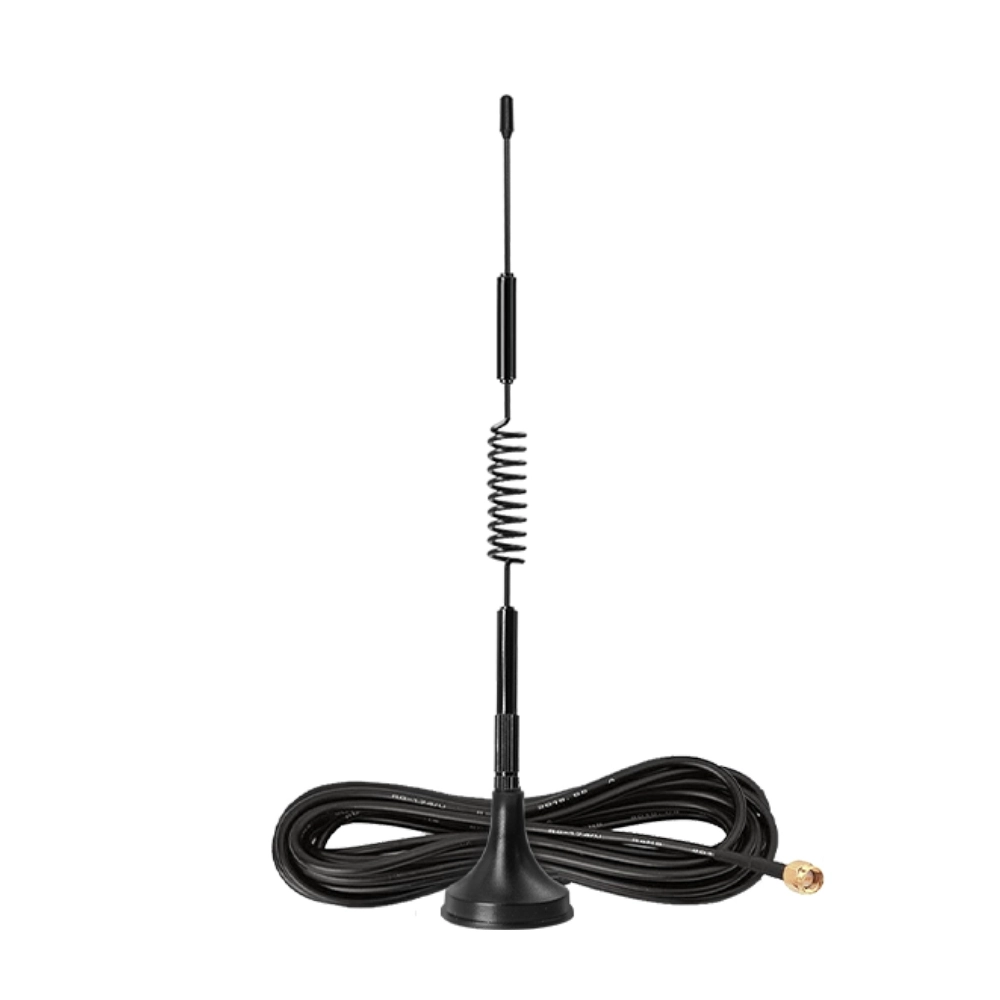

AECM015 4G LTE Magnetic Mount Antenna, 824-960 / 1710-2690 MHz, 1.76 dBi Peak Gain, SMA Male, 1.5 m RG174 Cable

SKU： AECM015 分类： External Antennas 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

The ABOOSTY AECM015 is a Monopole metal antenna covering 4G LTE with up to 1.76 dBi peak realized gain. Connector, cable length and mounting are customizable for OEM/ODM projects.

Up to 1.76 dBi peak realized gain

VSWR 4.0:1 across the operating band

Linear polarization

Omnidirectional radiation pattern

Screw mounting

RoHS compliant

The ABOOSTY AECM015 is a Monopole metal antenna covering 4G LTE with up to 1.76 dBi peak realized gain and VSWR 4.0:1. The external form factor is designed for 4g lte applications.

ABOOSTY supports OEM and ODM integration with connector and cable customization, mechanical adaptation, PCB layout review, RF matching, S-parameter measurement, gain and efficiency validation, OTA chamber testing, pilot production and mass manufacturing.

LABEL

VALUE

Certificates Acquired

RoHS Compliant

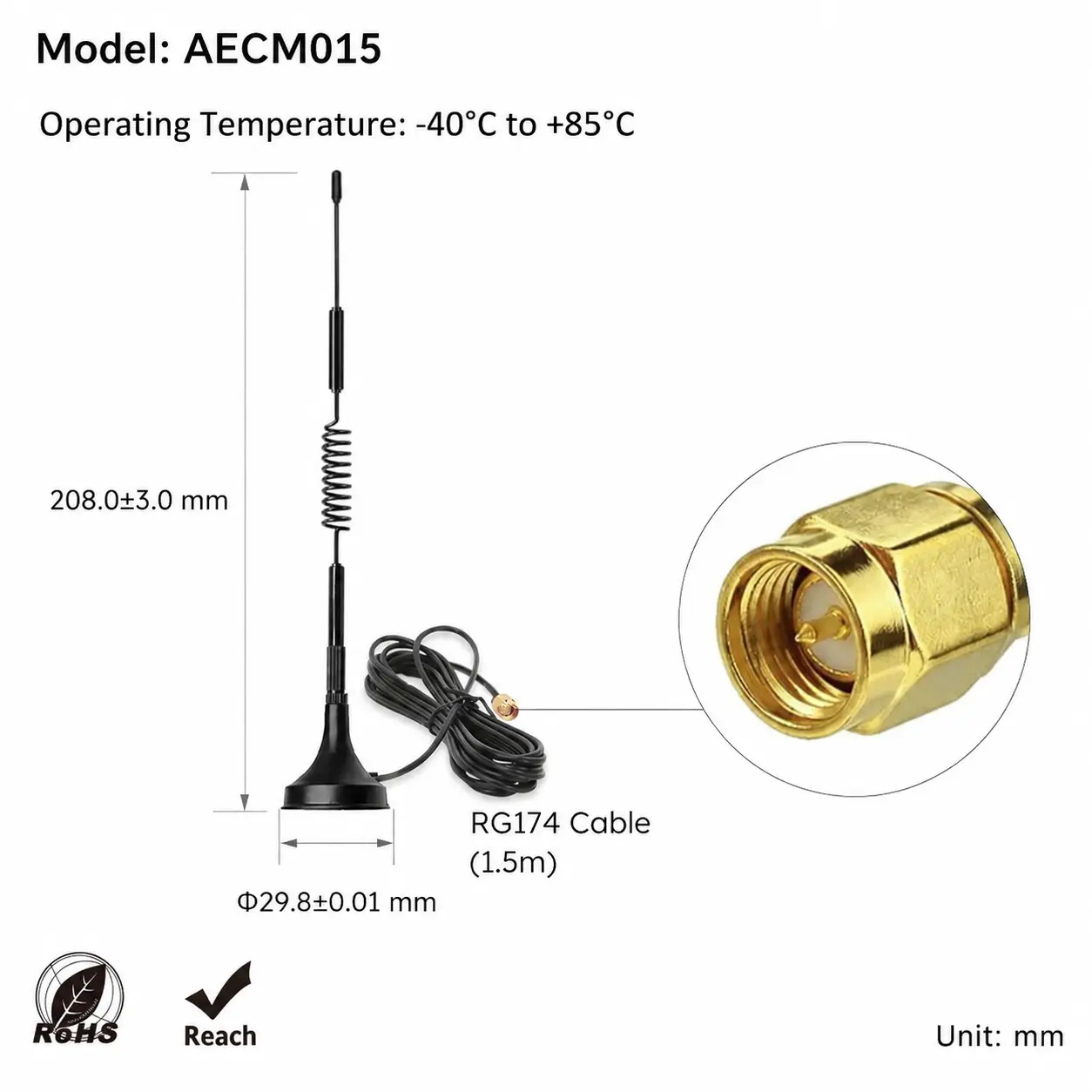

Length(mm)

1500

Width(mm)

Ø2.8

Height (mm)

Product Weight (g)

33.8

Freq. (MHz)

824-960, 1710-2690

Technology Type

4G/3G/LTE/GSM

Frequency Bands

4G, 868 MHz

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Mobility and Infrastructure, Public Safety, Others

Other Attributes

Compact

Antenna Type

N/A

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

35.9

Peak Gain

1.76 dBi

VSWR

Maximum VSWR4.0:1 at 824-960 MHz; 2.0:1 at 1710-2690 MHz

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

SMA-Male

Cable Type

RG174

Cable Length (mm)

1500

Mechanical Style

Metal

Mounting Style

Magnetic Mount

Customization Option

Packaging, Cables and Connectors, Frequency

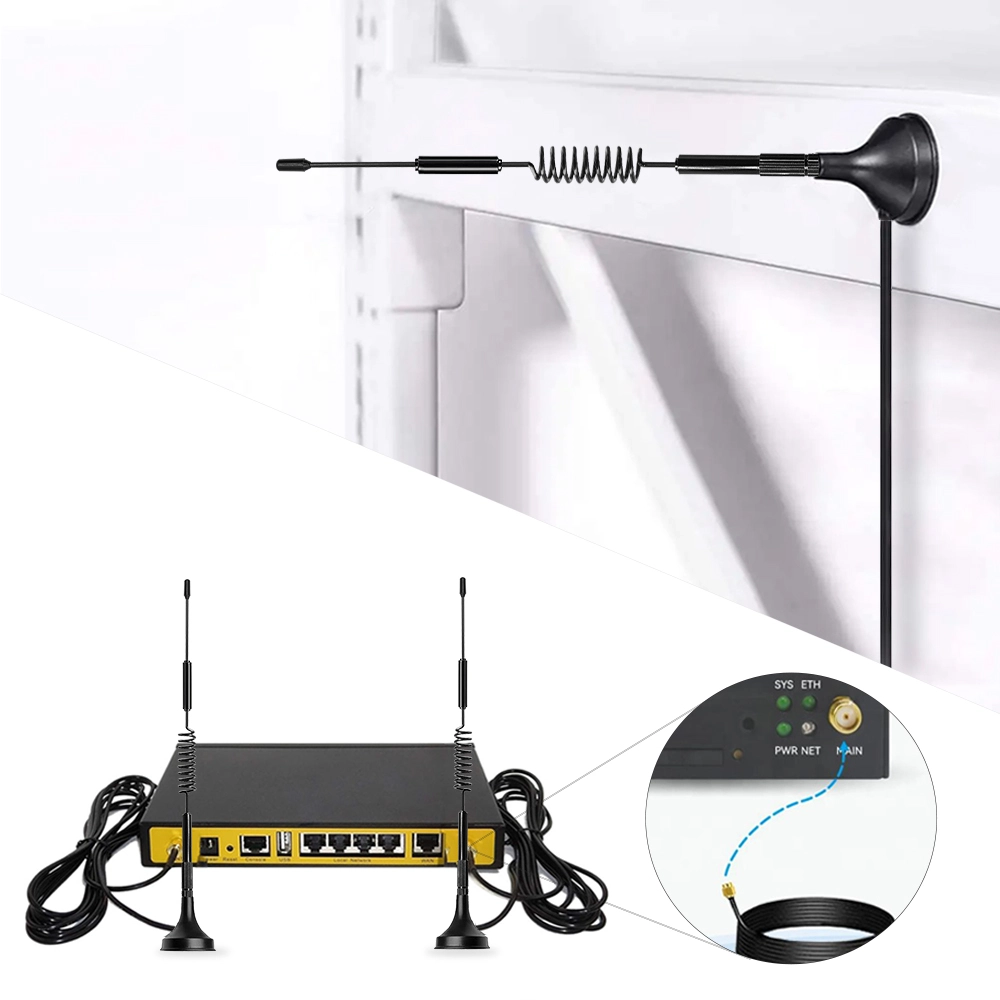

IoT devices and gateways
Industrial automation and control
Remote monitoring systems
Consumer electronics
Asset tracking and logistics
Wireless sensor networks

Part Number

User Story

Model

Description

Note

AECM015

824-960 / 1710-2690 MHz external cellular antenna with SMA male connector and 1.5 m RG174 cable

M04-0105290R0A

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
