AECK006 | 4G LTE External Round PIFA Antenna — IPEX U.FL

LTE/CELLULAR

Single External Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

AECK006 | 4G LTE External Round PIFA Antenna — IPEX U.FL

SKU： AECK006 分类： External Antennas, Uncategorized 标签： 2G/3G LTE, PIFA 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

The ABOOSTY AECK006 is a PIFA round pifa antenna covering 4G LTE. Designed for 4g lte applications and OEM/ODM integration.

Low Profile

Linear polarization

Omnidirectional radiation pattern

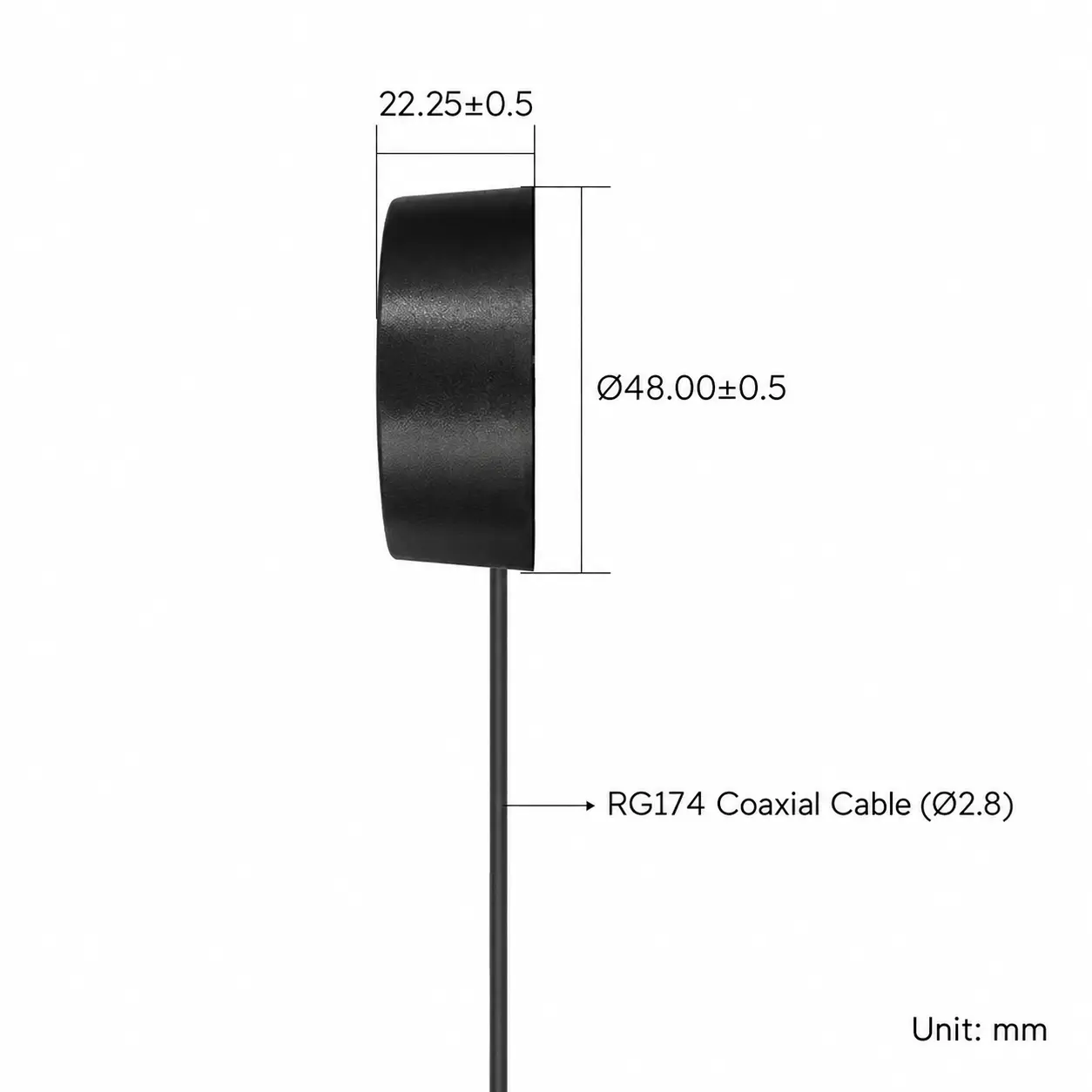

Φ48*22.3 mm compact form factor

IPEX U.FL connector standard

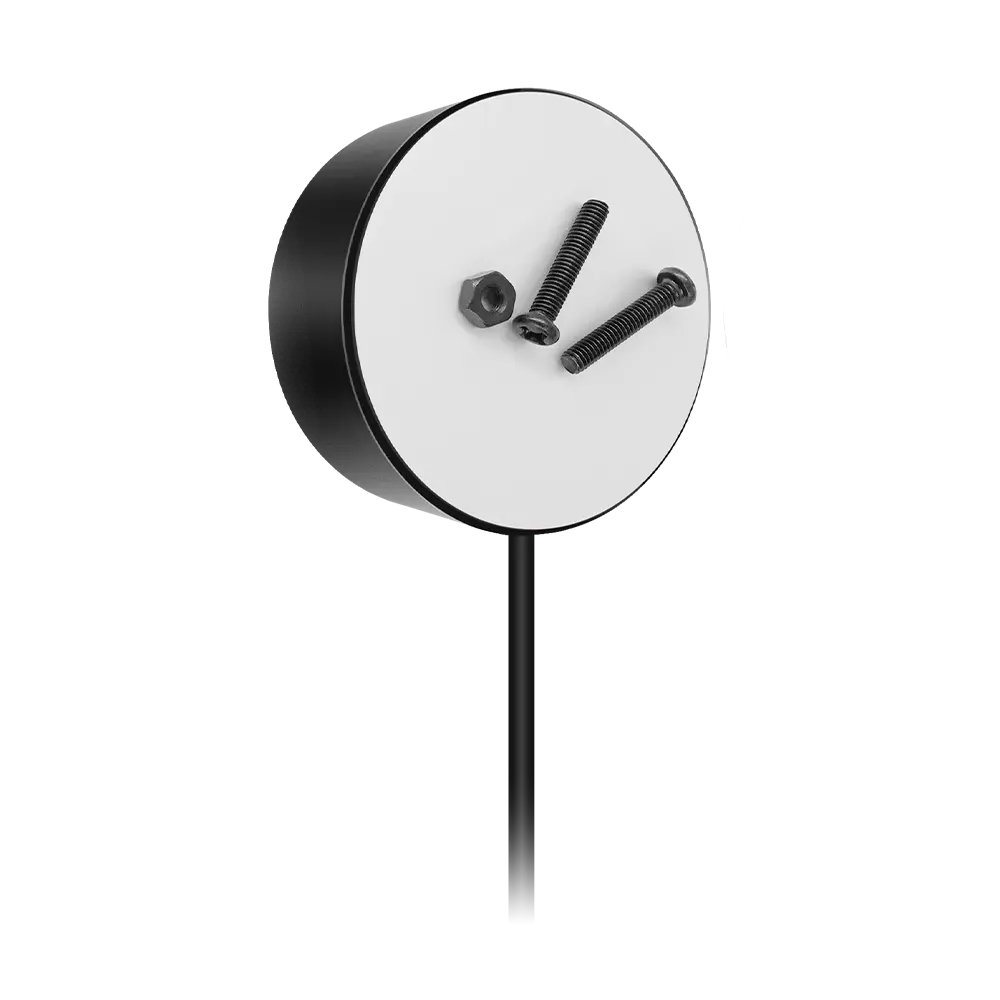

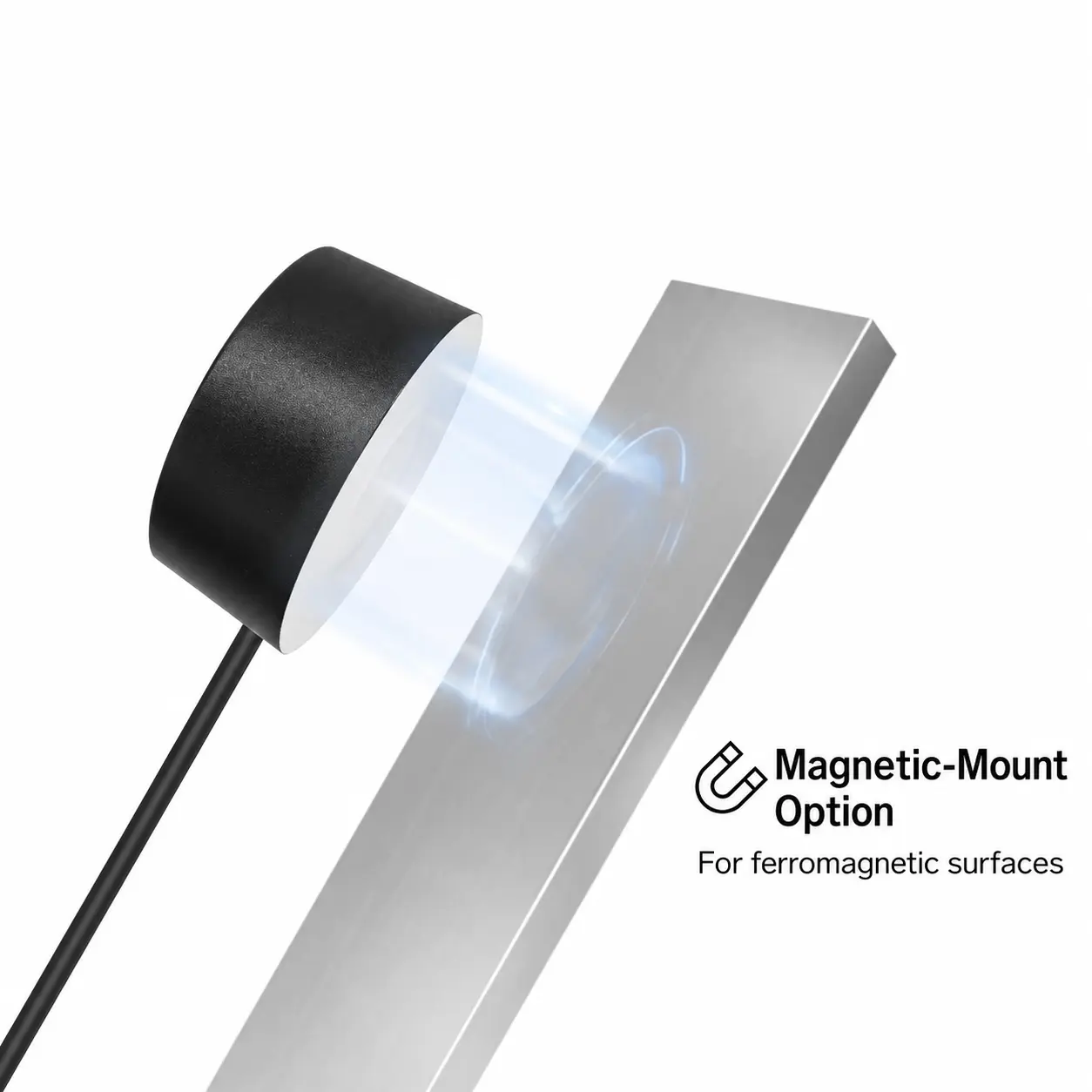

Adhesive / Magnetic / Screw mounting

REACH / RoHS compliant

Ground Plane Independent

Anti-metal PIFA Antenna

The ABOOSTY AECK006 is a PIFA round pifa antenna covering 4G LTE and VSWR 3.0:1. The external form factor is designed for 4g lte applications.

ABOOSTY supports OEM and ODM integration with connector and cable customization, mechanical adaptation, PCB layout review, RF matching, S-parameter measurement, gain and efficiency validation, OTA chamber testing, pilot production and mass manufacturing.

LABEL

VALUE

Certificates Acquired

RoHS Compliant, Reach

Length(mm)

1,000

Width(mm)

Ø48

Height (mm)

Product Weight (g)

Freq. (MHz)

698-960, 1710-2690

Technology Type

4G/3G/LTE/GSM, 4G LTE

Frequency Bands

868 MHz, 915 MHz, 2.4 GHz, 4G

Operating Temperature (℃)

-40°C to +85°C

Markets

Smart Industrial, Mobility and Infrastructure, Mobile Communication, Public Safety, Others, Connected Health

Other Attributes

N/A

Antenna Type

PIFA Antenna

Radiation Pattern

Omnidirectional

Polarity

Linear

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

U.FL

Cable Type

RG174

Cable Length (mm)

1000

Mechanical Style

ABS

Mounting Style

Low Profile, Screw Mount, Adhesive Mount, Screw Mount, Magnetic Mount

Customization Option

Logo, Cables and Connectors, Mounting Method, Other Customization

IoT devices and gateways
Industrial automation and control
Smart city infrastructure
Remote monitoring systems
Consumer electronics
Wireless sensor networks
Asset tracking and logistics

Part Number

User Story

Model

Description

Note

AECK006

35 g, Ø48 × 22.3 mm, 1,000 mm RG174 cable, adhesive mount, SMA male connector, black.

M02-0500220R0A

Connector, cable length and mounting are customizable for OEM/ODM projects.

AECK006

37 g, Ø48 × 22.3 mm, 1,000 mm RG174 cable, magnetic mount, SMA male connector, black.

M02-0500210R0A

Connector, cable length and mounting are customizable for OEM/ODM projects.

AECK006

45 g, Ø48 × 22.0 mm, 1,000 mm RG174 cable, screw mount, SMA male connector, black.

M02-0500350R0A

Connector, cable length and mounting are customizable for OEM/ODM projects.

AECK006

31 g, Ø48 × 22.3 mm, 1,000 mm RG178 cable, magnetic mount, IPEX1 connector, black.

M02-0500140R0A

Connector, cable length and mounting are customizable for OEM/ODM projects.
