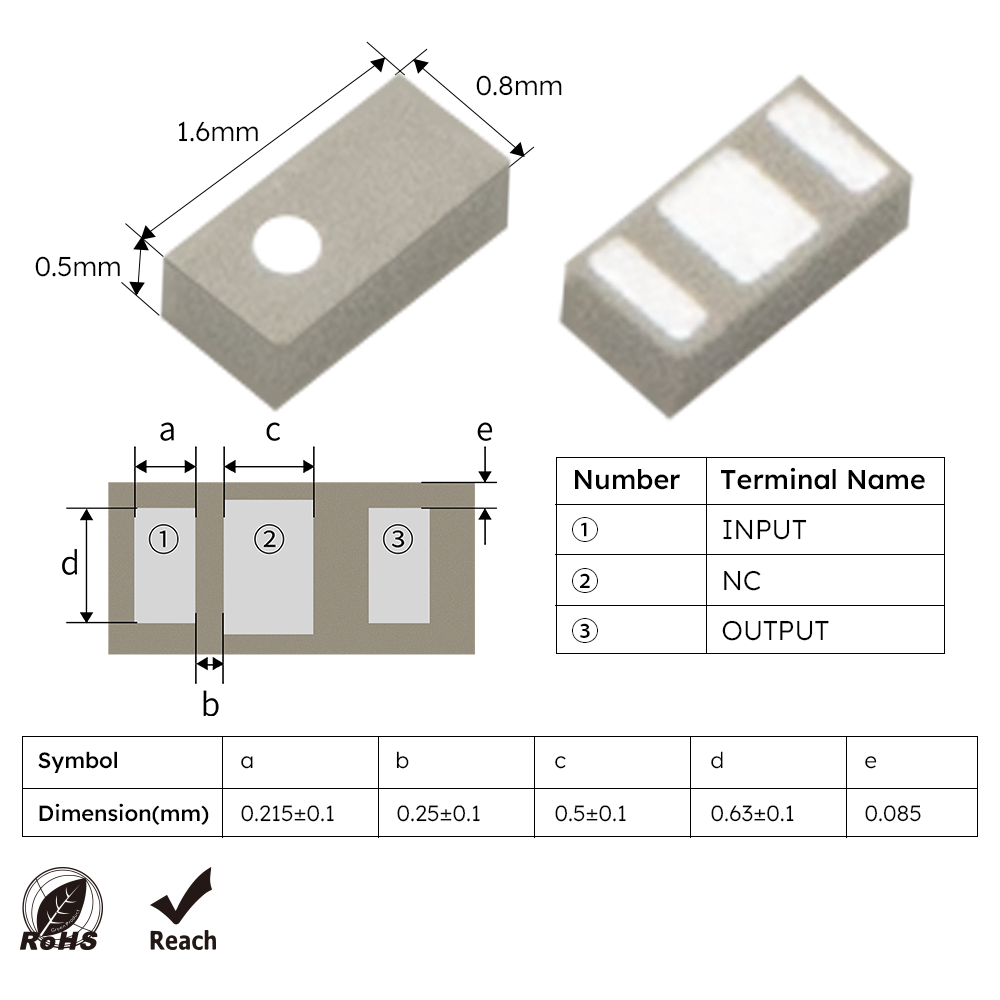

ADWH009-SMD-Chip-antenna-with-mechanical-drawing-1.6×0.8×0.5-mm

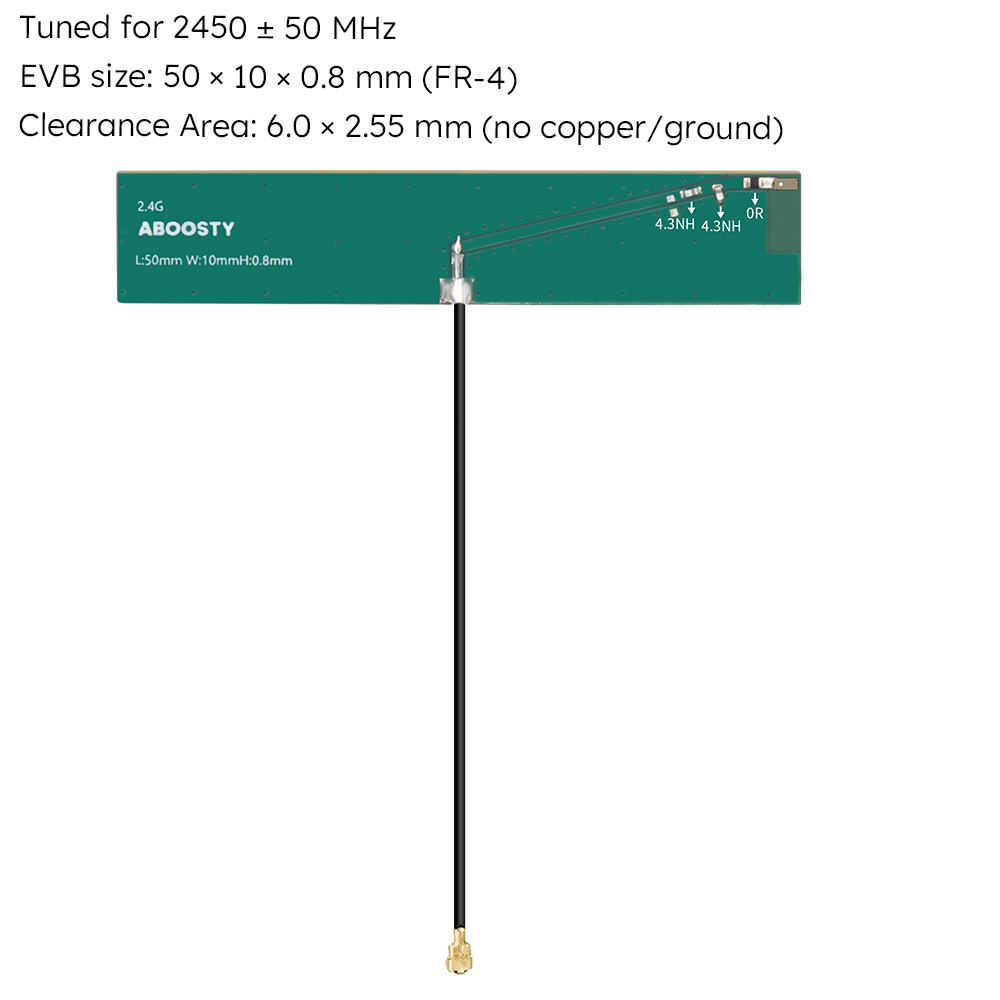

ADWH009-SMD-Chip-antennas-for-IOT-with-Gain-and-efficiency-curves-across-2.4–2.5-GHz

ADWH009

ADWH009 | 2.4GHz SMD Chip Antenna for Wi-Fi, Bluetooth, ZigBee 1.6×0.8×0.5 mm

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

ADWH009 | 2.4GHz SMD Chip Antenna for Wi-Fi, Bluetooth, ZigBee 1.6×0.8×0.5 mm

SKU： ADWH009 分类： Internal Antennas, SMD Antennas 标签： 2.4G WiFi, bluetooth, Chip Antenna, SMD, Zigbee 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

Dimension: 1.6 x 0.8 x0.5 mm
Peak Gain:0.32 dBi
Max Efficiency: 44%

ADWH009 is a 1.6×0.8×0.5 mm low-profile SMD antenna for 2.4 GHz wireless systems including Wi-Fi, Bluetooth and ZigBee. It delivers ≈ 0.32 dBi gain and 44 % efficiency.

Simplifies RF integration and shortens development time.
Ideal for miniaturized IoT and consumer electronics.
Stable performance validated on reference PCB.
Available for OEM/ODM customization with fast delivery.

1.6 × 0.8 × 0.5 mm low-profile SMD package for compact designs.

Operates at 2.4 – 2.5 GHz (2450 ± 50 MHz) for Wi-Fi, Bluetooth, ZigBee systems.

Typical gain 0.32 dBi and efficiency ≈ 44 %.

Faster time-to-market: Minimizes development cycle and manufacturing cost

VSWR < 5.0, 50 Ω impedance, 3 W power capacity.

Tape & Reel Packing

Two proven keep-outs + example 0402 matching network

Lead-free reflow ≤ 250 °C; RoHS/REACH

Operating Frequency: 2450-2550MHz
Dimensions: 1.6 x 0.8 x0.5 mm

Peak Gain ：0.32 dBi

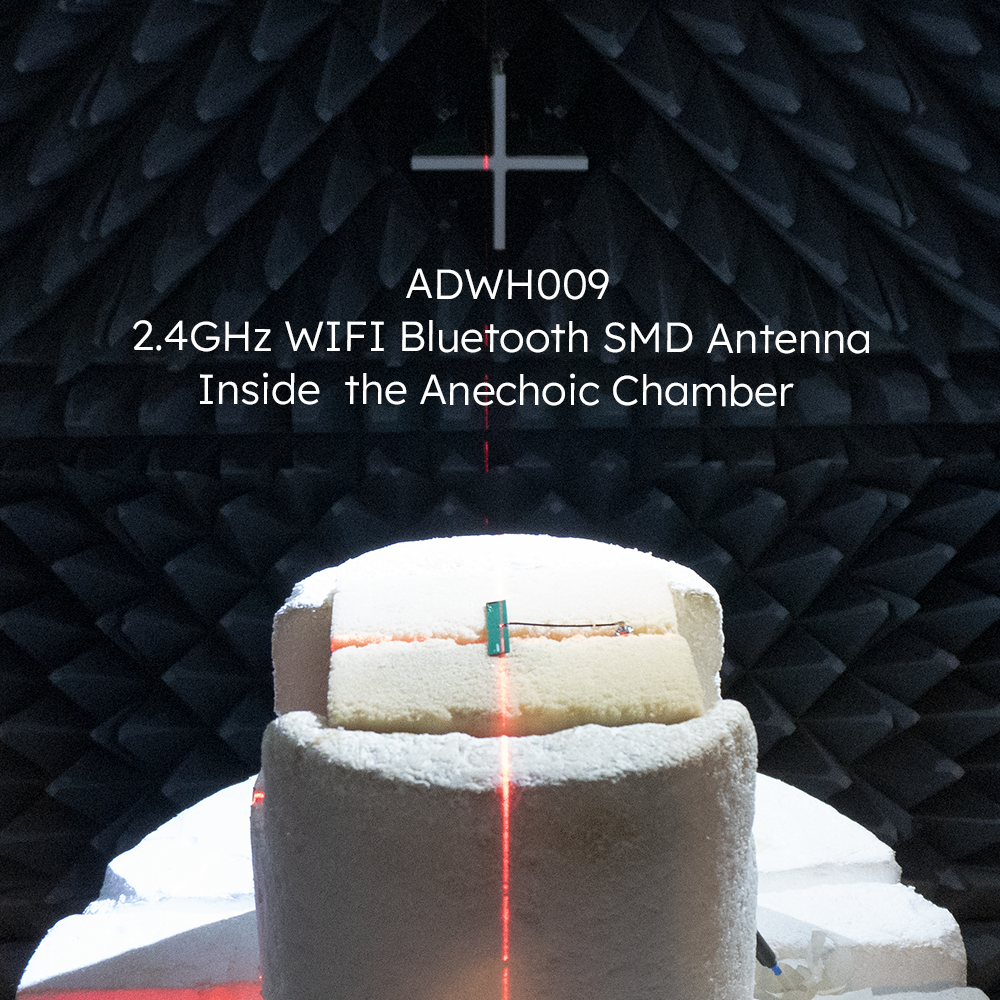

The ABOOSTY ADWH009 is an ultra-compact SMD chip antenna designed for Wi-Fi, Bluetooth and ZigBee wireless applications operating from 2.4 to 2.5 GHz. With a footprint of 1.6×0.8×0.5 mm, it fits tight PCB layouts in smart home, wearable, and IoT devices. Typical performance on the reference board (50 × 10 × 0.8 mm) shows a peak gain of 0.32 dBi and ≈ 44 % efficiency. The antenna uses a 50 Ω feed and is optimized with a 4.7 nH matching inductor. Its SMD construction supports lead-free reflow (up to 250 °C) and tape-and-reel packaging (6000 pcs/7″ reel). Applications include Wi-Fi routers and extenders, IoT nodes, smart meters, asset trackers, and wearable electronics. ABOOSTY provides OEM/ODM services for connector customization, branding, and certification support.

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length(mm)

1.5

Width(mm)

0.8

Height (mm)

0.5

Freq. (MHz)

2450±50

Technology Type

Bluetooth, 2.4G WIFI, Zigbee

Frequency Bands

2.4 GHz

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Public Safety, Others

Other Attributes

Compact

Antenna Type

N/A

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

45.32

Peak Gain

-1.43

VSWR

5.0 ：1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

SMD/SMT

Antenna Connector Type

N/A

Cable Type

N/A

Mechanical Style

HPM

Mounting Style

SMT/SMD

Customization Option

Logo, Packaging

Mobile & portable devices: Smartphones, tablets, laptops, wearable electronics
Smart home & IoT: Security systems, smart locks, E-health monitoring devices
Networking equipment: WiFi routers, access points, repeaters
Commercial & logistics: Asset tracking, POS systems, retail IoT solutions
Automotive communication: V2X car-to-car and car-to-infrastructure connectivity
Smart city infrastructure: Public WiFi hotspots, environmental monitoring, smart lighting

Part Number

User Story

Model

Description

Note

ADWH009

ADWH009 | 2.4GHz SMD Chip Antenna for Wi-Fi, Bluetooth, ZigBee | 2450-2550MHz 1.6×0.8×0.5 mm

M01-X100050R0A

Frequency customization supported

ADWH008

ADWH008 2.4 GHz SMD Chip Antenna (1.6×0.8×0.4 mm) for Wi-Fi, Bluetooth, ZigBee

M01-X100060R0A

Frequency customization supported
