4G LTE Dual-band 698–960 / 1710–2690 MHz 4.15dBi Omni-Directional Gooseneck Fiberglass Whip Antenna

SKU： AECH001 分类： , 标签： , , 品牌：

Product Overview

Key Features
Description
Specification
Applications

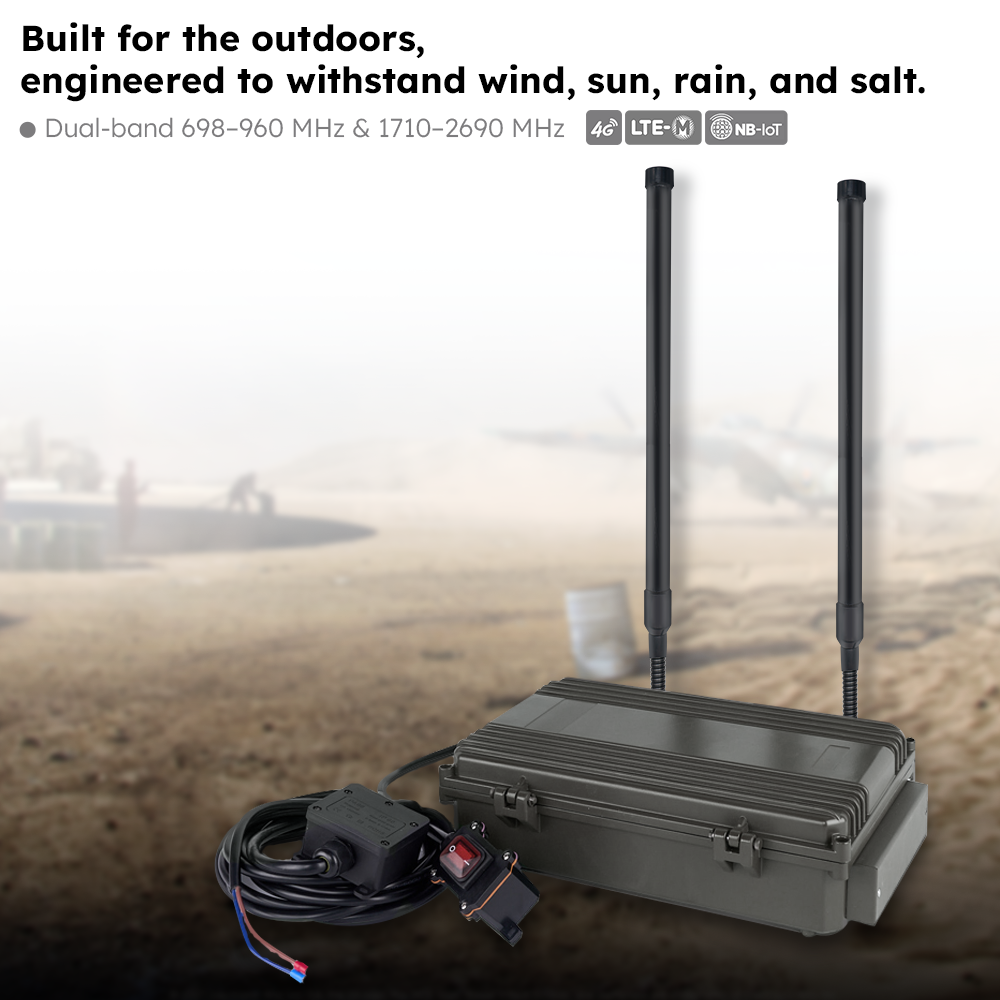

Rugged 4G LTE omni-directional gooseneck fiberglass antenna designed for harsh outdoor and industrial IoT environments. Covering 698–960 MHz and 1710–2690 MHz with up to 4.15 dBi peak gain and IP67 protection, the flexible gooseneck mount allows engineers to easily bend and orient the antenna for optimal 4G/3G/2G signal performance on cabinets, smart transmitters and remote telemetry units.

Wide 4G LTE coverage – Supports 698–960 MHz and 1710–2690 MHz for global 4G, 3G and 2G cellular networks.
Omnidirectional Pattern – Stable 360° coverage with consistent radiation.

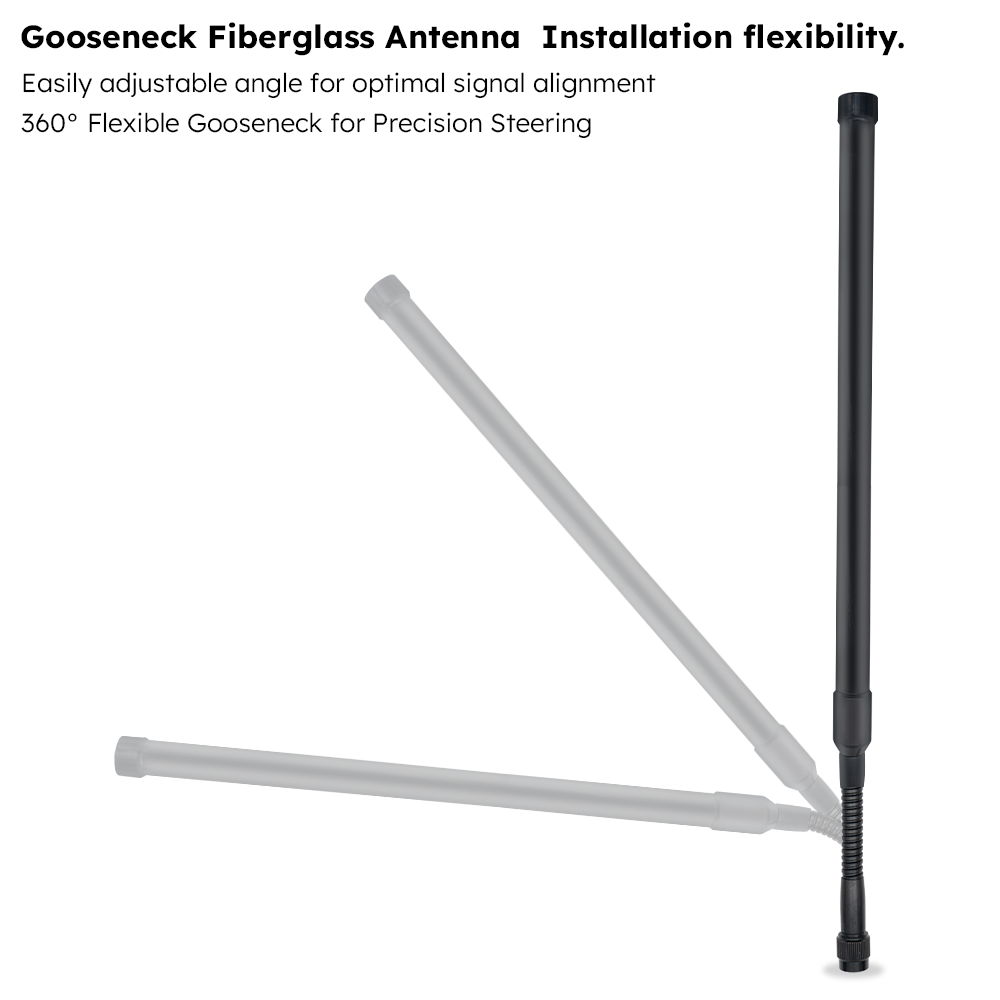

Flexible Gooseneck Mount – Adjustable orientation for diverse installation scenarios.
Durable Fiberglass Radome – UV, water, and corrosion resistant for outdoor use.
Stable Electrical Performance – ≤ 2.0 VSWR, 83.67 % efficiency, 2.41 dBi gain.

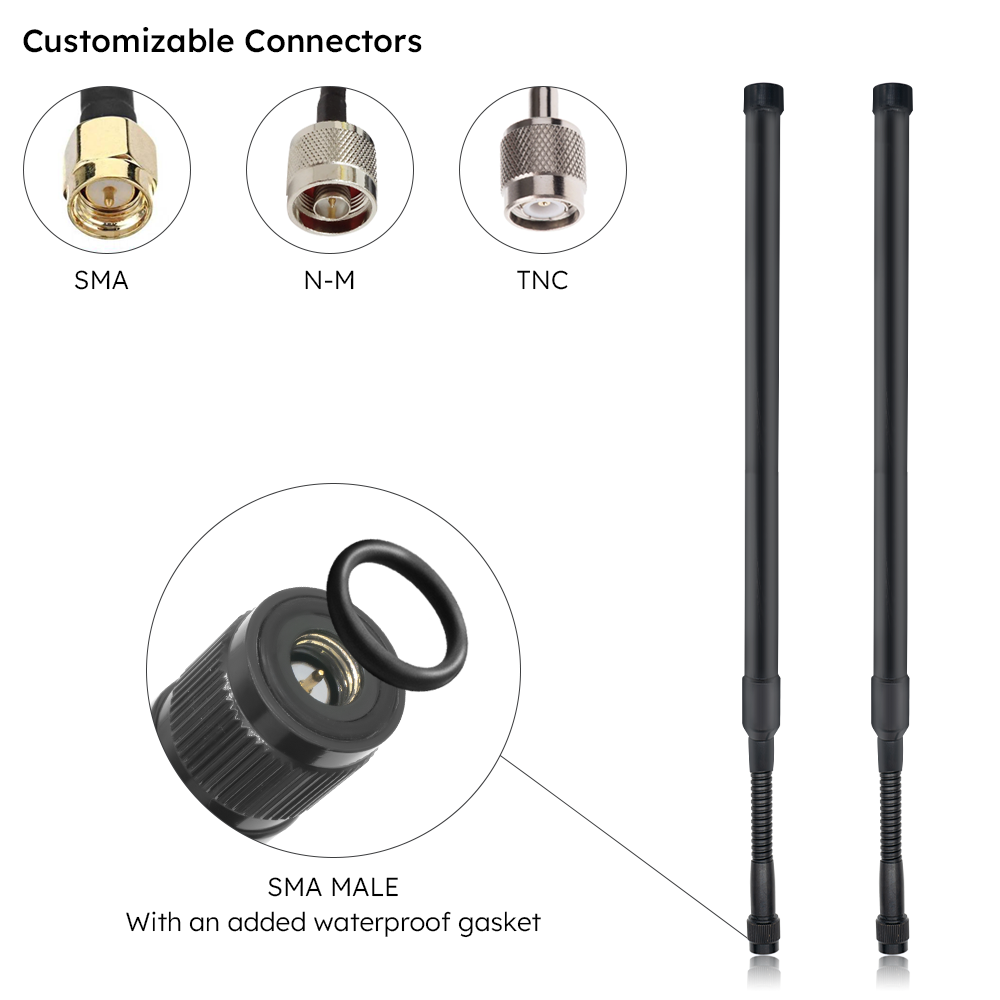

Customizable Connectors – RP-SMA, SMA, N, or TNC interface options.
RoHS compliant – Environmentally friendly materials for global deployment.
Excellent RF performance – Peak gain up to 4.15 dBi, maximum efficiency up to 105.2% with 50 Ω impedance.
Outdoor-ready IP67 rating – Dust-tight and protected against temporary immersion; suitable for exposed outdoor installations.

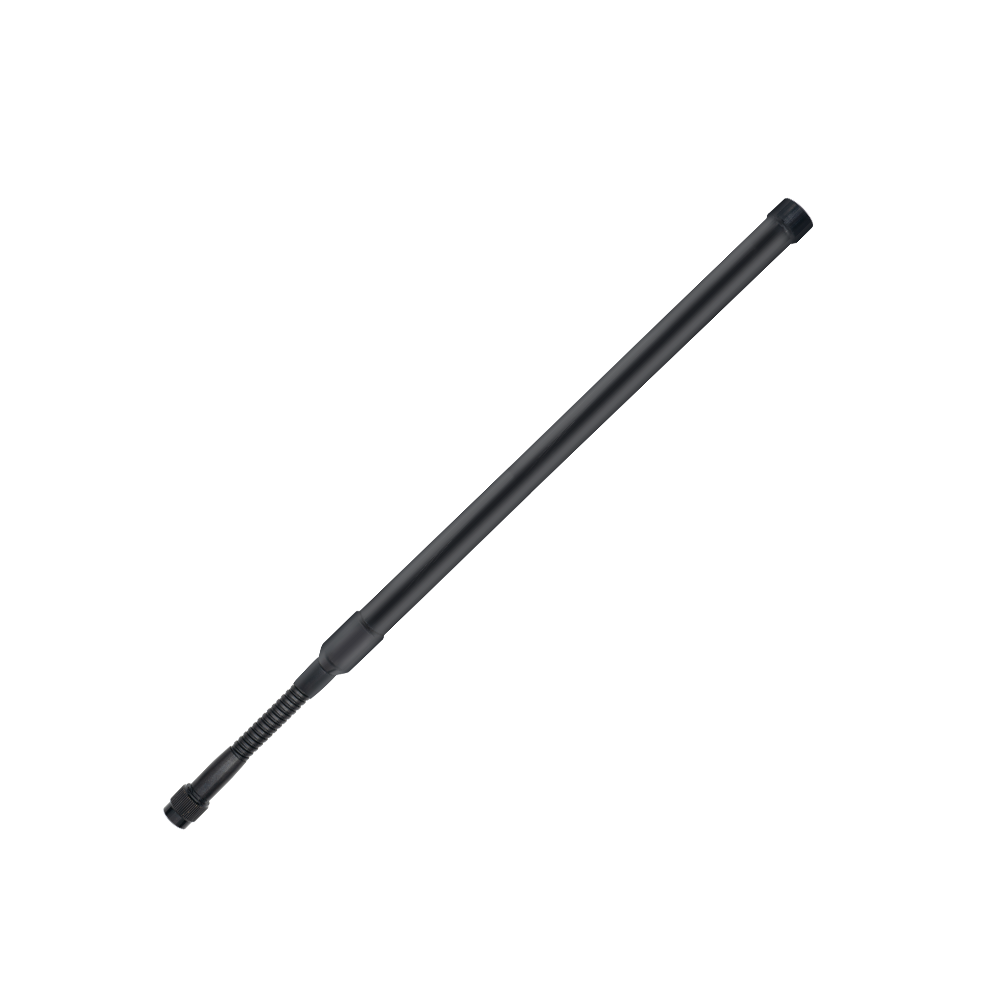

Rugged fiberglass radome – Ø18 mm fiberglass housing delivers strong mechanical strength and long-term outdoor reliability.

ABOOSTY ADCH001  4G LTE 698–960 / 1710–2690 MHz omni-directional gooseneck fiberglass whip antenna is designed for industrial IoT and M2M applications that require reliable outdoor cellular connectivity. The rugged Ø18 mm fiberglass radome and flexible gooseneck structure allow the antenna to be easily bent and oriented around metal cabinets, pipes and enclosures, ensuring stable 4G/3G/2G signal performance on site.

Covering the full 698–960 MHz and 1710–2690 MHz LTE bands with omni-directional radiation and up to 4 dBi peak gain, it is suitable for smart valves, pressure/level/flow transmitters, temperature transmitters, smart water meters, RTUs, data loggers and industrial control panels. The 50 Ω design and SMA male connector make integration with cellular routers and modems straightforward, while the IP67 protection and -40°C to +85°C operating range support long-term outdoor use in harsh environments.

Customization is available for OEM and project needs, including alternative connector types (SMA / N / TNC), cable length and assembly, mounting accessories and private label options. Our RF engineering team can provide professional support such as impedance matching, antenna placement recommendations and in-device optimization. On request, we offer RF and OTA test services with detailed reports (VSWR, radiation pattern, gain and efficiency, TRP/TIS) to help you achieve optimum 4G LTE performance in your final product.

LABEL
VALUE
Certificates Acquired
RoHS Compliant
Length(mm)
Ø18 x400 mm
Width(mm)
Height (mm)
Product Weight (g)
140
Freq. (MHz)
860-930
Technology Type
LoRa/Sigfox, ISM, LPWA, RFID, UHF
Frequency Bands
868 MHz, 4G, 2.4 GHz
Operating Temperature (℃)
-40°C to +85°C
Markets
Smart Industrial, Connected Health, Smart Cities, Public Safety, Others, Transportation
Other Attributes
N/A
Connector Style
Straight
Radiation Pattern
Omnidirectional
Polarity
Linear
Max Effi. (%)
105.2%
Peak Gain
2.41dBi
VSWR
≤ 3.5
Impedance (Ω)
50
Ingress/Impact
IP67
Termination Style
Connector
Antenna Connector Type
SMA-Male
Cable Type
N/A
Cable Length (mm)
400
Mechanical Style
Whip/Stick
Mounting Style
SMA, Outdoor Mount
Customization Option
Logo, Mounting Method, Connectors
  • Smart valves and intelligent pipeline control
  • Pressure / level / flow transmitters and remote process instrumentation
  • Temperature transmitters and environmental monitoring probes
  • Smart water meters and utility metering terminals
  • Remote telemetry units (RTUs) and data loggers in cabinets
  • Industrial pump stations and booster stations
  • Smart agriculture irrigation controllers and field gateways
  • Oil & gas, water treatment and HVAC control panels requiring reliable 4G backhaul
Part Number
User Story
Model
Description
PN
Note
AELH001
860–930 MHz 2.41 dBi Omni-Directional Gooseneck Fiberglass Whip Antenna
M04-0105600R0A
Customization supprted
AECH001

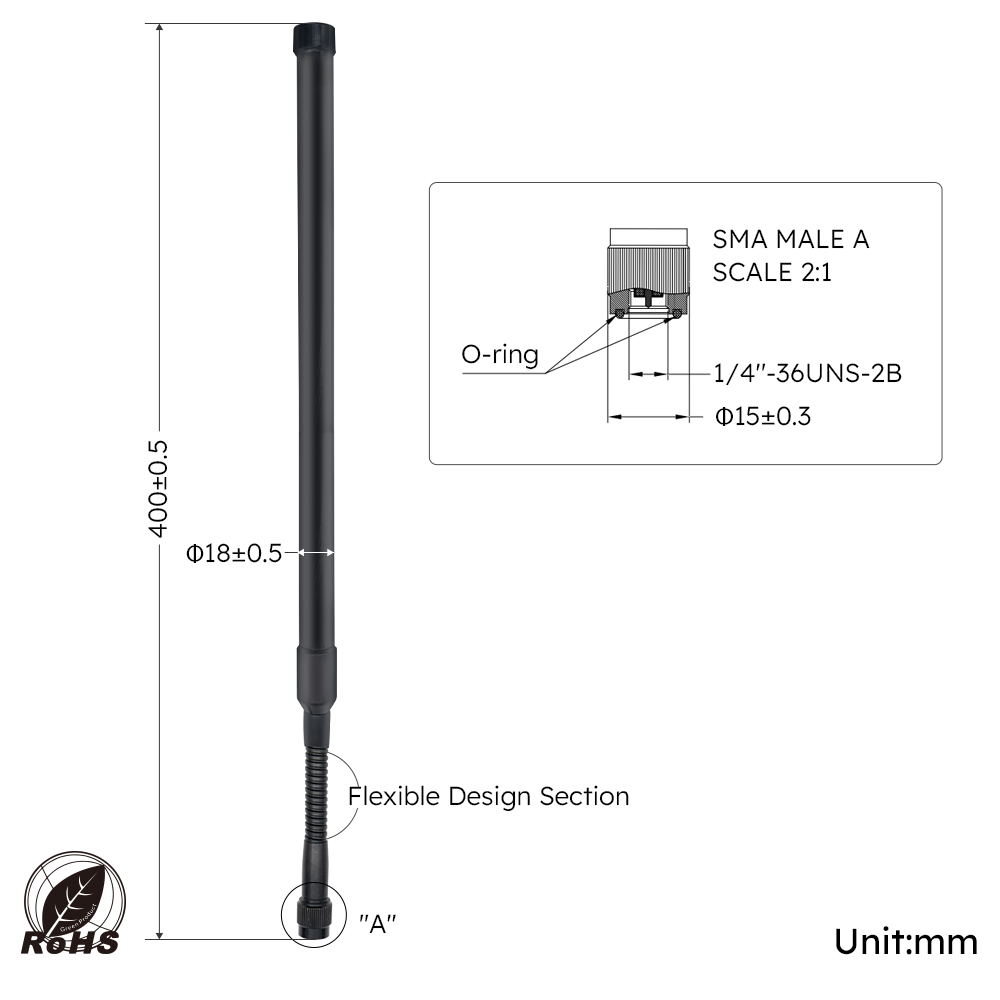

4G LTE Omni-Directional Gooseneck Fiberglass Antenna (Ø18 × 400 mm, IP67, SMA Male)
M04-0105760R0A
Customization supprted
