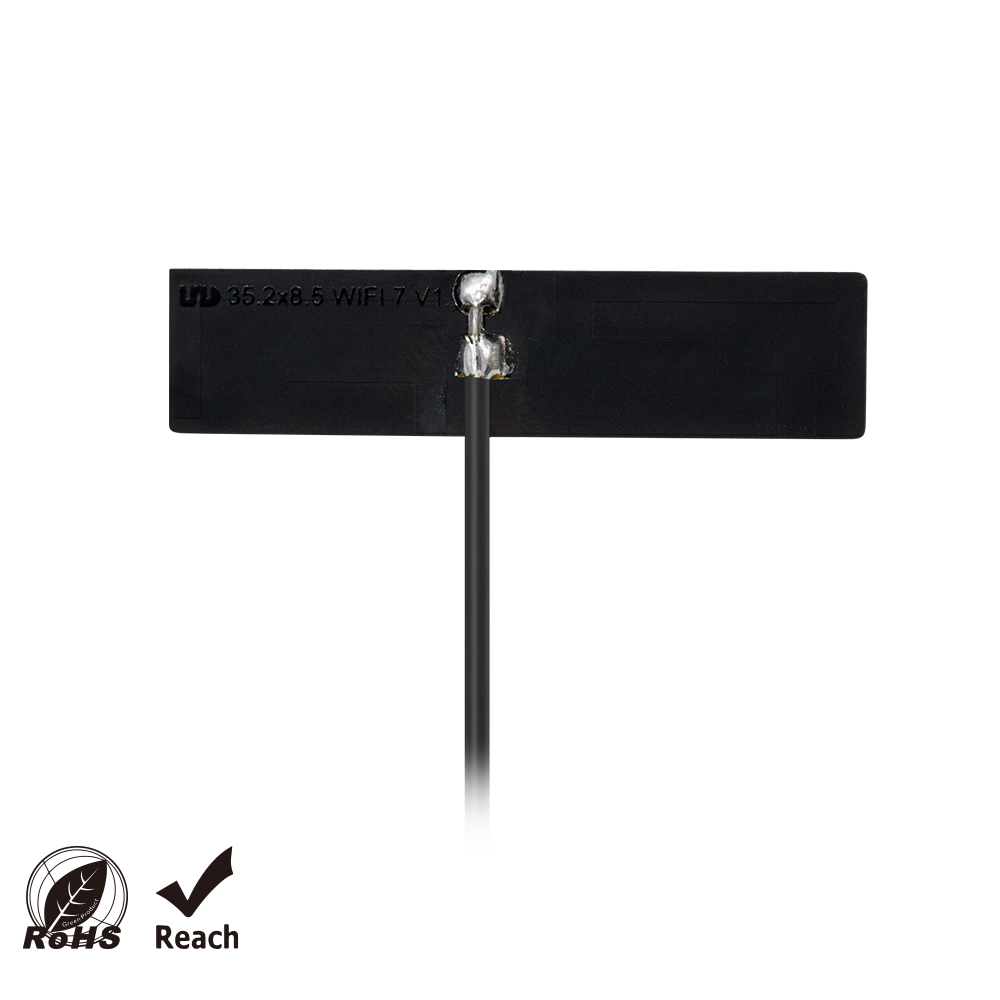

Adhesive 2.4G/5.8G/6G Wideband WiFi7 Embedded Flex PCB Antenna – 35.2x8.5mm

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive 2.4G/5.8G/6G Wideband WiFi7 Embedded Flex PCB Antenna – 35.2×8.5mm

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 91.39%
Cable: RF 1.13, L: 80mm
Connector: IPEX 1

High-performance Wi-Fi 7 embedded FPC antenna designed for 2.4GHz and 5.1–7.2GHz frequency bands. Offers stable RF and OTA tested performance, easy adhesive mounting, and customization for industrial and IoT applications

Optimized for Wi-Fi 7, Wi-Fi 6E, and backward compatibility with Wi-Fi 6/5

Ultra-thin and compact design

Omni-directional with dual-band support

Ground plane independent

Durable with copper interface

Customizable cable and connector options

REACH/RoHS compliant

Easy integration with adhesive mount and IPEX (MHF4) connector

Suitable for Zigbee, Bluetooth coexistence, and IoT multi-radio platforms

Supports custom connector and cable length options

Operating Frequency: 2400-2500 MHz | 510-72000 MHz
Peak Gain: Up to 4.79dBi

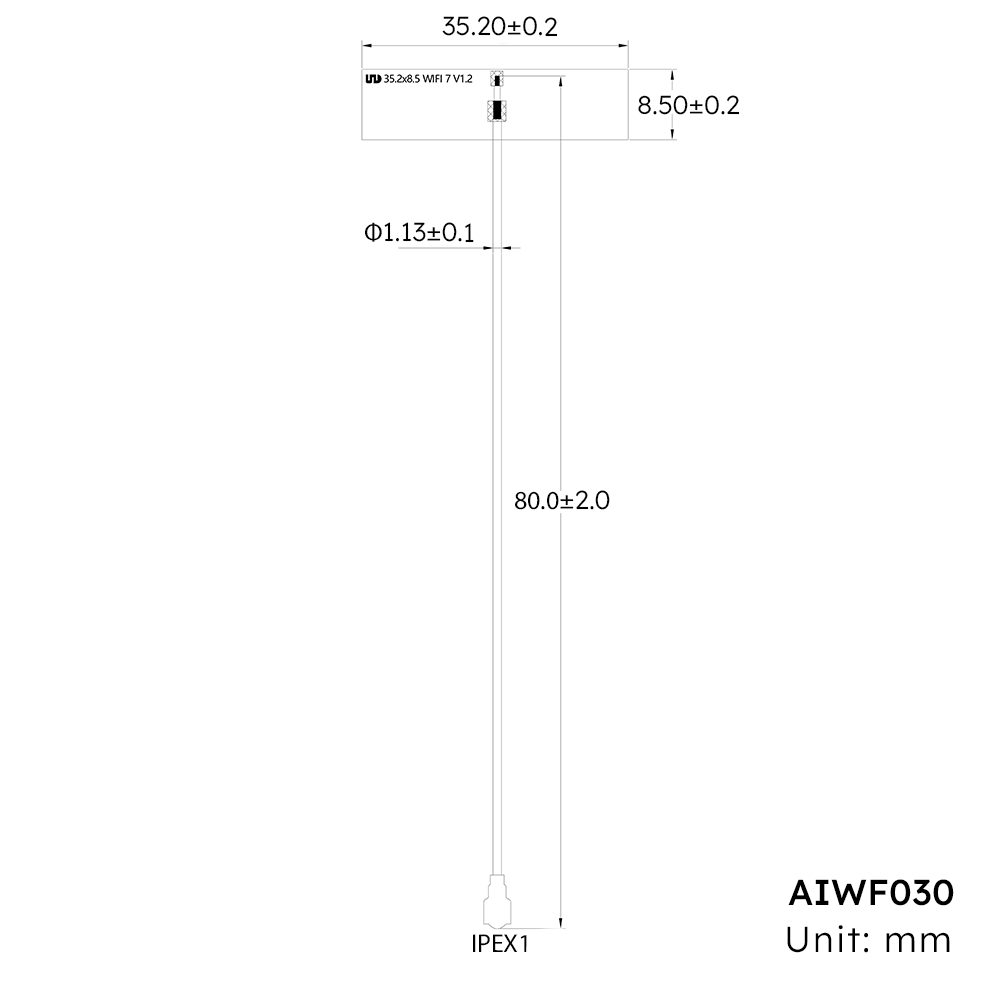

Dimensions: 35.2×8.5mm

The ABOOSTY AIWF030 Wi-Fi 7 antenna provides reliable dual-band and tri-band connectivity for next-generation devices. With a compact 35.2×8.5mm flexible PCB design and 80mm RG1.13 cable terminated with IPEX connector, it delivers 4.79 dBi peak gain. Optimized for Wi-Fi 6E/7, Bluetooth, and Zigbee coexistence, the AIWF030 is suitable for smart gateways, portable electronics, industrial IoT devices, and wireless monitoring systems. Featuring adhesive mounting and customizable cable/connector options, this antenna ensures stable integration validated by OTA and RF testing

Package Included: 1 x Flex PCB Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

35.2

Width (mm)

8.5

Height (mm)

0.2

Product Weight (g)

0.5

Freq. (MHz)

2400-2500, 5100-7200

Technology Type

2.4G & 5G WIFI, Bluetooth, Zigbee, WIFI 7

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Dipole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

91.39

Peak Gain

4.79 dBi

VSWR

2:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart home routers and Wi-Fi 7 gateways
IoT edge devices requiring multi-band connectivity
Consumer Electronics :Smart TV boxes and multimedia streaming devices
V2X
Industrial Equipment with wireless monitoring and control
Wireless modules in healthcare and medical electronics
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWF030

2.4G/5.8G /6G Wide Band Wi-Fi7 Embedded FPC Antenna 5.2x8.5mm with IPEX1 Φ1.13*80.0mm

M01-0202010R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
