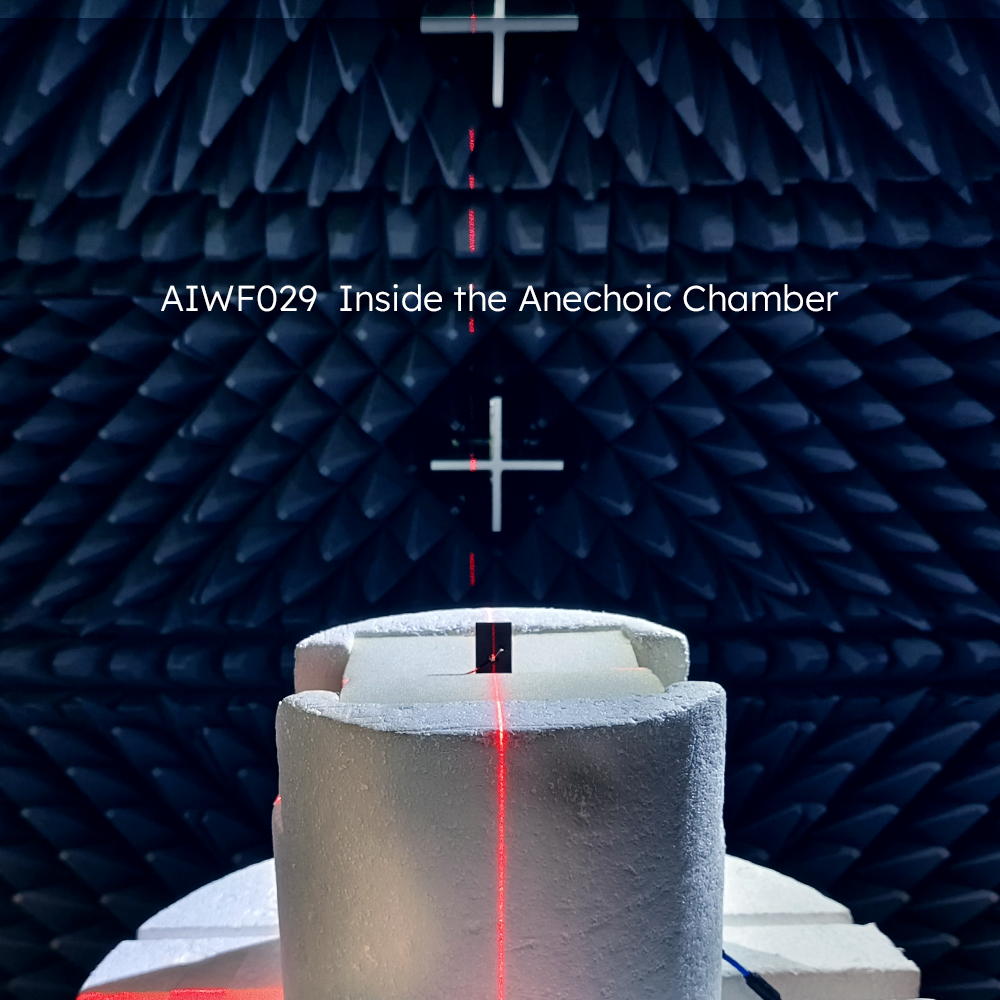

ABOOSTY AIWF029 (40×8mm) and AIWF031 (45×7mm) flexible PCB Wi-Fi 6E/7 antennas during OTA and RF performance validation in anechoic chamber, testing gain, VSWR, and radiation patterns.

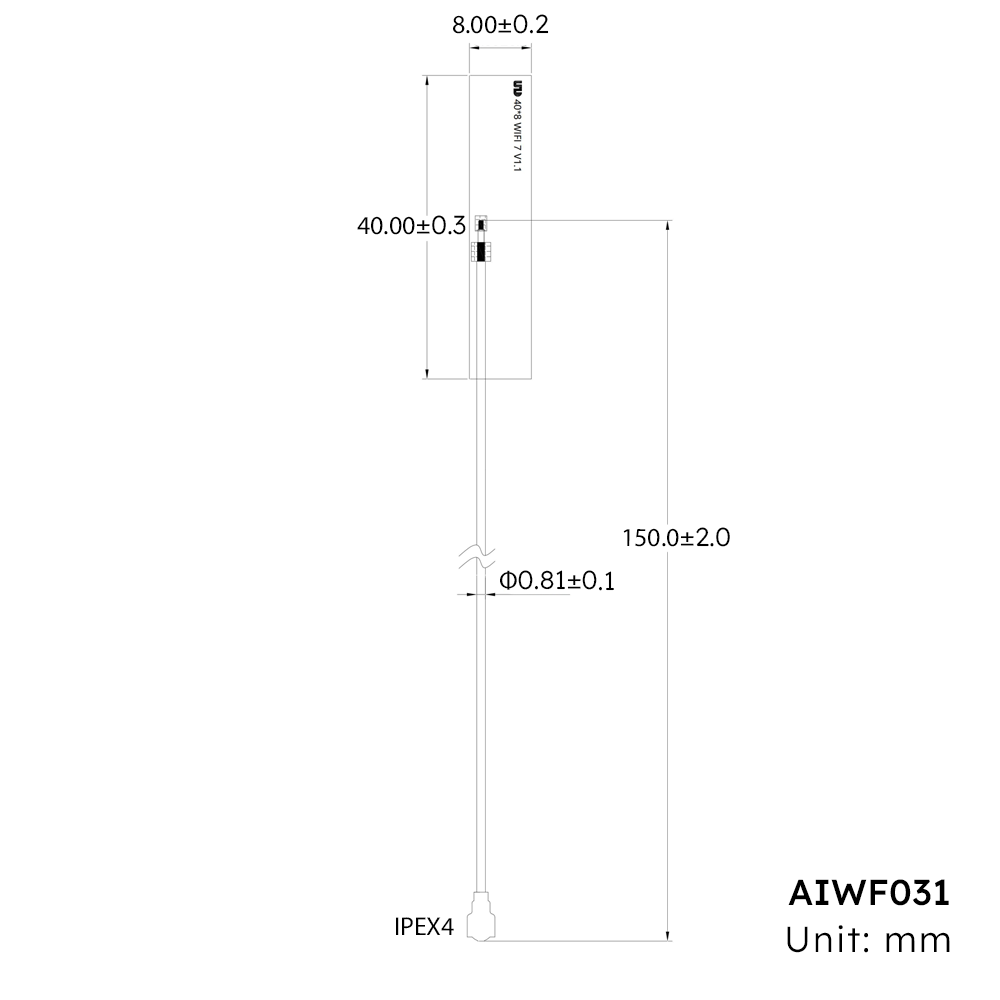

AIWF031 Wi-Fi 7 Embedded FPC Antenna Dual-Band Dismensions Ф0.81mm Length150mm

AIWF027-WiFi-Embedded-FPC-Antenna-application

AIWF029

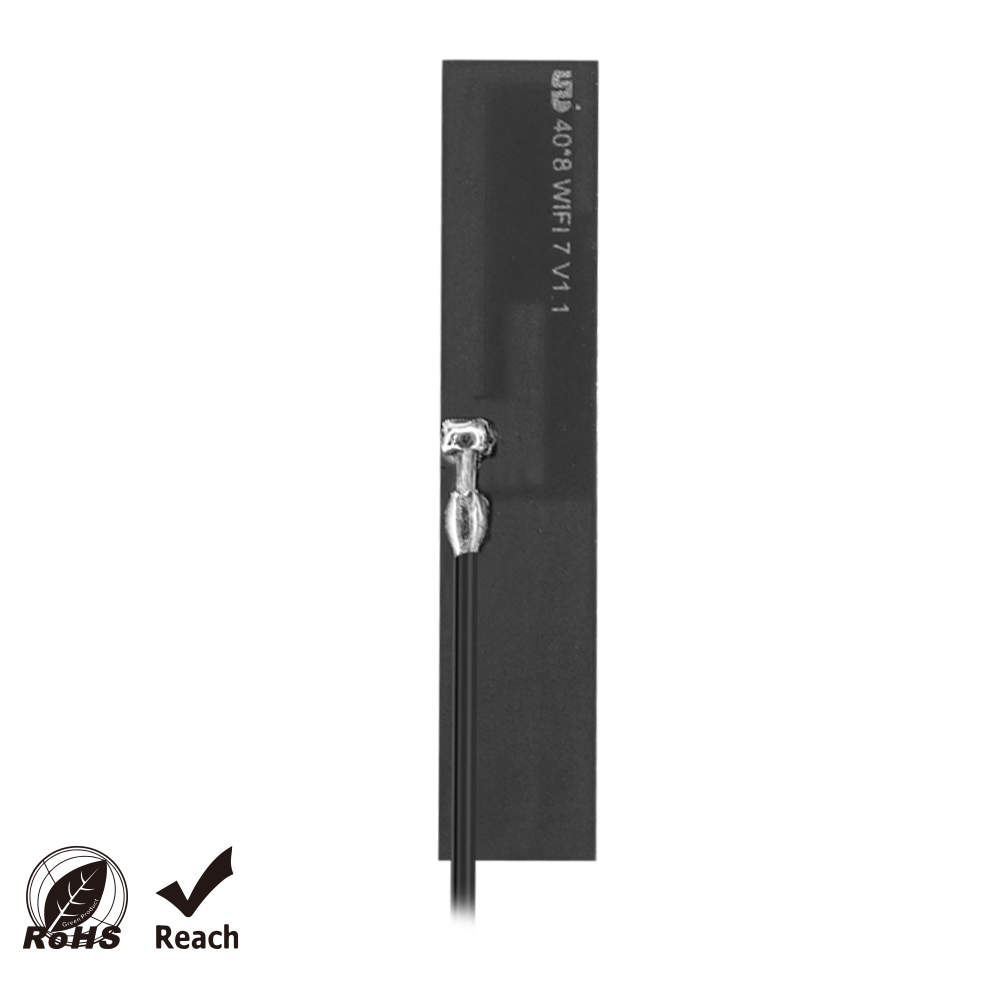

Adhesive 2.4G/5.8G Dual- Band WiFi7 Embedded Flex PCB Antenna – 40 x 8 mm

WIFI/Bluetooth/ISM

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

Adhesive 2.4G/5.8G Dual- Band WiFi7 Embedded Flex PCB Antenna – 40 x 8 mm

Product Overview

Key Features

Description

Specification

Applications

Max Efficiency: up to 78.19%
Cable: RF 1.13, L: 100 mm
Connector: IPEX 1

Compact Wi-Fi 7 embedded FPC antenna, optimized for 2.4GHz and 4.9-7.2GHz bands, delivering stable RF performance with adhesive mounting. Supports OTA testing, RF validation, and full customization for industrial and IoT applications

Optimized for Wi-Fi 7, Wi-Fi 6E, and backward compatibility with Wi-Fi 6/5

Ultra-thin and compact design

Omni-directional with dual-band support

Ground plane independent

Durable with copper interface

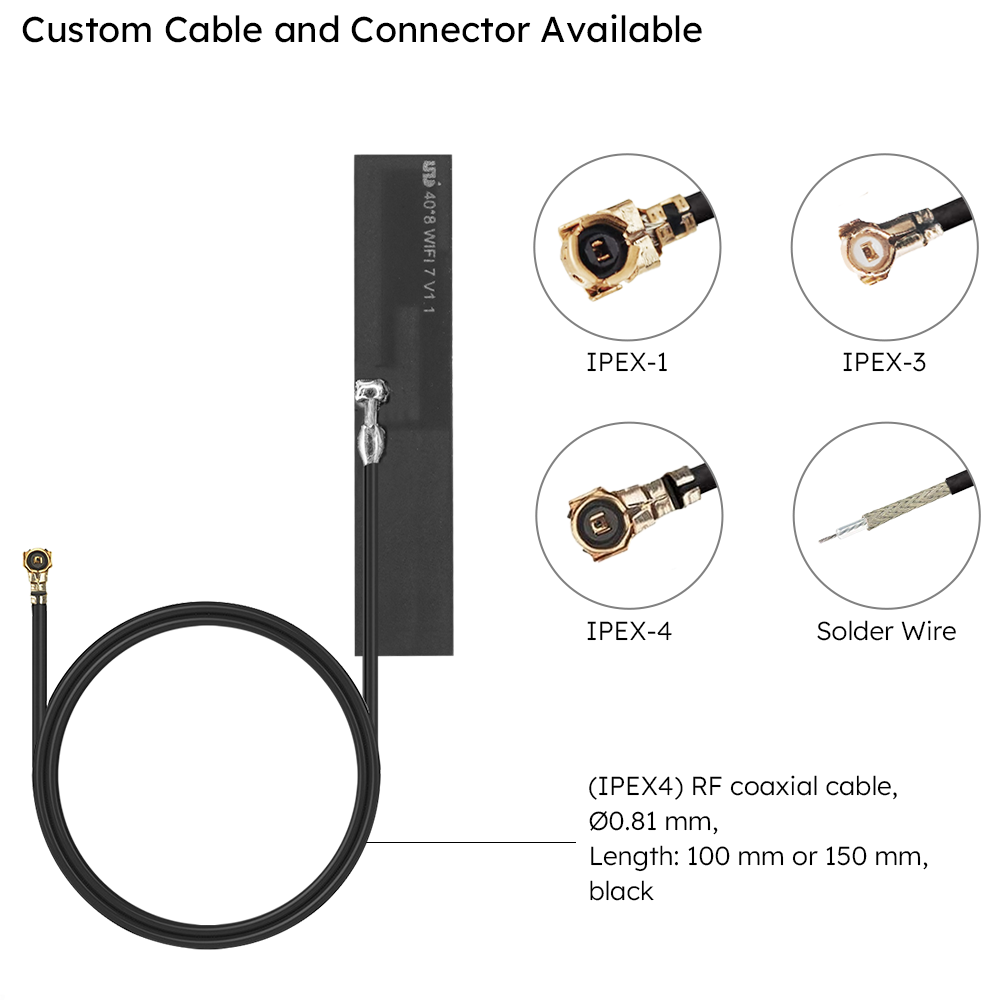

Customizable cable and connector options

REACH/RoHS compliant

Easy integration with adhesive mount and IPEX (MHF4) connector

Suitable for Zigbee, Bluetooth coexistence, and IoT multi-radio platforms

Supports custom cable lengths and connector types

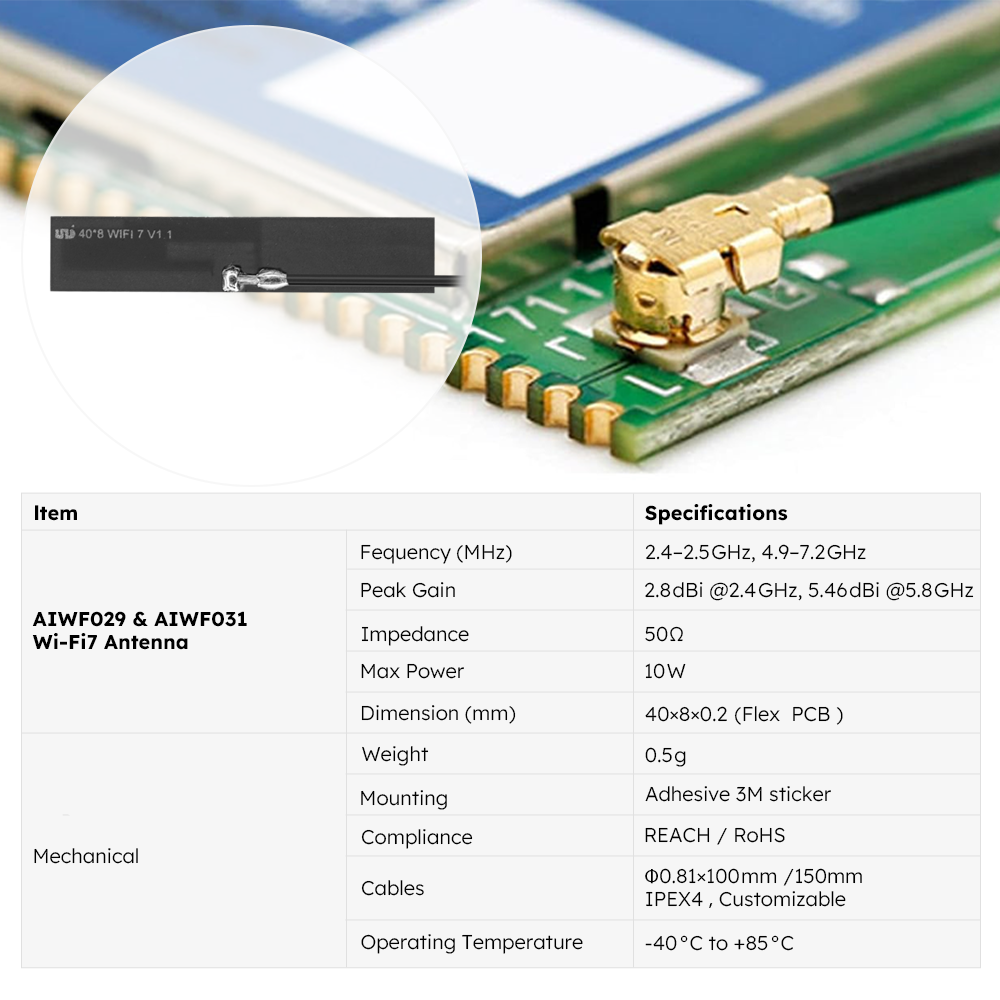

Operating Frequency: 2400-2500 MHz | 4900-7200 MHz
Peak Gain: Up to2.89 [email protected]/Up to5.46 [email protected]
Dimensions: 40.0 x 8.0 mm

The ABOOSTY AIWF029 Wi-Fi 7 FPC antenna is designed for next-generation smart devices requiring reliable dual-band and tri-band wireless connectivity. With dimensions of 40x8mm and a 100mm RG1.13 cable terminated with an I-PEX connector, this antenna offers peak gains of 2.80 dBi at 2.4GHz and 5.46 dBi at 5.8GHz. It supports Wi-Fi 6E/7, Bluetooth, and Zigbee coexistence, making it suitable for IoT devices, industrial automation, smart home gateways, and handheld wireless terminals. Fully customizable in cable length and connector type, the AIWF029 ensures stable performance validated by OTA and RF testing in professional facilities

Package Included: 1 x Flex PCB Antenna

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

Length (mm)

Width (mm)

Height (mm)

0.2

Product Weight (g)

0.5

Freq. (MHz)

2400-2500, 5100-5900

Technology Type

2.4G & 5G WIFI, Bluetooth, Zigbee

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication

Antenna Type

Dipole

Connector Style

Straight

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

84.25

Peak Gain

5.46 dBi

VSWR

2.2:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

Connector

Antenna Connector Type

IPEX 4

Cable Type

RF 1.13 Coax

Cable Length (mm)

100

Mechanical Style

FPC

Mounting Style

Adhesive Mount

Customization Option

Logo, Packaging, Cables and Connectors

Smart home routers and Wi-Fi 7 gateways
IoT edge devices requiring multi-band connectivity
Consumer Electronics :Smart TV boxes and multimedia streaming devices
V2X
Industrial Equipment
Medical Devices
Drones and Robotics
Smart City Infrastructure

Part Number

User Story

Model

Description

Note

AIWF029

Dual-Band Wi-Fi7 Embedded FPC Antenna 40x8mm with IPEX4 Φ0.81*100mm

M01-0202120R0A

Customization supported

AIWF031

Dual-Band Wi-Fi7 Embedded FPC Antenna 40x8mm with IPEX4 Φ0.81*150mm

M01-0202040R0A

Customization supported
