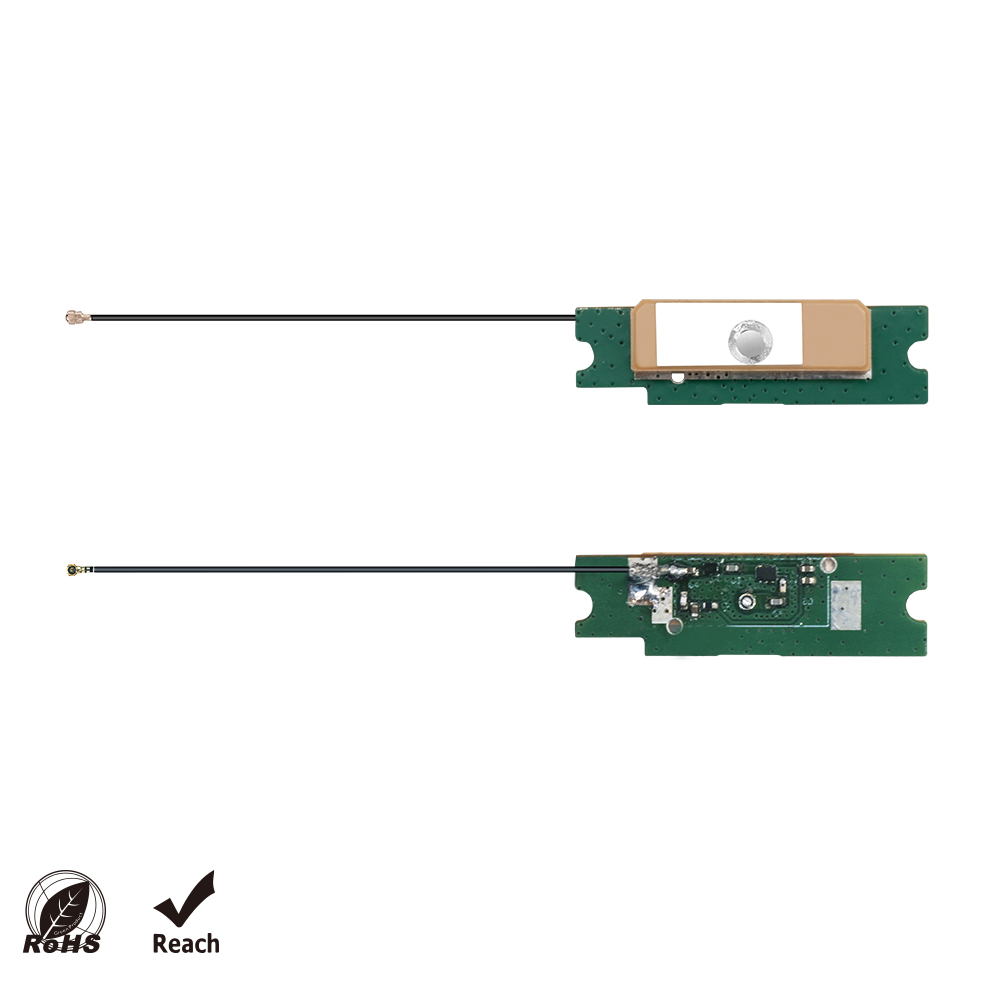

AIGC057-M01 compact active GNSS patch antenna with 30×8.5×6.5 mm ceramic design, GPS L1 and BeiDou B1 support

AIGC057-active GNSS antenna with 30×8.5×6.5 mm dimensions with high precision

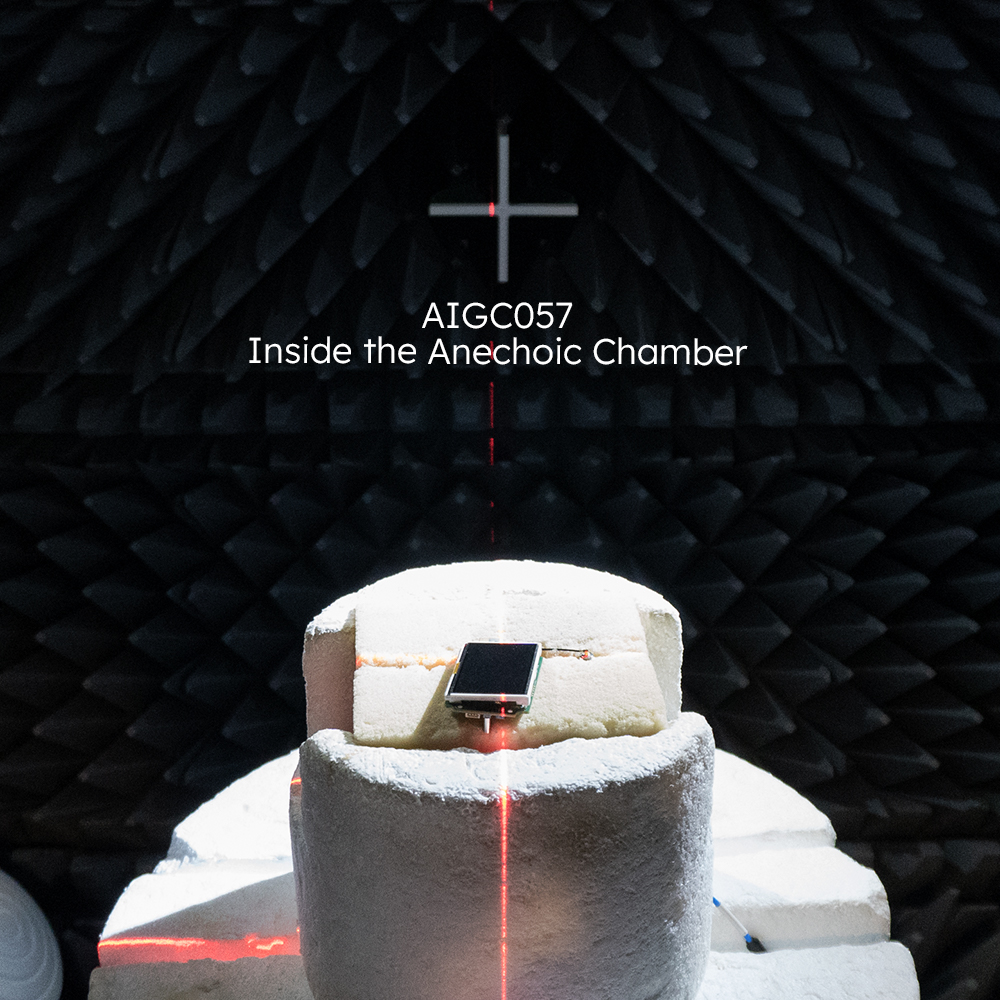

AIGC057-M01 GNSS antenna radiation pattern test in RF anechoic chamber -ABOOSTY

AIGC057

30 ×8.5 ×6.5mm Active B1/L1 Dual-band BDS/GPS Antenna

GNSS/GPS

Single Internal Antennas

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

30 ×8.5 ×6.5mm Active B1/L1 Dual-band BDS/GPS Antenna

Product Overview

Key Features

Description

Specification

Applications

Covering Bands:
GPS L1 1575.42MHz
BDS B1C 1575.42MHz
BDS B1I 1561.098MHz

Dimensions: 35x35x6.5 mm

Tuned for 35 x 35 mm Ground Plane

Directional Passive GNSS Ceramic Antenna

SMT Patch Embedded Antenna

Low Axial Ratio

Miniaturized, Multi-system Compatible

Custom Cables and Connectors Available

RoHS & Reach Compliant

• 30×8􀀁5×6􀀁5mm Embedded Ceramic Patch Element
• Miniaturized, Multi-system Compatible
• Linear Polarization
• Ground Plane Dependent
• RoHS & Reach Compliant
• Covering Bands: GPS (L1) / Galileo (E1) /BeiDou (B1)

LABEL

VALUE

Certificates Acquired

RoHS Compliant, Reach

Length (mm)

Width (mm)

8.5

Height (mm)

6.5

Product Weight (g)

3.1

Freq. (MHz)

1575.42±2, 1227.6±1

Technology Type

GALILEO, GNSS/GPS

Frequency Bands

L1, E1, B1

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Mobile Communication, Others

Other Attributes

N/A

Antenna Type

Active GNSS, Active GPS, Active

Radiation Pattern

Directional

Polarity

Linear

Max Effi. (%)

44.02%

Peak Gain

-3.3dBi

VSWR

<1.8

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

PCB

Antenna Connector Type

IPEX 1

Cable Type

RF 1.13 Coax

Cable Length (mm)

Mechanical Style

Patch

LNA Gain

24.05 dB

Noise Figure (dB)

1.5 Max

Axial Ratio (AR) (dB)

<1.5 dB

Mounting Style

Adhesive Mount, SMT/SMD, SMA

Customization Option

Logo, Packaging, Cables and Connectors

Satellite Navigation Receivers
Geodetic Surveying and Mapping
Channel Surveying and Mapping
Precision Agriculture -– GNSS-enabled farming equipment, tractors, and autonomous agricultural UAVs.
Marine Surveying
Fleet and Asset Tracking for vehicle telematics, logistics monitoring, and asset management systems.
Oil, Gas, and Mining Industries for for exploration, drilling, and heavy industrial environments.
IoT and M2M Connectivity – Smart meters, remote monitoring, and connected devices requiring stable GNSS reception.
Hand-held/Portable Devices for navigation tools, smart wearables, and personal trackers.
UAVs and Drones – High-gain GNSS antenna for mapping drones, aerial surveying, and UAV-based delivery systems.

Part Number

User Story

Model

Description

Note

AIGC057

30 x8.5 x6.5 mm Active B1/L1Dual- Band BDS/GPS Antenna for Meshtastic Handle

M01-0300300R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
