AEHN002 RF Power Amplifier – High Power 2.4/5.8GHz Module Industrial RF Power Amplifier for UAV & Wireless Systems

AEHN002-2.4-GHz-5.8-GHz-100W-Wide-Band-RF-Power-Amplifier-for-Industrial-use.

AEHN002

AEHN002 2.4 GHz/5.8 GHz 100W Wide-Band RF Power Amplifier for UAV, WiFi & IoT Systems

RF Modules

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

AEHN002 2.4 GHz/5.8 GHz 100W Wide-Band RF Power Amplifier for UAV, WiFi & IoT Systems

SKU： AEHN002 分类： Power Amplifier, RF Modues 标签： RF Amplifier, UAV, Wi-Fi 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

AEHN002 provides 100W output and 50dB gain in 2.4GHz & 5.8GHz bands. Its mid-size form factor makes it ideal for UAV drones, WiFi 6/7 access points, IoT gateways, and telecom base stations. OEM/ODM customization supported with full RF and OTA validation.

Multi-Band Support – 30–80 / 100–500 / 2.3–2.7 / 5.1–5.95 GHz

Circulator Options – Flexible integration

Wireless Infrastructure & Cellular Backhaul

High Output Power – 50 dBm / 100 W

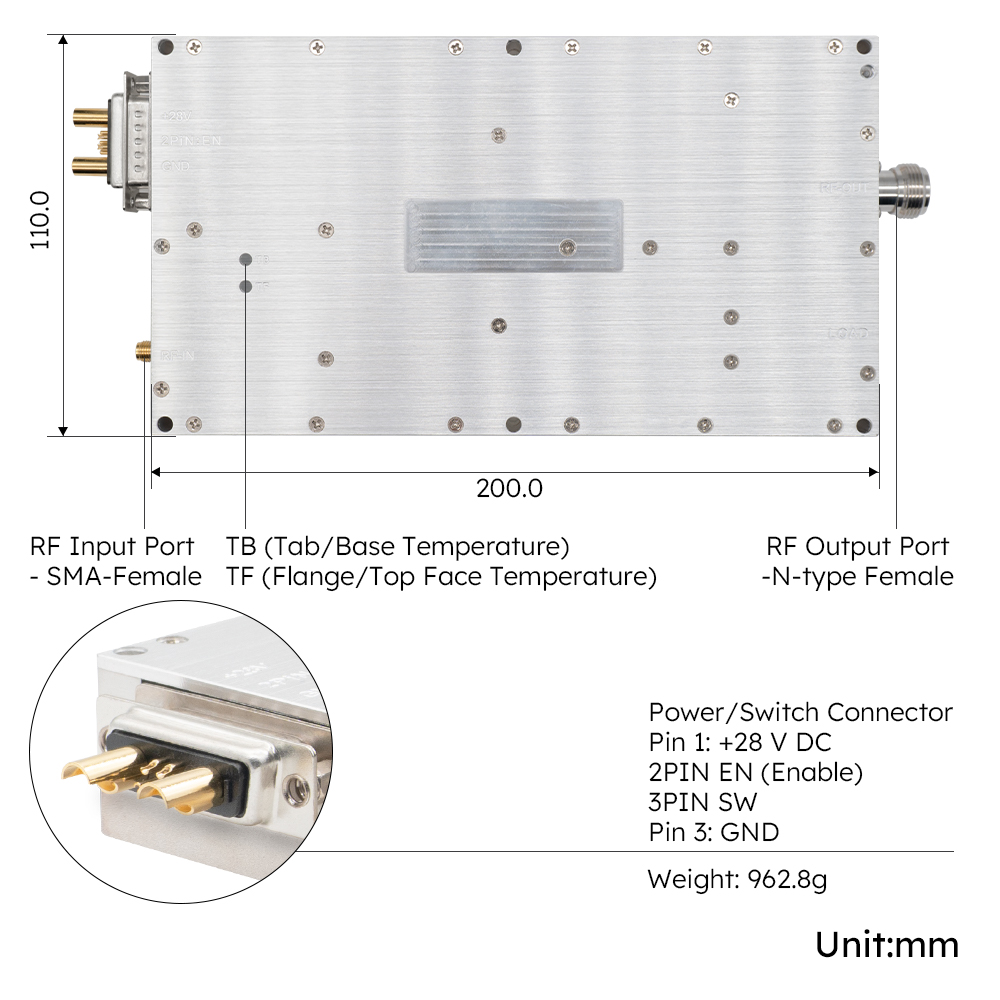

Industrial Housing: Optimized 200×110×20mm size for integration.

Applications: UAV C2, base stations, industrial wireless, defense comms

Warranty: 1-year standard warranty.

UAV & Industrial-Grade – Endurance & reliability

The AEHN002 RF Power Amplifier is optimized for both UAV communication systems and high-capacity wireless infrastructure. With dual-band operation (2.4GHz and 5.8GHz), it ensures reliable signal amplification across WiFi, IoT, and drone applications. The 200×110×20 mm housing balances power handling with integration flexibility.

Designed for engineers requiring stable long-term operation, AEHN002 is tested for high duty-cycle, low distortion, and rugged field performance. Suitable for UAV drones, wireless APs, IoT data hubs, smart city infrastructure, and private 5G/industrial wireless solutions.

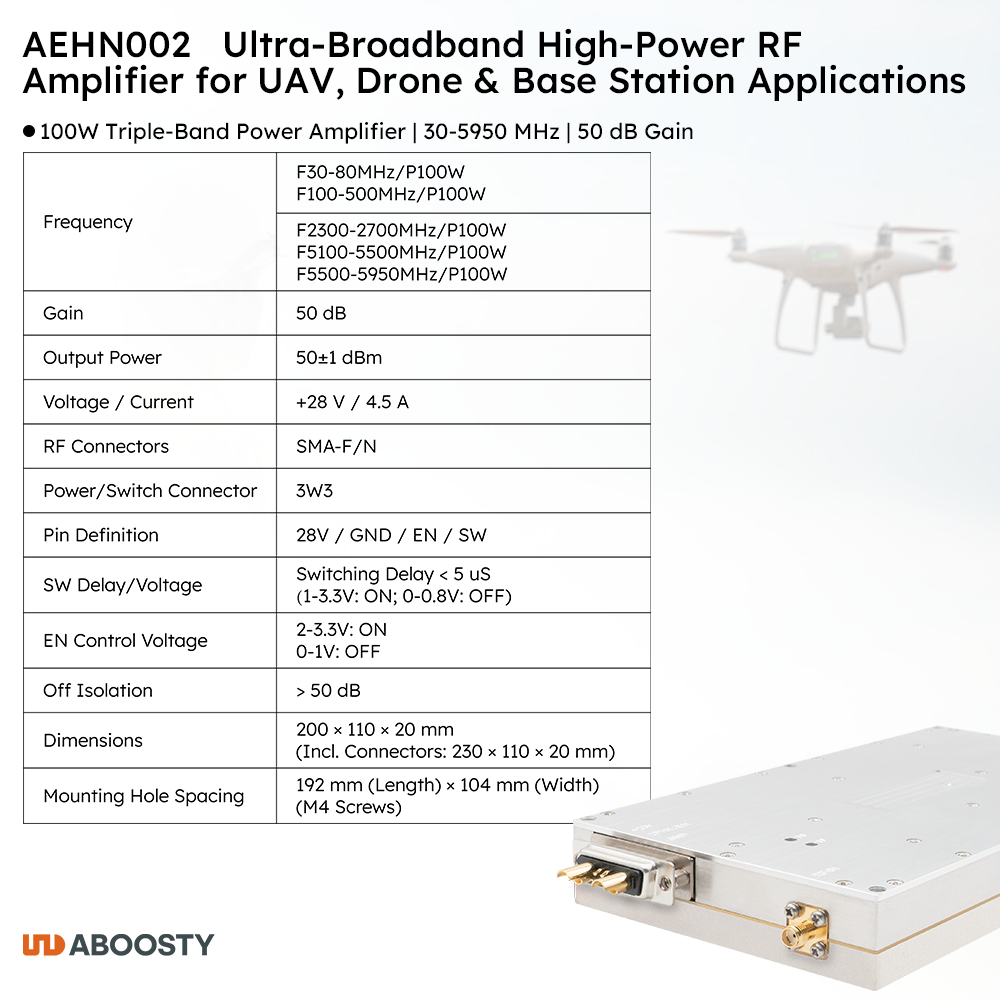

LABEL

VALUE

Length(mm)

200

Width(mm)

110

Height (mm)

Product Weight (g)

962.8

Freq. (MHz)

30-80MHz, 100-500MHz, 2300-2700MHz, 5100-5500MHz, 5500-5950MHz

Technology Type

2.4G WIFI, 5G WIFI, 2.4G & 5G WIFI, ISM

Frequency Bands

2.4 & 5.8 GHz

Operating Temperature (℃)

-40°C to +85°C

Power Supply

+28 V

PIN Configuration

Warning: Array to string conversion in /www/wwwroot/www_aboosty_com/wp-content/themes/aboosty/components/yg-product-overview.php on line 271
Array

Power Consumption

TX 10–100 mA, 100–500 mA, >1 A

Package Type

LCC

Working Mode

With Antennas

Customization Option

Logo, Cables and Connectors, Packaging, Non-customizable

Wireless Infrastructure
Military and Aerospace Applications
Test Instrumentation
Radar Systems
5G Wireless Communications
Microwave Radio Systems
TR Modules
Research and Development
Cellular Base Stations

Part Number

User Story

Model

Description

Note

AEHN001

AEHN002 RF Power Amplifier | 2.4/5.8GHz 100W Module for UAV, WiFi & IoT Systems

M04-0105650R0A

Customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days
