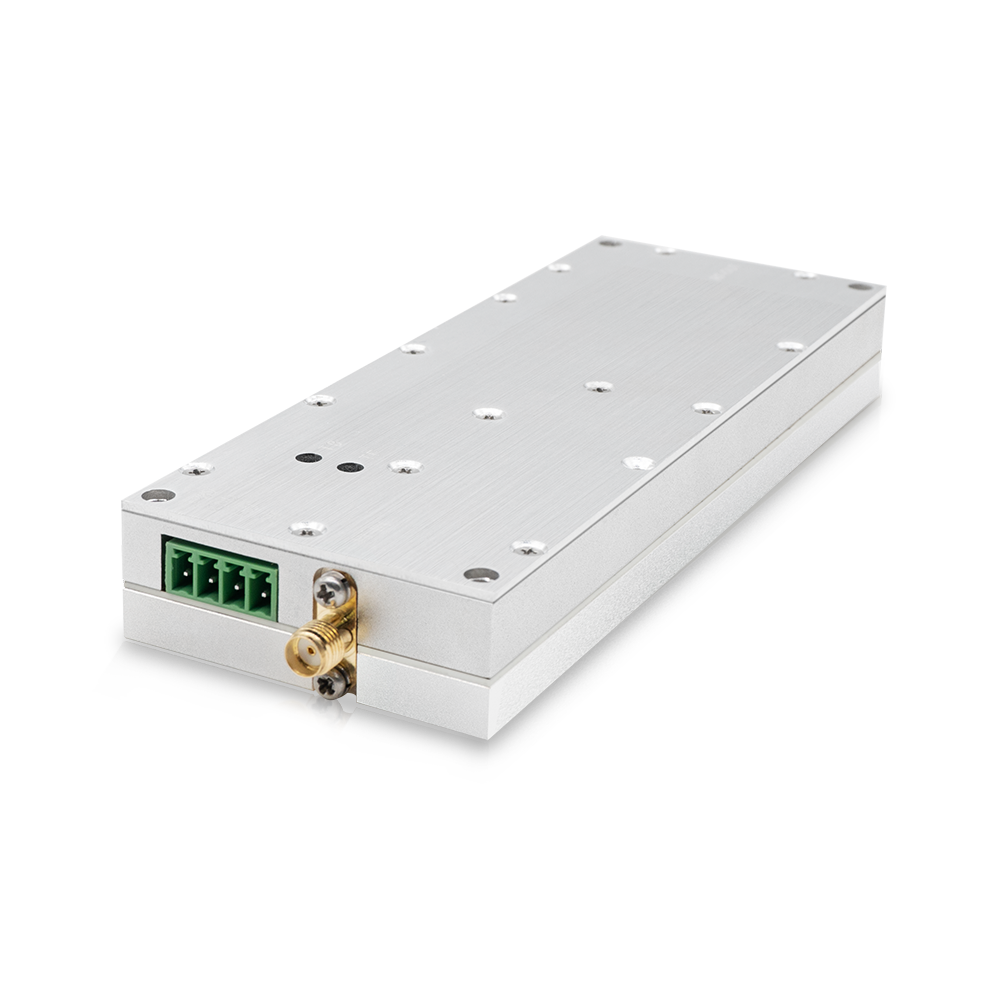

AEHN001 5 GHz RF Power Amplifier – 50 W Compact Module for UAV & Wi-Fi

The ABOOSTY 50 W RF Power Amplifier delivers high gain (50 dB) and 47 dBm output power across 4.8–5.85 GHz. Designed for Wi-Fi, radar, and SatCom applications, it offers fast <5 µs switching, RoHS compliance, and robust OEM/ODM support with complete R&D and RF testing facilities.

SKU： AEHN001 分类： , 标签： 品牌：

Product Overview

Key Features
Description
Specification
Applications

AEHN001 is a compact 50 W RF power amplifier optimized for UAV telemetry and Wi-Fi applications. It provides wideband 4.8–5.85 GHz coverage, low distortion, and rugged reliability. Supports OEM/ODM customization with in-house RF compliance testing, OTA validation, and full manufacturing capability.

High Output Power – Up to 50 W (47 dBm) for extended wireless coverage and robust radar transmission.
Broadband Coverage – Supports 4800–5000, 5150–5300, and 5700–5850 MHz frequency ranges.
High Gain – 50 dB gain ensures efficient signal amplification with minimal distortion.
Fast Switching – <5 µs delay for real-time TDD and radar pulse modulation.

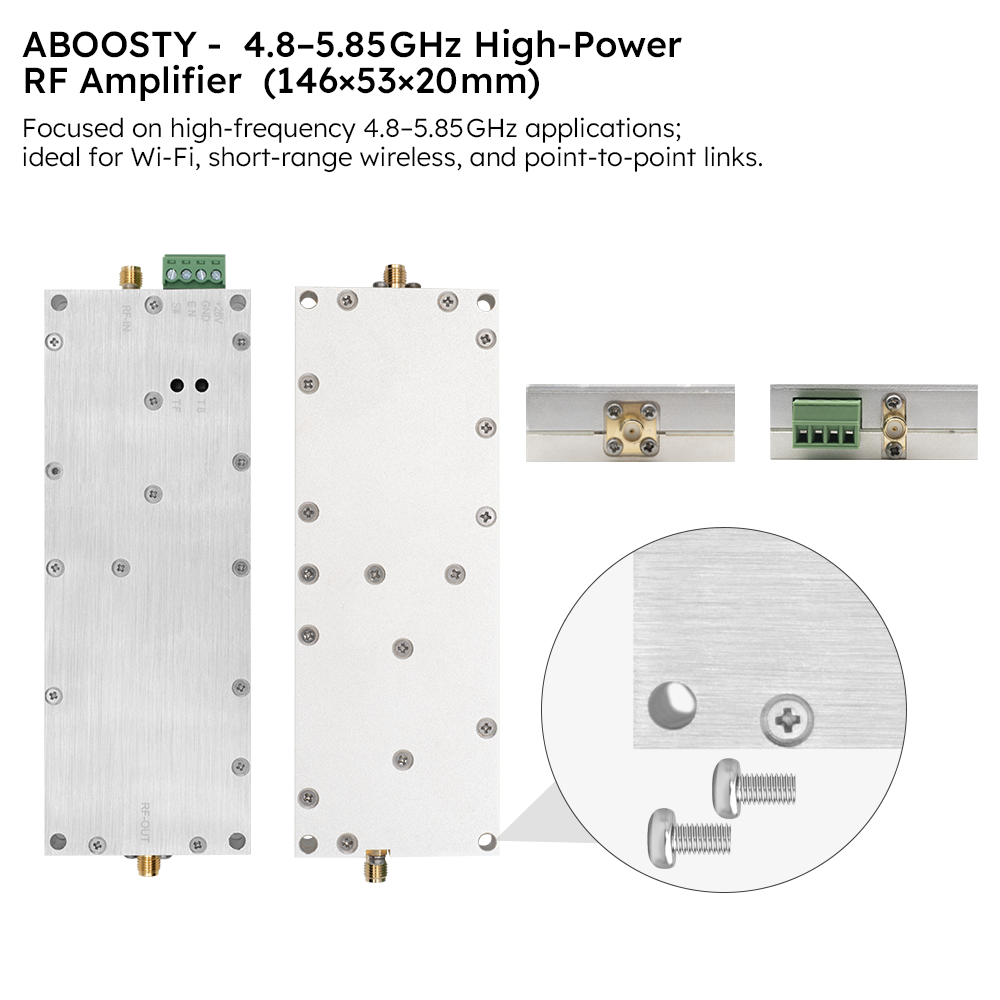

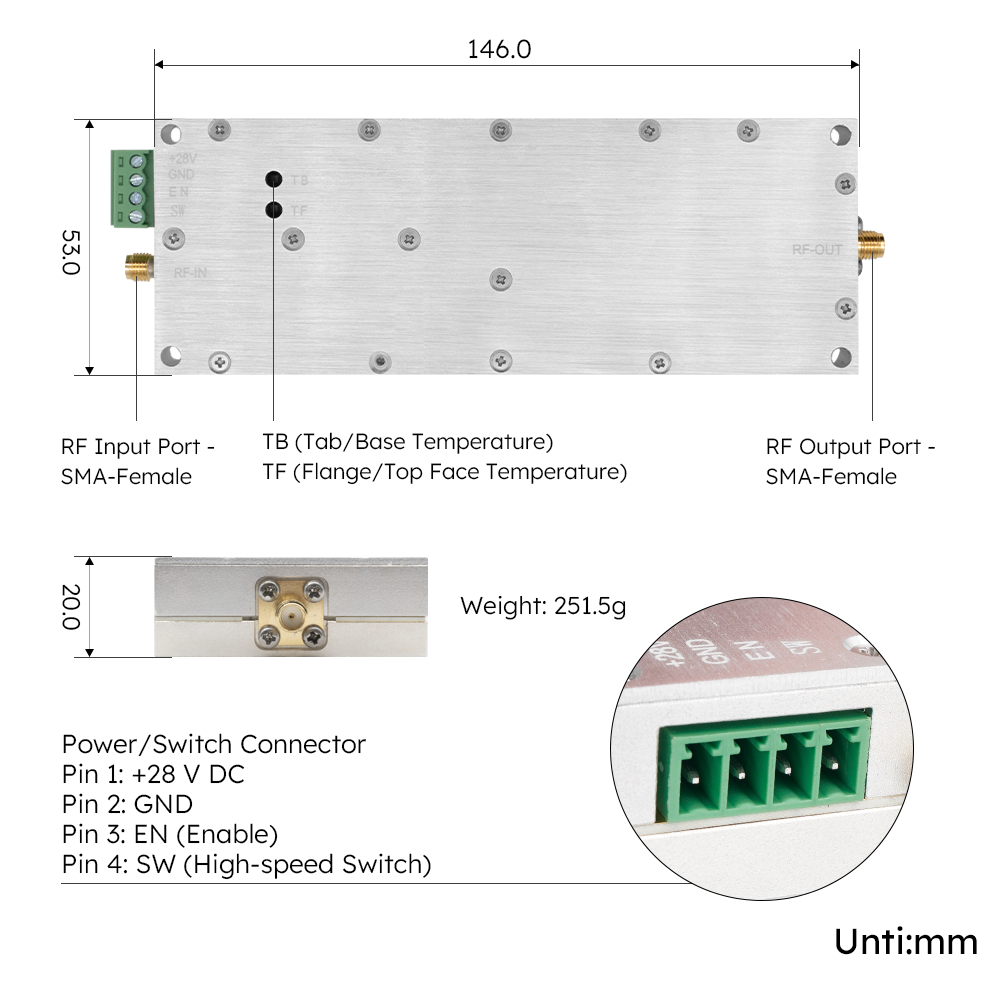

Compact & Robust Design – 146×53×20 mm housing with M4 mounting holes for easy integration.
Reliable Power Management – Operates at +28 V / 4.5 A with stable enable and switch controls.
Environmental Compliance – RoHS/REACH certified, wide operating temperature (-40°C to +85°C).
OEM/ODM Ready – Fully customizable with ABOOSTY’s R&D and RF testing capabilities.

The AEHN001 is a high-performance RF power amplifier delivering 50 W (47 dBm P1dB) across the 5 GHz ISM band (4.8–5.85 GHz). Designed for UAV telemetry, Wi-Fi routers, wireless video transmission, and portable communication systems, it combines a PA+LNA integrated architecture with compact, lightweight housing suitable for UAV payloads. With ±1.5 dB gain flatness, low EVM distortion, and +28 V supply interface, it ensures stable output across OFDM and QAM waveforms. Each amplifier undergoes RF testing (VSWR, gain, ACPR, spectral mask) and OTA validation. OEM/ODM customization includes connectors, gain levels, mechanical housing, and heat dissipation design.

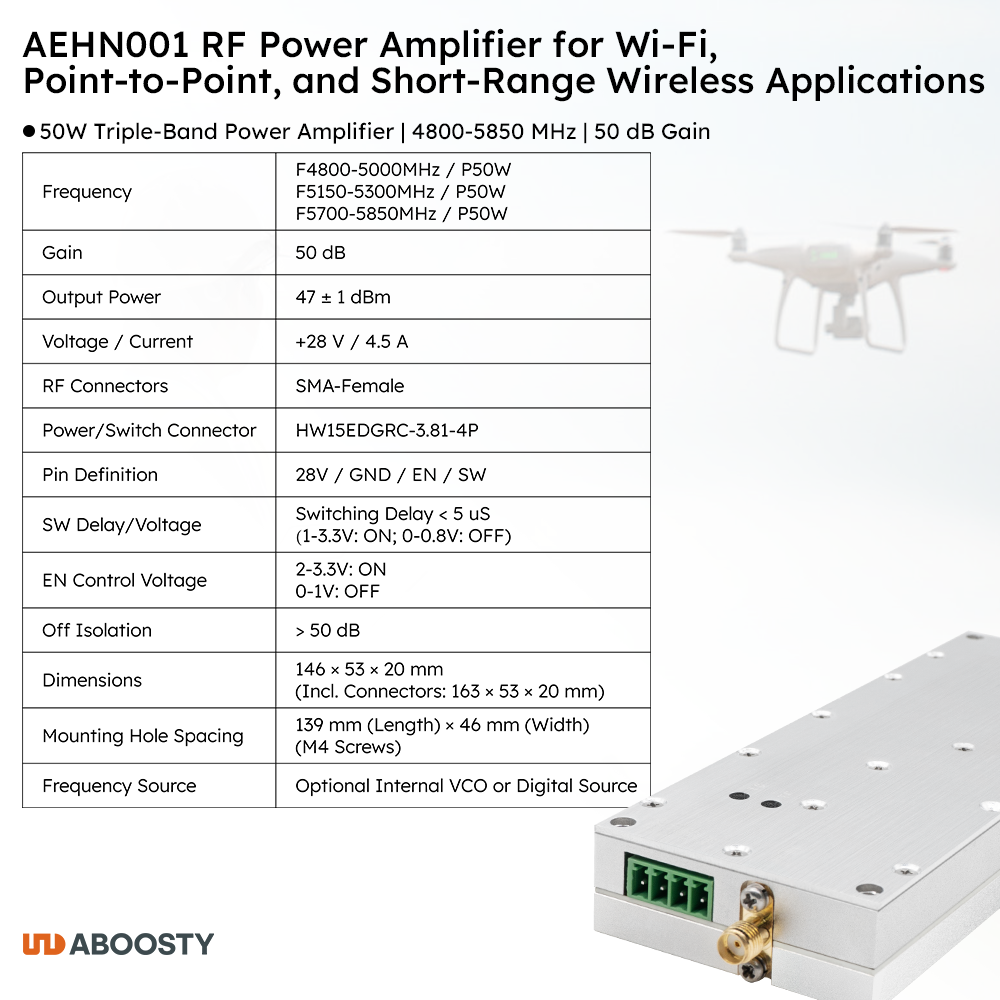

LABEL
VALUE
Length(mm)
146
Width(mm)
53
Height (mm)
20
Product Weight (g)
251.5
Freq. (MHz)
433±10
Technology Type
5G WIFI, WIFI6E
Frequency Bands
5G
Operating Temperature (℃)
-40°C to +85°C
Power Supply
+28 V
Power Consumption
TX 10–100 mA, 100–500 mA, >1 A
Package Type
LCC
Working Mode
With Antennas
Customization Option
Logo, Packaging, Non-customizable
  • Wireless Communication – Wi-Fi 6/7 access points
  • Portable radio and tactical wireless equipment
  • Test Instrumentation & Research Labs
  • UAVs & Drones (Airborne Video/Data Link)
  • Microwave Radio Links
  • TR Modules in Compact Radar or Communication Systems
Part Number
User Story
Model
Description
PN
Note
AEHN001
50W igh-gain compact RF amplifier for 4.8–5.85 GHz Wi-Fi and UAV
M04-0105640R0A
cable and connector customization supported
