ADWH007 | Dual-Band 2.4 GHz ISM & 5 GHz SMD Chip Antenna for Wi-Fi, Bluetooth, ZigBee, LTE, C-V2X
Product Overview
Demo Board: 3.1 x 1.6 x 1.2 mm
Peak Gain: -0.92 dBi
Max Efficiency: 35.99%
Compact low-profile SMD WiFi antenna for 2.4G/5G bands, designed for smartphones, tablets, laptops, IoT, and smart home devices. Supports OEM/ODM customization with OTA-tested RF performance, backed by ABOOSTY’s full R&D and manufacturing capabilities.

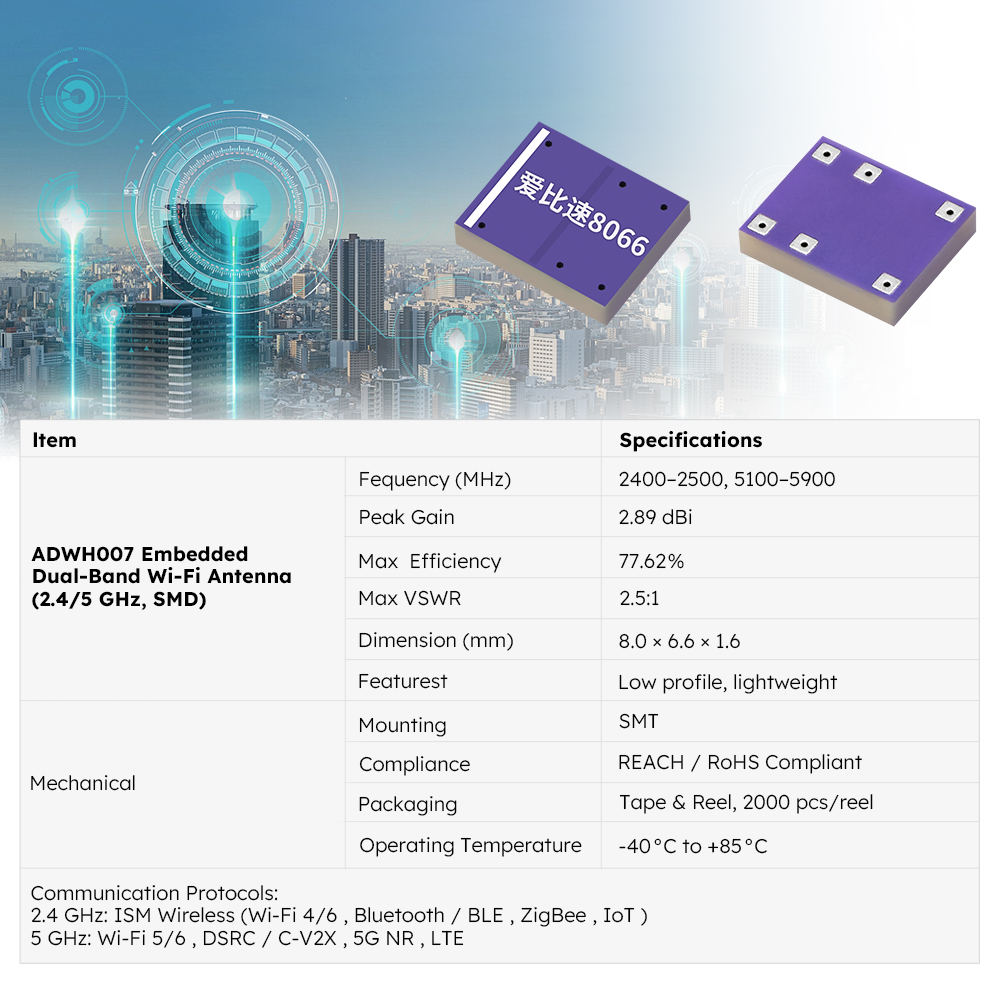

Operating Frequency: 2450±50 MHz

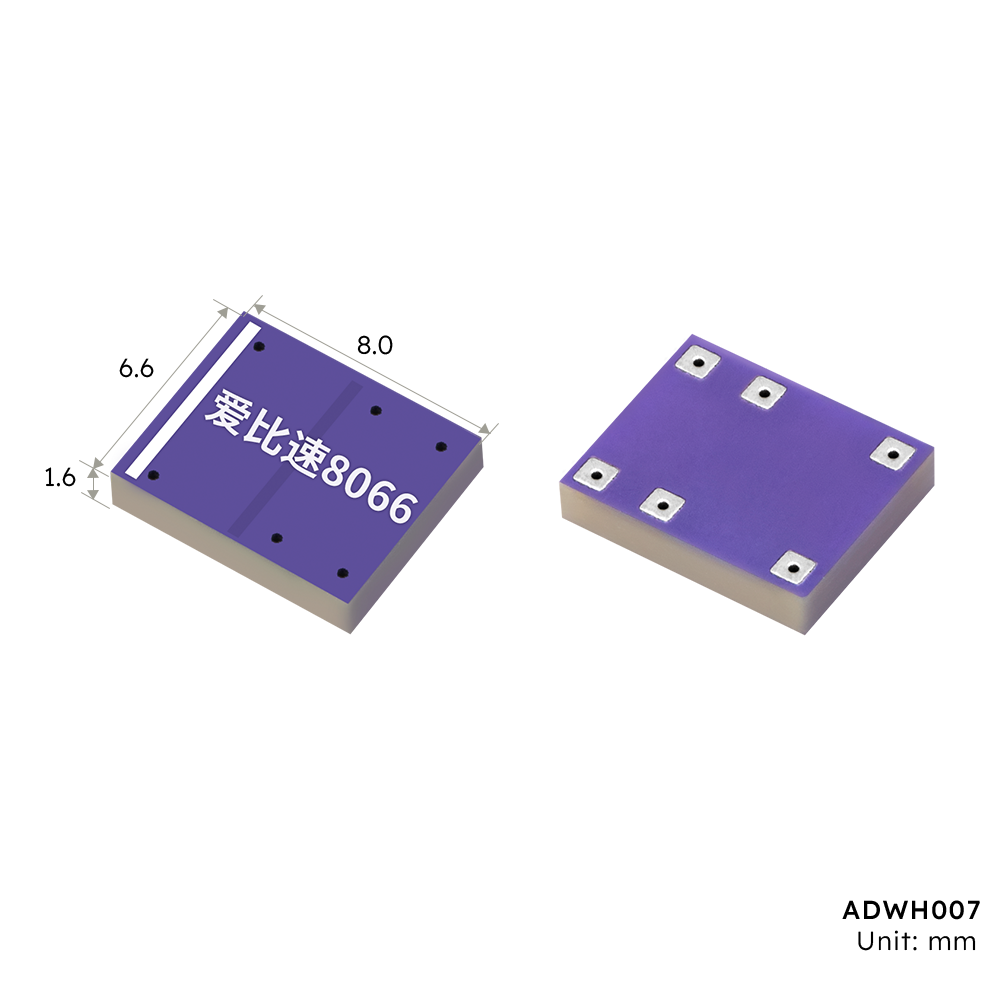

Dimensions: 8.0 x 6.6 x1.6 mm
Peak Gain
The ABOOSTY ADWH007 is a high-performance low-profile SMD antenna supporting 2.4G/5G WiFi bands. Its compact, lightweight design enables seamless integration into PCB layouts for smartphones, tablets, laptops, smart home systems, IoT devices, wearable electronics, E-health devices, WiFi routers, repeaters, asset tracking systems, POS terminals, automotive V2X communication, and smart city infrastructure.

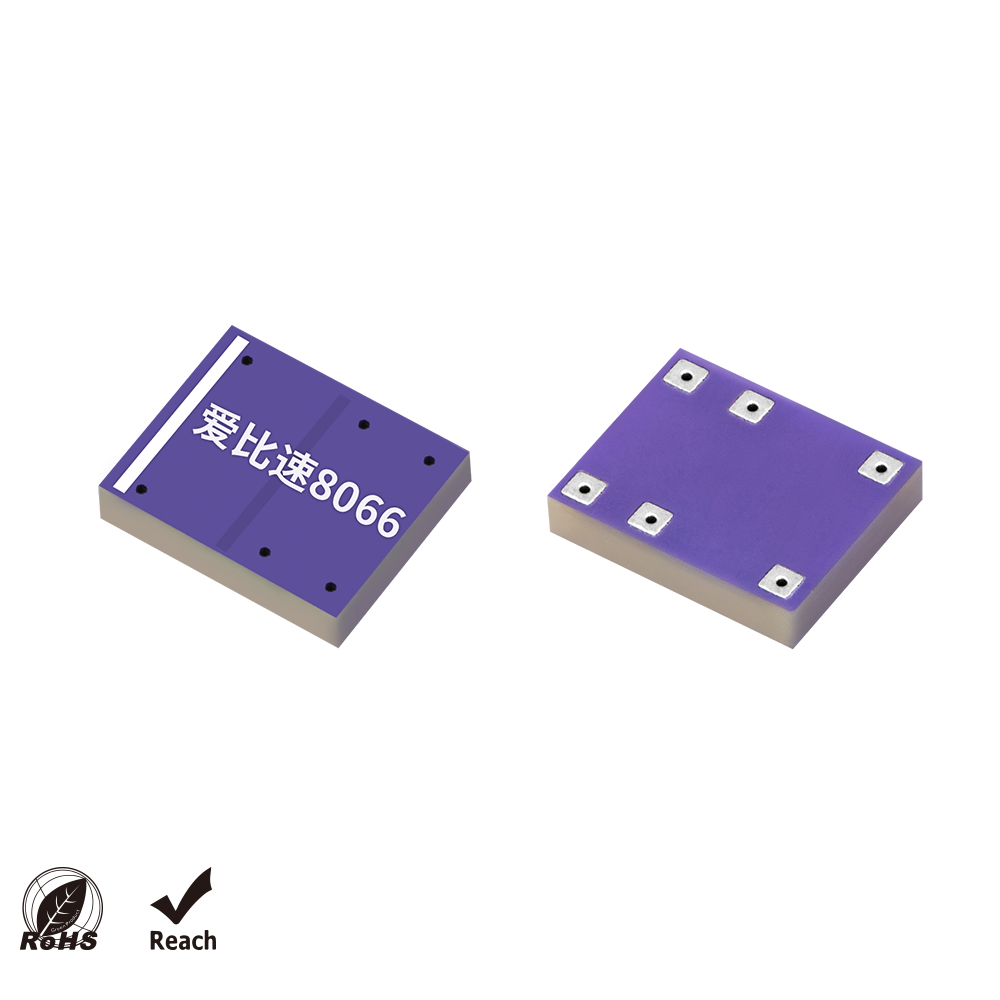

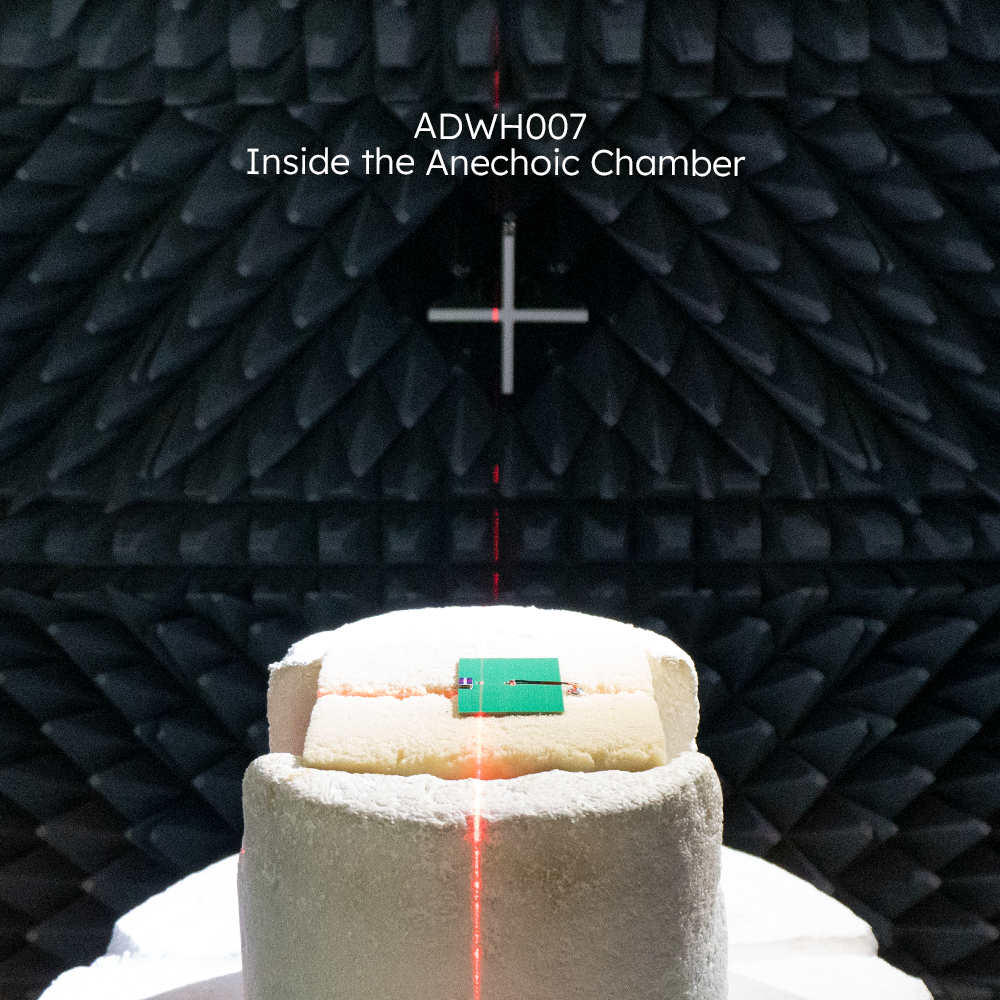

Engineered for reliability, ADWH007 is OTA-tested to ensure stable VSWR, peak gain, and input impedance. Operating temperature ranges from -40℃ to +85℃, with 3W power rating. Fully RoHS compliant, the antenna meets both industrial and consumer device standards. ABOOSTY offers OEM/ODM customization including size, packaging, and RF tuning, enabling rapid prototyping and fast time-to-market.
- Mobile & portable devices: Smartphones, tablets, laptops, wearable electronics
- Smart home & IoT: Security systems, smart locks, E-health monitoring devices
- Networking equipment: WiFi routers, access points, repeaters
- Commercial & logistics: Asset tracking, POS systems, retail IoT solutions
- Automotive communication: V2X car-to-car and car-to-infrastructure connectivity
- Smart city infrastructure: Public WiFi hotspots, environmental monitoring, smart lighting
