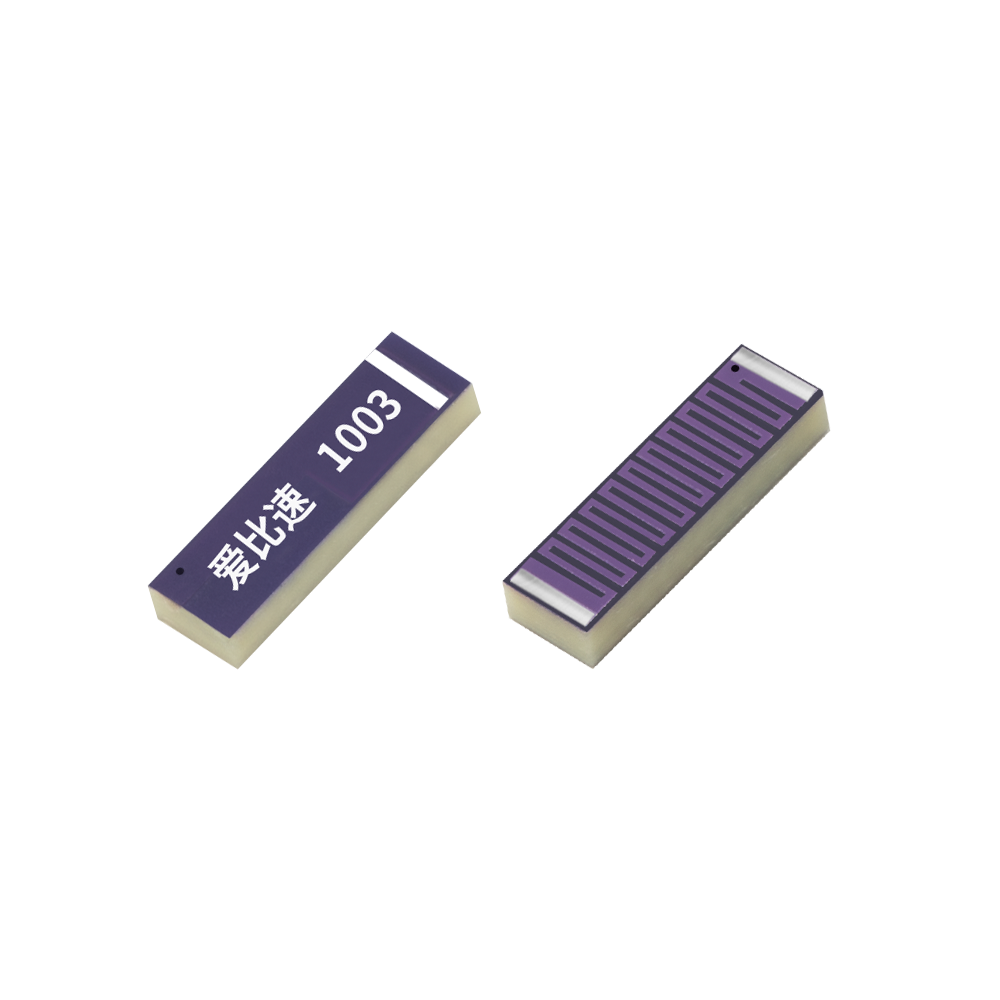

ADGP001 GNSS /GPS L1 B1 G1 SMD /Chip Antenna 10.0×3.0×1.6mm

GNSS/GPS

Embedded Antennas

Download

Datasheet

Buy Samples

Coming soon

Aboosty is ready to help you tackle various wireless issues.

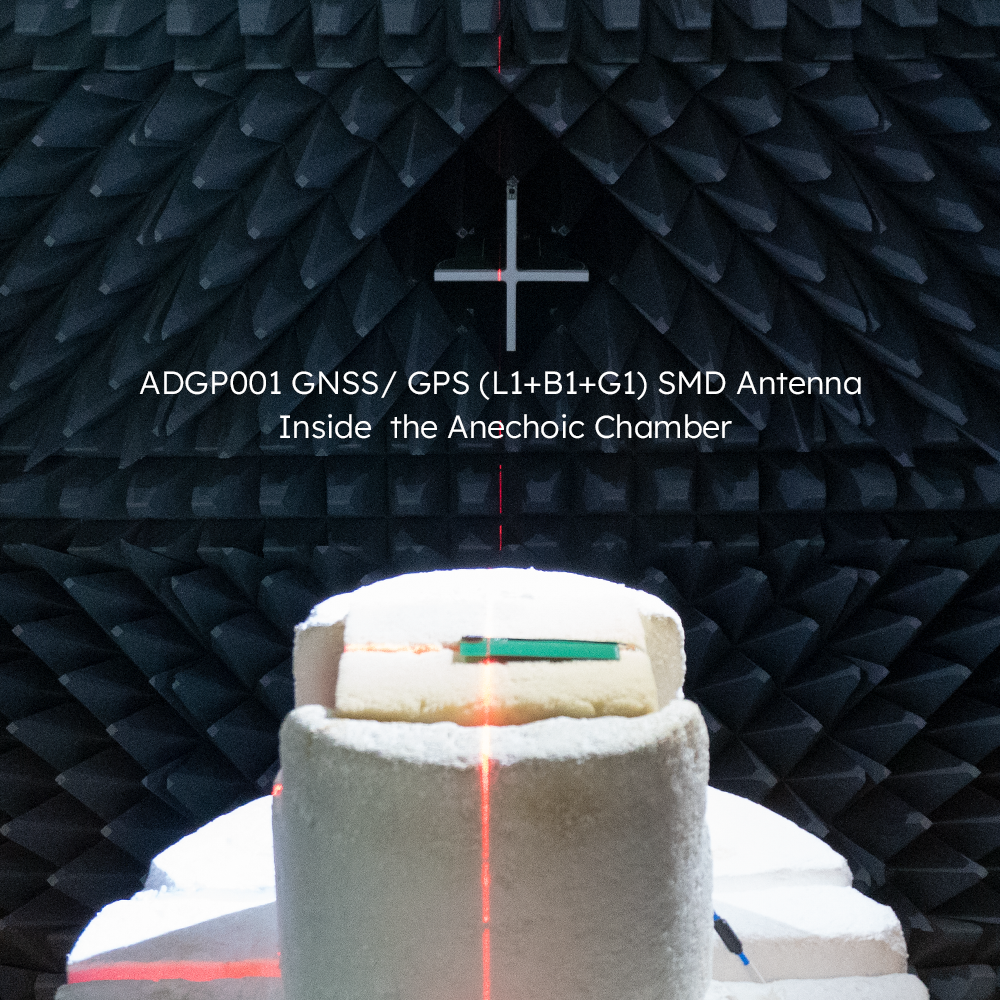

ADGP001 GNSS /GPS L1 B1 G1 SMD /Chip Antenna 10.0×3.0×1.6mm

SKU： ADGP001 分类： Internal Antennas, SMD Antennas 标签： 2G/3G LTE, 4G LTE, NB-IoT 品牌： ABOOSTY

Product Overview

Key Features

Description

Specification

Applications

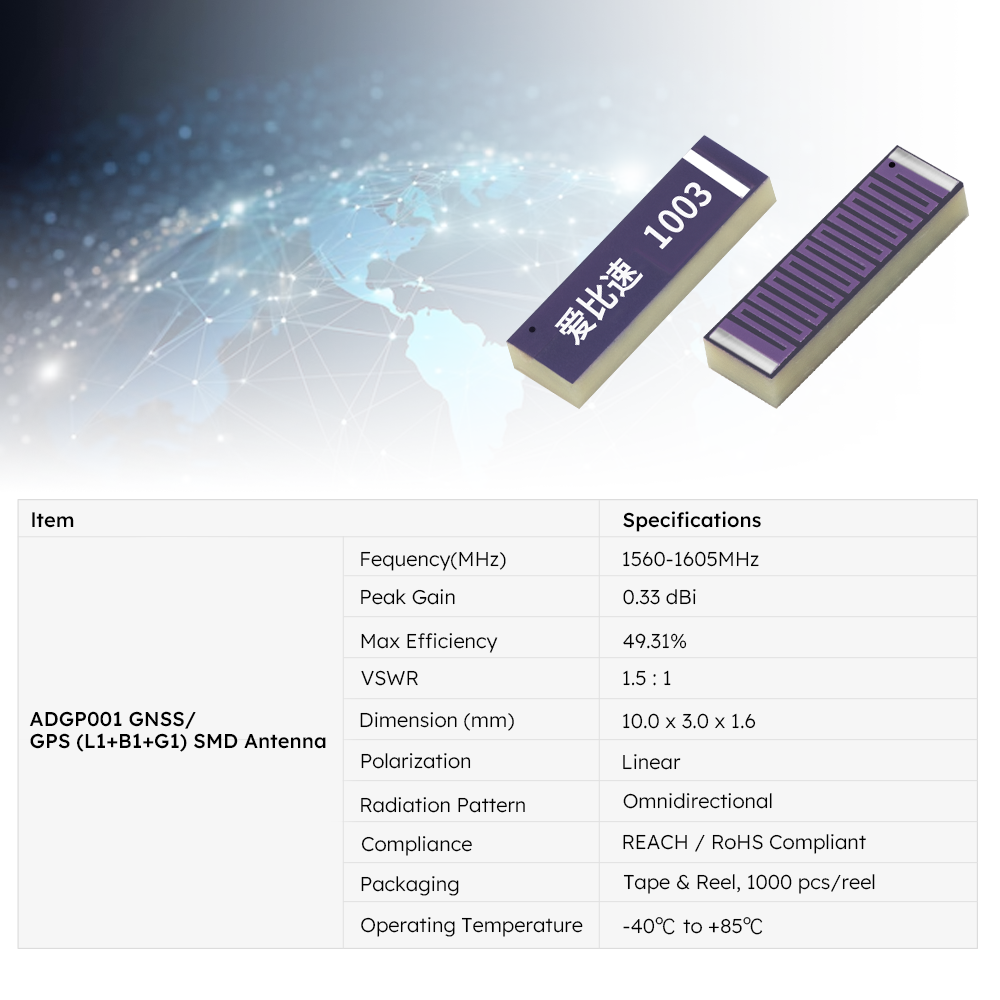

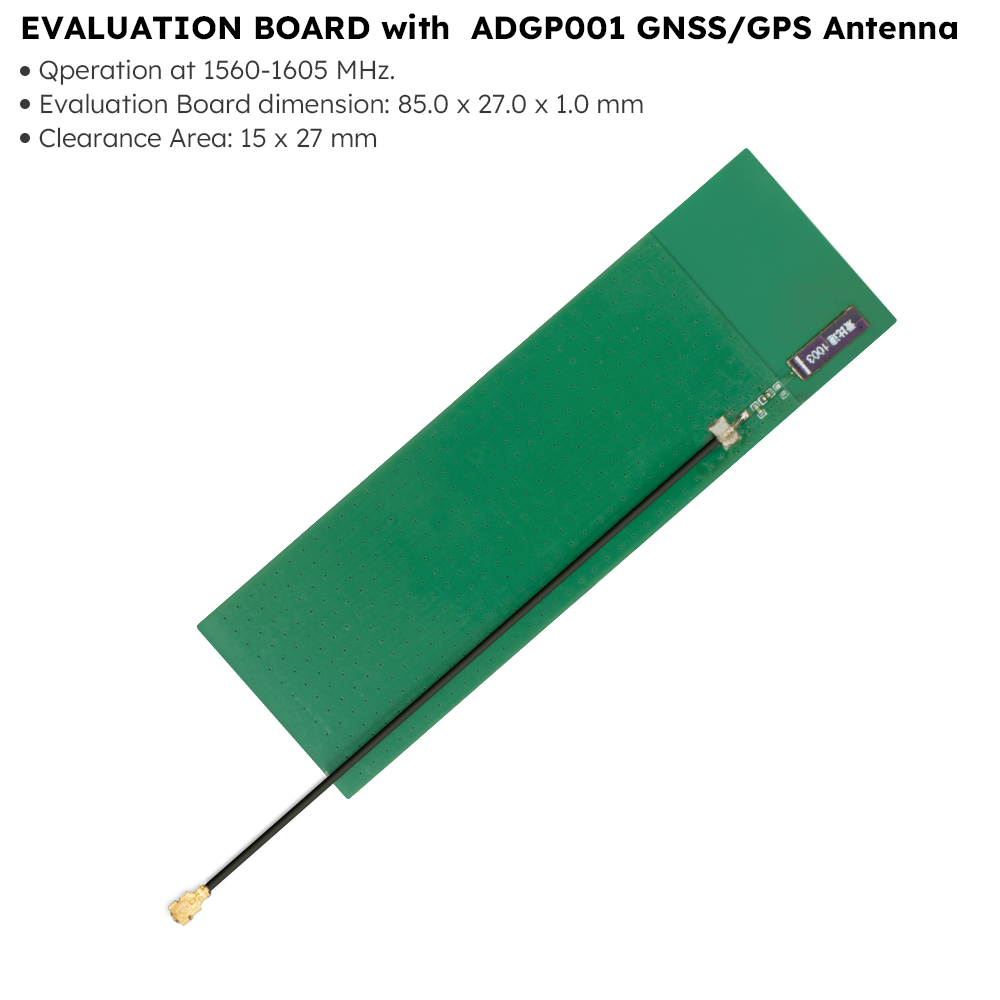

Demo Board: 10.0 x 3.0 x 1.6mm
Peak Gain: 0.33
Max Efficiency:49.31
Polarization Linear

Low Profile

Light Weight

Ground Plane Dependent

Easy to Integrate

Intended for SMD Mounting

Tape & Reel Packing

Reduced Cost and Time-to-Market

REACH/RoHS Compliant

Operating Frequency: 824-960 MHz 1710-2700 MHz
Dimensions: 8.0 x 3.0 x 1.0 mm

SBAS systems: WASS(L1/L5), EGNOSS(E1/E5a), SDCM(G1/G2/G3), SNAS(B1,B2a), GAGAN(L1/L5),
QZSS(L1/L5), KAZZ(L1/L5).

LABEL

VALUE

Certificates Acquired

Reach, RoHS Compliant

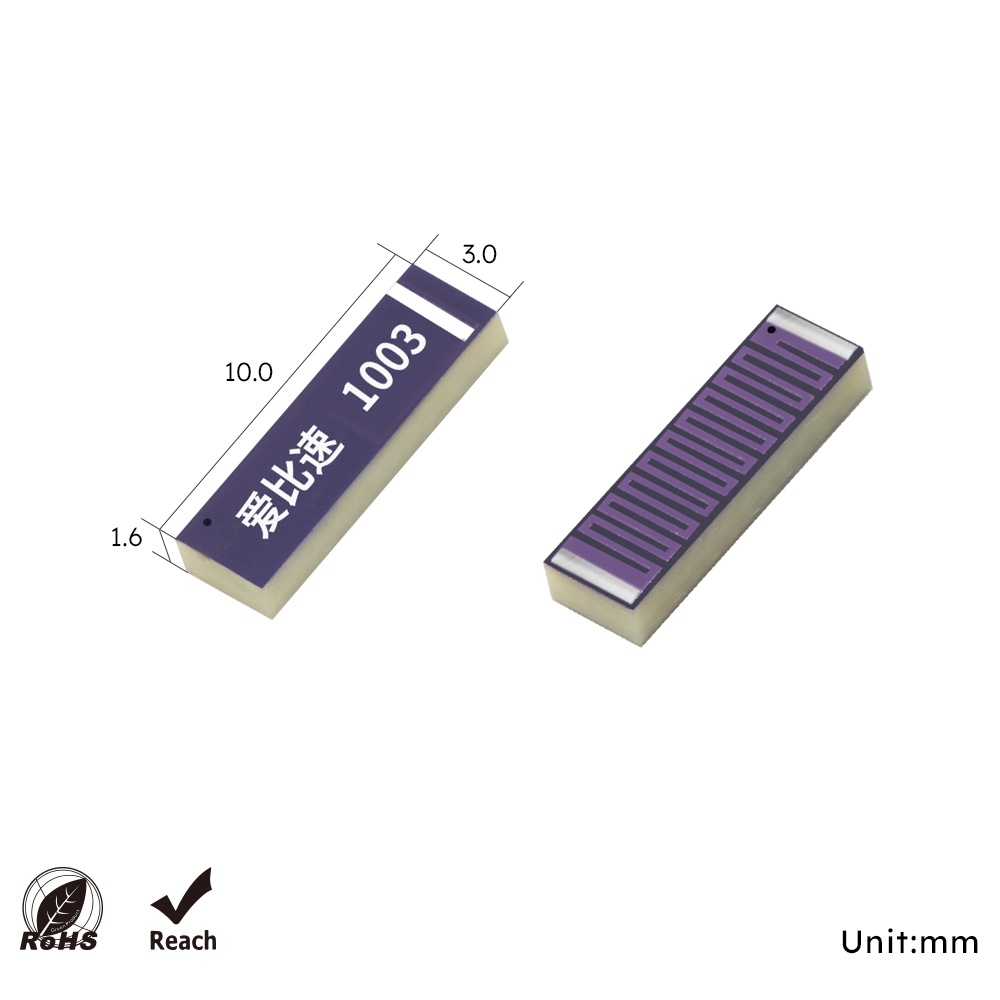

Length(mm)

10.0

Width(mm)

3.0

Height (mm)

1.6

Product Weight (g)

0.3

Freq. (MHz)

1550-1605

Technology Type

GPS/BDS/GLONASS, 2.4G WIFI

Frequency Bands

L1, E1, B1

Operating Temperature (℃)

-40°C to +85°C

Markets

Transportation, Smart Industrial, Smart Cities, Connected Health, Mobility and Infrastructure, Mobile Communication, Public Safety, Others

Other Attributes

Compact

Antenna Type

Passive GNSS

Radiation Pattern

Omnidirectional

Polarity

Linear

Max Effi. (%)

52.8

Peak Gain

3.3 dBi

VSWR

1.5:1

Impedance (Ω)

Ingress/Impact

N/A

Termination Style

PCB

Antenna Connector Type

Solder

Cable Type

N/A

Mechanical Style

Chip

Mounting Style

SMT/SMD

Customization Option

Logo, Mounting Method, Other Customization, Frequency, Logo

Satellite Navigation Receivers
Geodetic Surveying and Mapping
Channel Surveying and Mapping
M2M Remote Technology/Monitoring
Precision Agriculture
Marine Surveying
Asset and Fleet Tracking
Oil, Gas, and Mining Industries
Hand-held/Portable Devices

Part Number

User Story

Model

Description

Note

ADCH002

ADGP001 1560-1605 MHz GNSS GPS L1 B1 G1 SMD /Chip Antenna 10.0×3.0×1.6mm

M04-0103140R0A

Frequency customization supported

DELIVERY INFORMATION

Antennas & GPS modules, RF Connectors / Cables

Antennas & GPS modules, RF Connectors / Cables - estimated delivery time for samples is 5-7 days

Evaluation boards

Evaluation boards - estimated delivery time for samples is 7-14 days

Delivery & Returns >
